13BX60RG544 (LX 425) - Toro Lawn Tractor (SN: 1E237H10145 & Above) (2007) AIR INTAKE AND FLITRATION ASSEMBLY KOHLER SV720-0011 Parts Diagram

Lawn Tractor

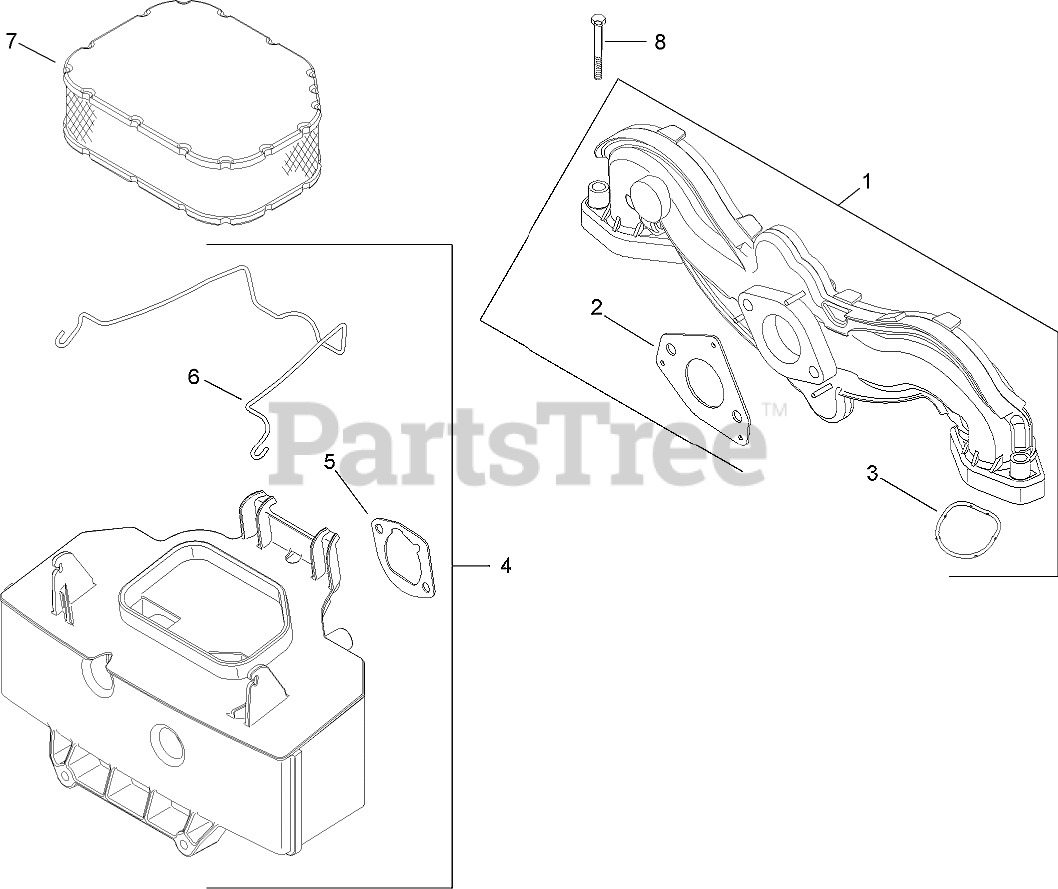

AIR INTAKE AND FLITRATION ASSEMBLY KOHLER SV720-0011 Parts Diagram

  • Title

1

Toro 24 164 51S

Manifold-Intake (Includes2-3)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 24 041 52S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro 24 153 27S

O Ring-Intake Port

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro 32 094 03S

Base-Air Cleaner (Includes5-6)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 24 041 14S

Gasket-Air Cleaner Base

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 32 344 02S

Latch-Air Cleaner Element

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 98019

Element-Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, Qty 5

0

7

Toro 98019

Element-Air Cleaner

Note: Obtain from your local Toro dealer

$23.99

$

In Stock, Qty 5

0

8

Toro M651040S

Screw-Hex Flange (M6x1.0x40)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable
