13BT604H755 - Yard-Man Lawn Tractor (2005) (Walmart) Deck Assembly H Parts Diagram

Lawn Tractor

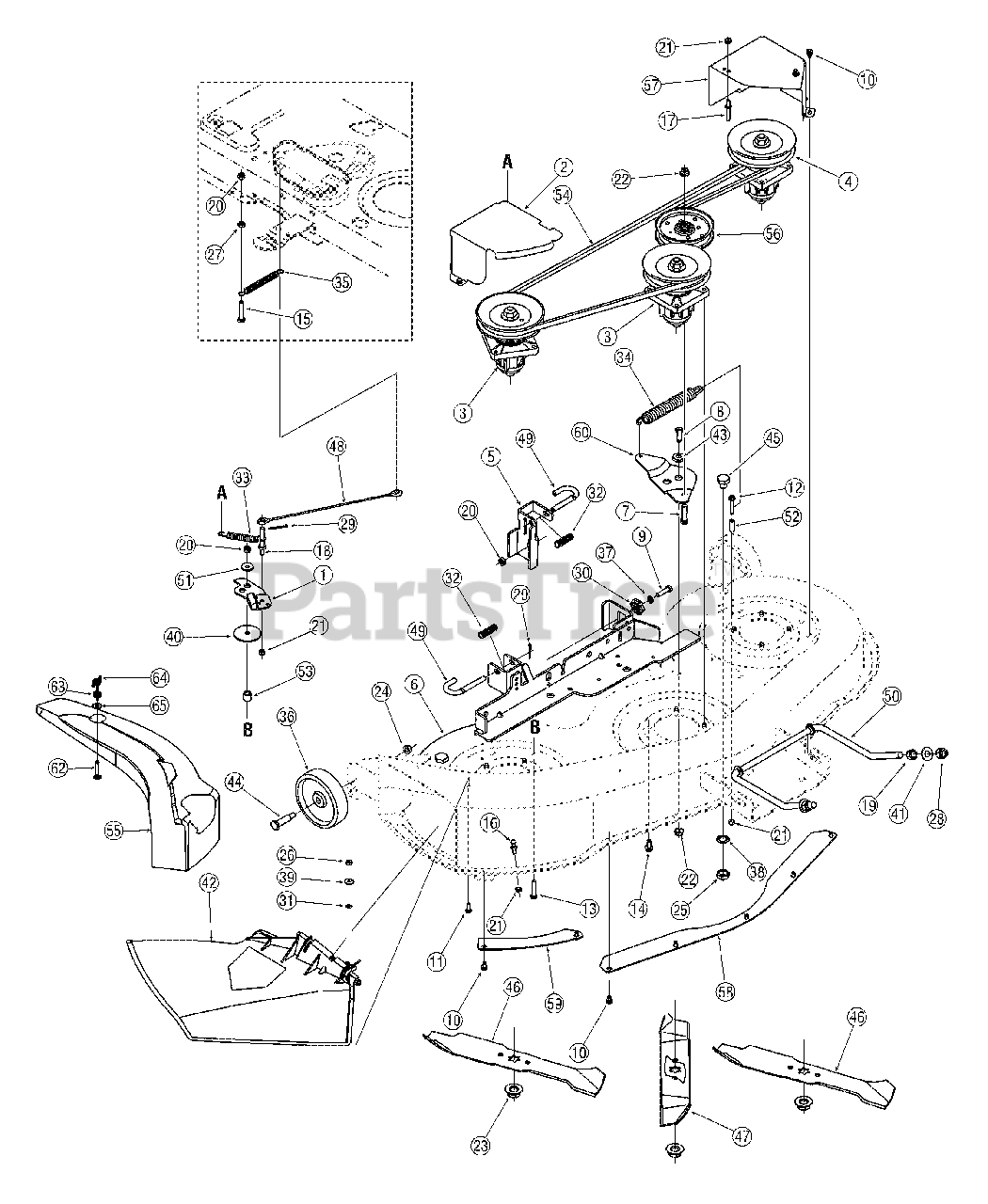

Deck Assembly H Parts Diagram

  • Title

1

MTD 17116

Brake Assembly, Deck
(Superseded to 97116)

$52.99

$

In Stock, only 1 left!

0

2

MTD 17258D

RH Belt Cover, Deck 46"
(Superseded to 17258E)

Variations

MTD 17258D-0483

Deck Belt Cover, 46" Gray - CHARCOAL GRAY (0483)

$54.99

$

Usually ships in 3-6 days

0

MTD 17258D-0637

Deck Belt Cover, 46" Black - POWDER BLACK (0637)

$54.99

$

In Stock, only 2 left!

0

MTD 17258D-0648

Deck Belt Cover, 46" Black - TECH GRAY (0648)

$54.99

$

In Stock, only 2 left!

0

MTD 17258D-4008

COVER:BELT:DECK 46 - WINE RED (4008)

$54.99

$

In Stock, only 2 left!

0

MTD 17258D-0665

COVER:BELT:DECK 46 - YARDMAN GREEN (0665)

$54.99

$

In Stock, only 2 left!

0

MTD 17258D-0691

COVER:BELT:DECK 46 - BLACK JACK (0691)

$54.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 618-0240A

Spindle Assembly, 5.00 Dia.
(Superseded to 918-0240C)

$136.99

$

In Stock, only 3 left!

0

4

MTD 618-04134B

Spindle Ass'y, Double Pulley
(Superseded to 918-04134D)

$164.99

$

In Stock, only 1 left!

0

5

MTD 683-0254B

Hanger Bracket Assembly

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

6

MTD 683-04104A

Deck Weldment
(Superseded to 983-04104A)

Variations

MTD 683-04104A-0606

DECK ASM 46" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 683-04104A-0637

DECK ASM 46" - POWDER BLACK (0637)

$

$

Not available

MTD 683-04104A-0638

DECK ASM 46" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-04104A-0650

DECK ASM 46" - RED METALLIC (0650)

$

$

Not available

MTD 683-04104A-0665

DECK ASM 46" - YARDMAN GREEN (0665)

$

$

Not available

$1031.99

$

Usually ships in 3-6 days

0

7

MTD 710-0344

Screw, 3/8-16, 1.50, Gr5

$5.99

$

In Stock, Qty 11

0

8

MTD 710-0514

Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 19

0

10

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3015

Screw, 1/4-20 x.75, Gr5

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0778

Screw, 1/4-20, 1.500

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0805

Screw, 5/16-18, 1.50, Gr5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-1260A

Screw, Ld, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-3180

Screw, 5/16-18, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

16

MTD 711-04069

Pin, Grass catcher, 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

17

MTD 711-0993

Belt Guard Pin 1/4 Dia x 1.43
(Superseded to 911-0993)

$4.49

$

In Stock, Qty 14

0

18

MTD 711-1554

Pin, 1/4-20, 3/8 x 2.0

$10.99

$

Usually ships in 3-6 days

0

19

MTD 712-0206

Nut, Hex, 1/2-13, Gr5

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-04063

Nut, Flange Lock, 5/16-18, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-04064

Nut, Flange Lock, 1/4-20, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04065

Nut, Flange Lock, 3/8-16, Gr F, Nylon

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

24

MTD 712-0431

Nut, Flange Lock, 3/8-16, Gr F
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

25

MTD 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

26

MTD 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 17

0

27

MTD 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-3083

Nut, Hex Lock, 1/2-13, Gr8, Nylon

$4.49

$

In Stock, Qty 20+

0

29

MTD 714-0470

Pin, Cot, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

30

MTD 717-04074

Adjustment Gear, Deck
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 9

0

31

MTD 726-0233

Nut, Push,.25 ID x.50 OD

$4.49

$

In Stock, Qty 20+

0

32

MTD 732-0306A

Spring, Compression,.531 OD x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

33

MTD 732-0429A

Spring, Extension,.50 Dia x 3.97
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

34

MTD 732-0594A

Spring, Extension,.91 Dia x 7.33
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

35

MTD 732-04197

Spring, Extension,.68 OD x 5.00 Lg

$6.99

$

In Stock, Qty 12

0

36

MTD 734-0973

Wheel, Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

37

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

MTD 736-0225

Washer, Lock, 5/8

$4.49

$

In Stock, only 2 left!

0

39

MTD 736-0270

Washer, Bell,.265 x.75 x.062

$3.99

$

In Stock, Qty 20+

0

40

MTD 736-0418A

Washer, Flat,.34 x 2.25 x.10

$10.99

$

Usually ships in 3-6 days

0

41

MTD 736-3084

Washer, Flat,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

42

MTD 731-1032B

Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 5

0

43

MTD 738-0347

Spacer, Shoulder,.625 ID x.169
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

44

MTD 738-0373

Spacer, Shoulder,.498 x 1.53, 3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

45

MTD 738-04146

Plug, Screw, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

46

MTD 742-0611A

Blade, 16.28", Star 3-in-One
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

47

MTD 742-0612A

Blade, 14.88", Star 3-in-One
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 13

0

48

MTD 746-1107

Cable, 12.00"

$15.99

$

In Stock, only 3 left!

0

49

MTD 747-1116

Rod, Deck Release

$12.99

$

In Stock, Qty 6

0

50

MTD 747-1130B

Rod, Deck

$41.99

$

In Stock, only 3 left!

0

51

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

52

MTD 750-0566A

Spacer,.260 x.372 x 1.030

$9.99

$

In Stock, only 1 left!

0

53

MTD 750-1320

Spacer,.375 x.63 x.595

$

$

Not available

54

MTD 754-0349

Belt, V-Type, Poly
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

55

MTD 731-1636

Mulch Plug

$149.99

$

In Stock, only 1 left!

0

56

MTD 756-04129

Pulley, Idler, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

57

MTD 783-1348B

Belt Cover, LH
(Superseded to 783-1348D)

Variations

MTD 783-1348B-0483

Belt Cover, LH 46" Gray - CHARCOAL GRAY (0483)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348B-0637

Belt Cover, LH 46" - POWDER BLACK (0637)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348B-0650

Belt Cover, LH 46" - RED METALLIC (0650)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348B-0665

Belt Cover, LH 46" - YARDMAN GREEN (0665)

$50.99

$

In Stock, only 3 left!

0

MTD 783-1348B-0691

Belt Cover, LH 46" - BLACK JACK (0691)

$50.99

$

In Stock, only 3 left!

0

$46.99

$

Usually ships in 3-6 days

0

58

MTD 783-0141

Deck Skirt, Center

Variations

MTD 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

MTD 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

59

MTD 783-0142

Deck Skirt, RH
(Superseded to 783-0142-0637)

Variations

MTD 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

60

MTD 783-04641

Bracket, Idler
(Superseded to 783-04641A-0637)

Variations

MTD 783-04641-0637

Idler Bracket, 46" - POWDER BLACK (0637)

$

$

Not available

MTD 783-04641-4008

BRACKET-IDLER:46" - WINE RED (4008)

$

$

Not available

$

$

61

N/A

Stop, Chute

$

$

Not available

62

MTD 710-0578

Screw, 1/4-20 x 1.500

$4.49

$

Usually ships in 3-6 days

0

63

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

64

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

65

MTD 736-0173

Flat Washer,.28 x.74 x.063

$4.49

$

In Stock, Qty 20+

0
