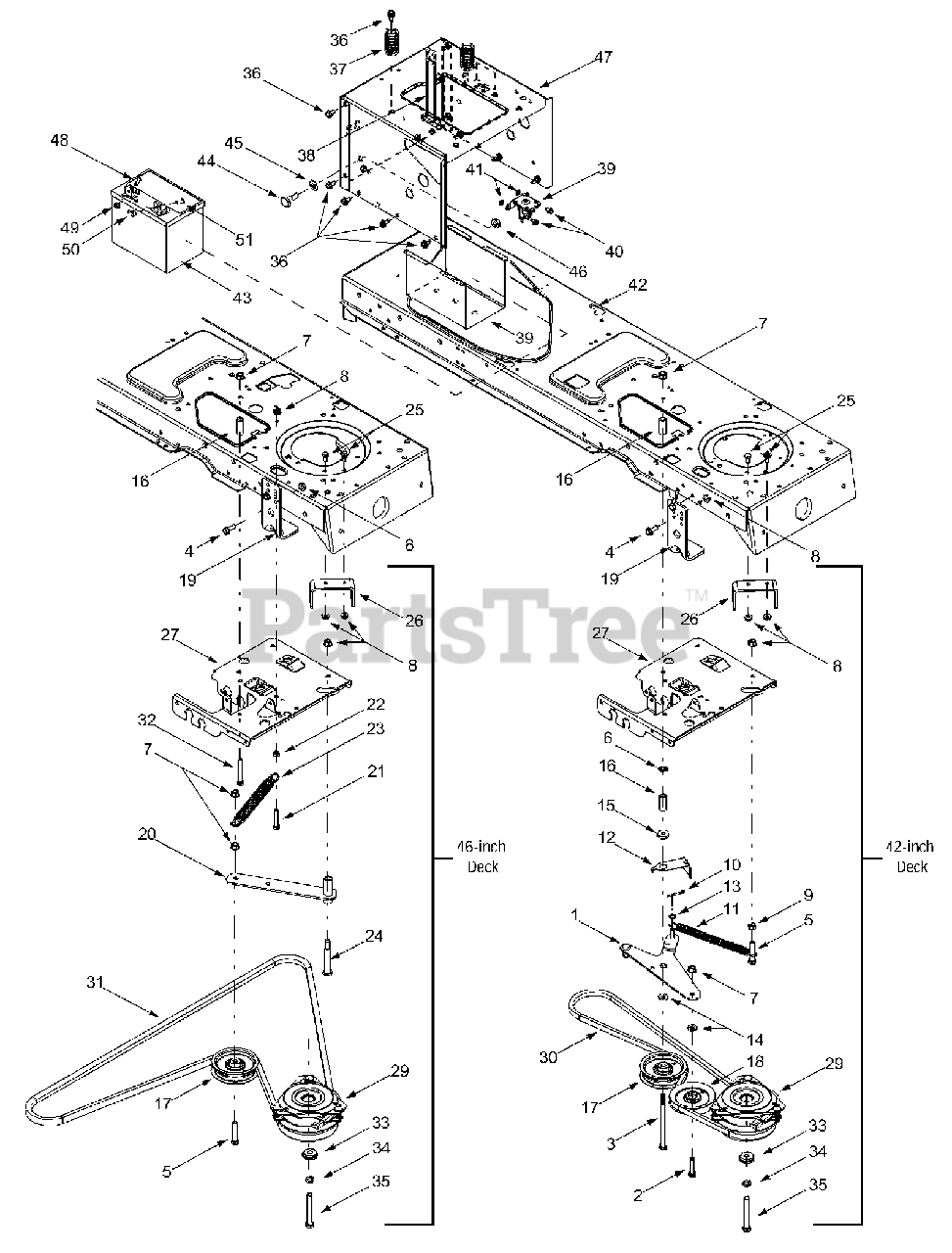

13BI618H205 - Ranch King Lawn Tractor (2002) PTO Electric, Battery, Frame Parts Diagram

Lawn Tractor

PTO Electric, Battery, Frame Parts Diagram

  • Title

1

MTD 683-0450

Engagement Plate Assembly

Variations

MTD 683-0450-0637

PLATE ASM-ENGAGE - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0520

Hex Cap Screw, 3/8-16 x 1.5

$4.49

$

In Stock, Qty 7

0

3

MTD 710-0831

Hex Cap Screw, 3/8-16 x 5.5

$

$

Not available

4

MTD 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 9

0

5

MTD 710-3144

Hex Cap Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 12

0

6

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 9

0

7

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

11

MTD 732-0384

Extension Spring, .62 x 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, only 4 left!

0

12

MTD 732-0991A

Belt Guard

$14.99

$

Usually ships in 3-6 days

0

13

MTD 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

14

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 2 left!

0

15

MTD 738-0372A

Shoulder Spacer, .380
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

16

MTD 748-0415A

Spacer, 3/8 x 1.54
(Superseded to 748-0415B)

$7.49

$

In Stock, Qty 10

0

17

MTD 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

18

MTD 756-1208

Idler Pulley, 4.0

$35.99

$

In Stock, Qty 5

0

19

MTD 783-0891B

Deck Stop

Variations

MTD 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0498

BRACKET-DECK UP STOP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

MTD 783-0891B-0716

BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

20

MTD 683-0297

Idler Bracket Assembly

Variations

MTD 683-0297-0637

Idler Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 15

0

22

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

23

MTD 732-0978

Extension Spring, .62 x 5.62

$10.99

$

In Stock, only 2 left!

0

24

MTD 738-3056

Shoulder Screw, 1/2 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

25

MTD 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

26

MTD 783-1003

Electric Clutch Anti-rotation Bracket
(Superseded to 783-1003-0637)

Variations

MTD 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 783-0653D

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653D-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

?28

MTD 683-0314

Frame Assembly

Variations

MTD 683-0314-0650

No Longer Available FRAME ASM - RED METALLIC (0650)

$

$

Not available

MTD 683-0314-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

MTD 717-1708

Electric PTO Clutch
(Superseded to 917-1708)

$621.99

$

Usually ships in 3-6 days

0

30

MTD 754-0497

PTO Belt (Models w/ 42-inch deck)
(Superseded to 954-0497)

$45.99

$

In Stock, Qty 19

0

31

MTD 754-0474

PTO Belt (Models w/ 46-inch deck)
(Superseded to 954-0474)

$80.99

$

In Stock, Qty 8

0

32

MTD 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

33

MTD 738-0785

Shoulder Spacer, 1.38 x .445 x .36
(Superseded to 938-0785)

$25.99

$

In Stock, only 1 left!

0

34

MTD 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, Qty 5

0

35

MTD 710-3157

Hex Cap Screw, 7/16-20 x 3.25 (Grade 5)
(Superseded to 710-3157A)

$10.99

$

In Stock, only 2 left!

0

36

MTD 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

37

MTD 732-3080

Compression Spring, 1.28 x 3.5
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 12

0

38

MTD 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

39

MTD 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

40

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

41

MTD 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

42

MTD 683-0304

Lower Frame Assembly

Variations

MTD 683-0304-0637

No Longer Available LOWER FRAM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0304-0650

No Longer Available LOWER FRAM - RED METALLIC (0650)

$

$

Not available

MTD 683-0304-0665

No Longer Available LOWER FRAM - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0304-0691

No Longer Available LOWER FRAM - BLACK JACK (0691)

$

$

Not available

MTD 683-0304-0716

No Longer Available LOWER FRAM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

43

MTD 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

44

MTD 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

45

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, only 2 left!

0

46

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 17

0

47

MTD 783-1031A

Hitch Plate

Variations

MTD 783-1031A-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

MTD 783-1031A-0637

Hitch Plate - POWDER BLACK (0637)

$

$

Not available

MTD 783-1031A-0650

No Longer Available HITCH PLAT - RED METALLIC (0650)

$

$

Not available

MTD 783-1031A-0665

No Longer Available HITCH PLAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-1031A-0716

No Longer Available HITCH PLAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

48

MTD 710-0703

Hex Cap Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

49

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

50

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

51

MTD 738-1132

Shoulder Screw, 1/4-20, .25 x .15

$5.49

$

In Stock, only 2 left!

0
