13BH660F016 - Statesman Lawn Tractor (2001) (Southern States) Hood Style "0" Parts Diagram

Lawn Tractor

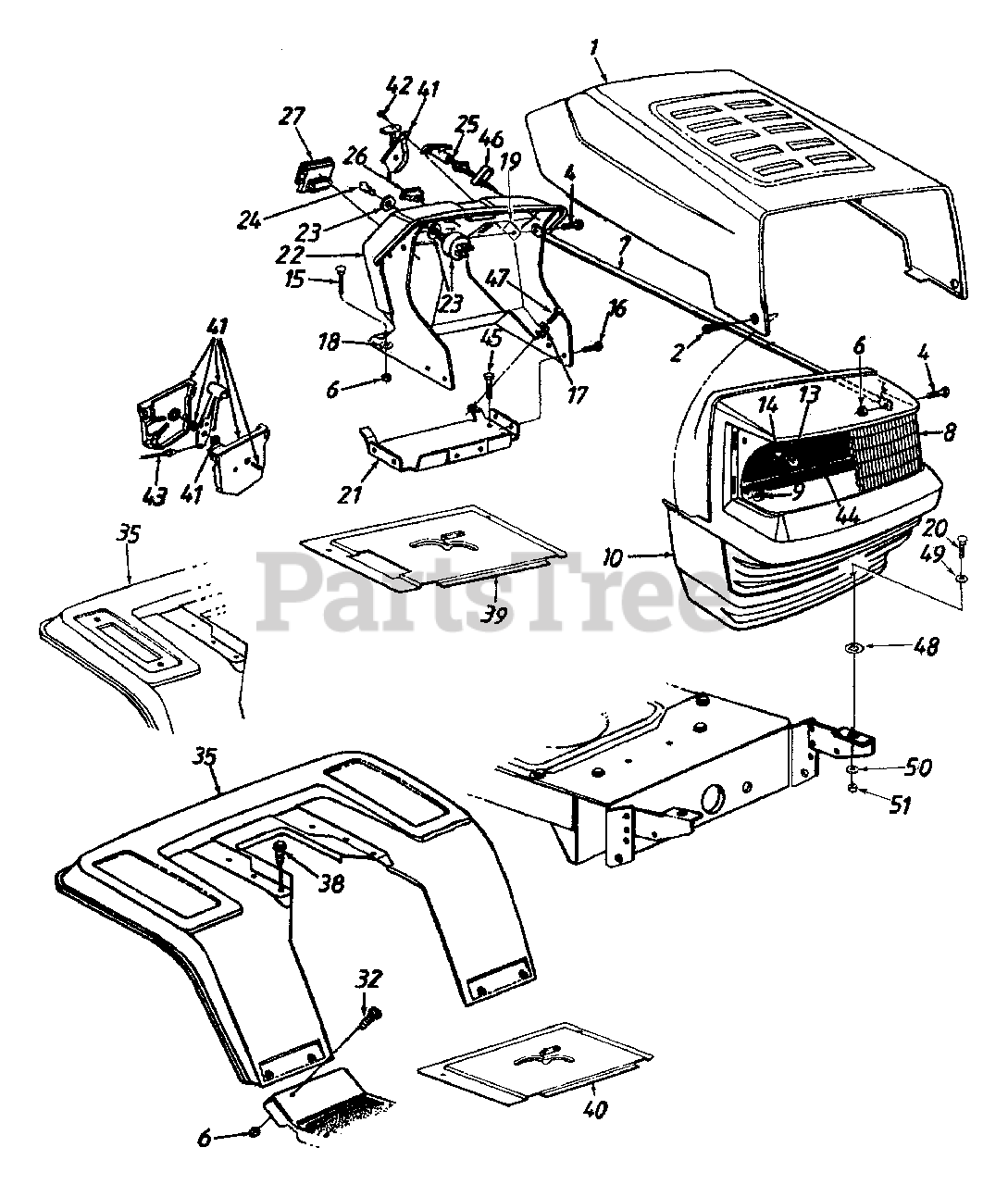

Hood Style "0" Parts Diagram

  • Title

1

MTD 783-0250

Hood

Variations

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

2

MTD 738-0952A

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 8

0

4

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-3006

Hex Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 17

0

7

MTD 749-0812

Grille Support Rod

Variations

MTD 749-0812-0637

Grille Support Rod - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

MTD 749-0812-0648

Grille Support Rod - TECH GRAY (0648)

$20.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

8

MTD 731-1099A

Headlight Lens (w/o Logo)
(Superseded to 931-1099A)

$92.99

$

Usually ships in 3-6 days

0

MTD 731-1767

Headlight Lens (w/ Logo)
(Superseded to 931-1099A)

$92.99

$

Usually ships in 3-6 days

0

9

MTD 712-3027

Flange L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

MTD 731-1097E

Grille
(Superseded to 931-1097G)

$192.99

$

Usually ships in 3-6 days

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

14

MTD 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

15

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0599

Hex Washer Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

21

MTD 17632B

Gas Tank Support Brkt.

Variations

MTD 17632B-0637

Gas Tank Support Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 731-2515

Dash w/Ammeter Hole

$

$

Not available

MTD 731-1337A

Dash w/o Ammeter Hole

$111.99

$

Usually ships in 3-6 days

0

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

MTD 746-0616A

Choke Control 23" Lg.
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

MTD 746-0614A

Choke Control 38" Lg.

$24.99

$

In Stock, only 1 left!

0

MTD 746-0720

Choke Control 20" Lg.

$

$

Not available

MTD 746-3021

Choke Control 29" Lg.

$26.99

$

Usually ships in 3-6 days

0

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

32

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

?34

MTD 17870A

Fender
(Superseded to 17870C)

Variations

MTD 17870A-0480

FENDER-RR W/FRAME - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17870A-0483

FENDER-RR W/FRAME - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17870A-0498

FENDER-RR W/FRAME - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17870A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17870A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17870A-0638

FENDER-RR W/FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17870A-0640

No Longer Available FENDER - CO-OP GREEN (0640)

$

$

Not available

MTD 17870A-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17870A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17870A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17870A-0663

No Longer Available FENDER - CAYMEN GREEN (0663)

$

$

Not available

MTD 17870A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17870A-0667

FENDER-RR W/FRAME - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17870A-0668

No Longer Available FENDER - MOSS GREEN (0668)

$

$

Not available

MTD 17870A-0674

No Longer Available FENDER - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17870A-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17870A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17870A-0692

No Longer Available FENDER - AGWAY BLUE (0692)

$

$

Not available

MTD 17870A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

35

MTD 17871B

Fender w/Cutout

Variations

MTD 17871B-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17871B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17871B-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17871B-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17871B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17871B-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17871B-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17871B-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 17871B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17871B-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 17871B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17871B-0667

No Longer Available FENDER-W/C - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17871B-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17871B-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17871B-0687

No Longer Available FENDER-RR - PINE GREEN (0687)

$

$

Not available

MTD 17871B-0691

No Longer Available FENDER-REA - BLACK JACK (0691)

$

$

Not available

MTD 17871B-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 17871B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

38

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x

$4.49

$

In Stock, Qty 20+

0

39

MTD 17954B

Shift Cover w/Cutout
(Superseded to 17954B-0637)

Variations

MTD 17954B-0637

COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 17286B

Shift Cover
(Superseded to 17286B-0637)

Variations

MTD 17286B-0637

Shift Cover - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

41

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr.#10 x .5"

$4.49

$

In Stock, Qty 12

0

43

MTD 746-0776

Throttle Control Wire 18.5" Lg.
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 8

0

MTD 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

In Stock, Qty 6

0

MTD 746-0638

Throttle Control Wire 22" Lg.
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 8

0

44

MTD 777-9206

Grille Reflector Label
(Superseded to 777X40318)

$

$

Not available

45

MTD 710-0603

Hex Washer Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

46

MTD 17782

Choke Retainer

$

$

Not available

47

MTD 710-0642

Hex TT Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

48

MTD 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

49

MTD 736-3078

Fl-Wash. .34" I.D. x 1"Lg.

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

MTD 629-0309

Headlight Harness
(Superseded to 929-0469B)

Note: (Not Shown)

$55.99

$

Usually ships in 3-6 days

0

MTD 751-0302

Muffler (Single Cylinder Engines)
(Superseded to 951-0302)

Note: 10.5, 11.5, 12, 12.5 & 13 H.F B&S Engine

$

$

Not available

MTD 712-0250

Conduit L-Nut

Note: Mounting Hardware; 10.5, 11.5, 12, 12.5 & 13 H.F B&S Engine

$

$

Not available
