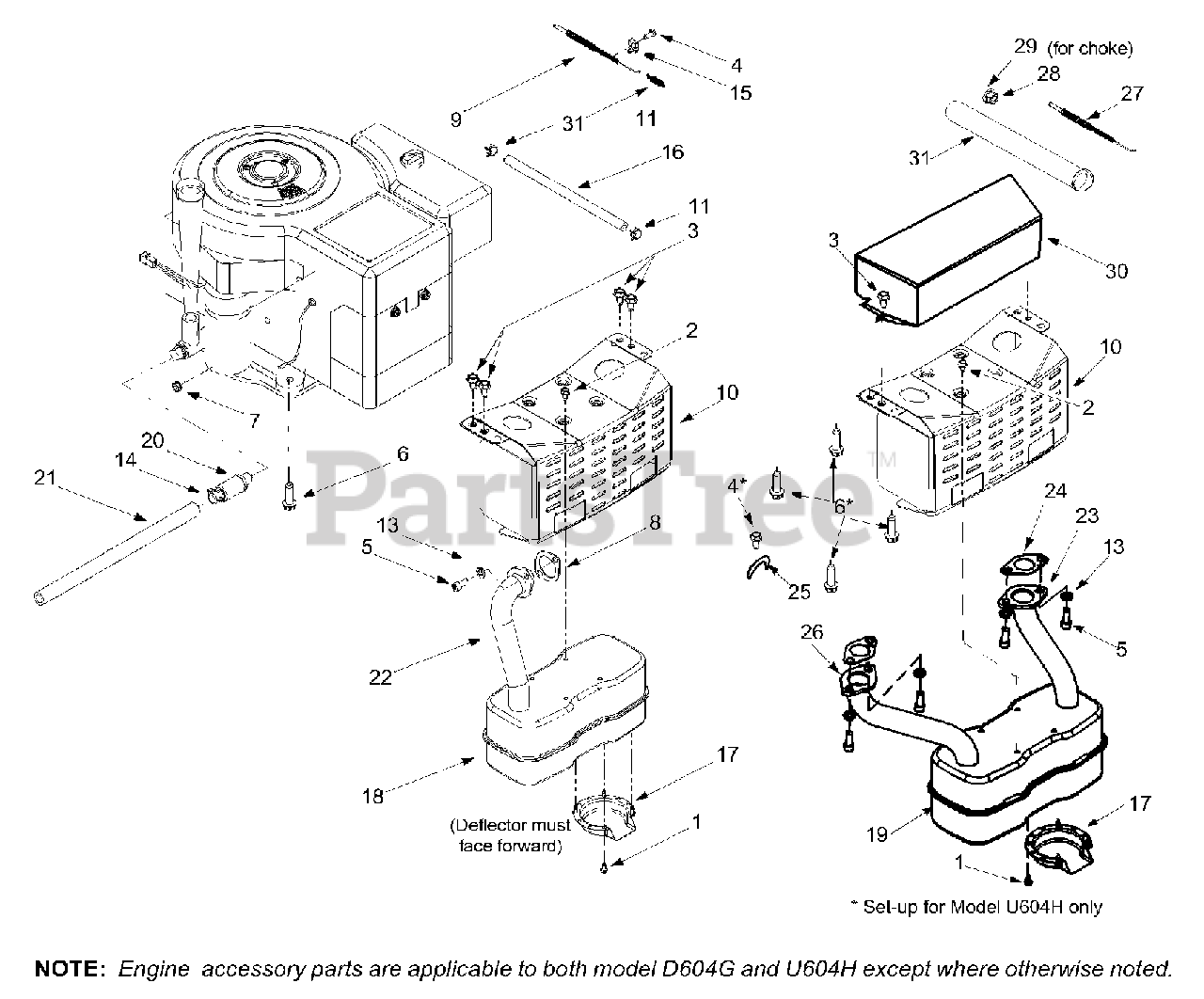

13BD604G401 - Yard-Man Lawn Tractor (2002) Engine Accessories Parts Diagram

Lawn Tractor

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

Screw, #10-32 x .625 (Model D604G)

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Cap Screw, (Model D604G)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw (Model D604G)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0271

Sems Nut, 1/4-20 (Model D604G)

$4.49

$

In Stock, Qty 19

0

8

MTD 721-0208

Exhaust Gasket (Model D604G)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

9

MTD 746-1084

Throttle Cable (Model D604G)
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

10

MTD 783-0615B

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

11

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

?12

MTD 732-0966

Extension Spring, 1.25 (Model D604G)

$

$

Not available

13

MTD 736-0119

Lock Washer, 5/16 (Model D604G)
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

15

MTD 751B213146

Casing Clamp (Model D604G)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

16

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

17

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

18

MTD 751-0617

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

19

MTD 751-0616

Muffler (Model U604H)
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

20

MTD 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

21

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

22

MTD 751-0619

Exhaust Pipe (Model D604G)
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

23

MTD 751-0651

Exhaust Pipe LH (Model U604H)
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

24

MTD 721-0460

Exhaust Gasket (Model U604H)
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

25

MTD 751B221535

Casing Clamp (Model U604H)

$10.99

$

In Stock, Qty 10

0

26

MTD 751-0650

Exhaust Pipe RH (Model U604H)
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

27

MTD 746-1087

Throttle Cable (Model U604H)
(Superseded to 946-1087)

$35.99

$

In Stock, only 1 left!

0

28

MTD 712-3017

Hex Nut, 3/8-16 (Model U604H)

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0300

Flat Washer (Model U604H)

$4.49

$

In Stock, Qty 20+

0

30

MTD 783-0625C

Heat Shield (Model U604H)

$111.99

$

Usually ships in 3-6 days

0

31

MTD 722-0263

Foam Cover: Fuel Line (Model U604H)
(Superseded to 723-3066-24)

$16.99

$

In Stock, only 3 left!

0
