13BD604G401 - Yard-Man Lawn Tractor (2001) Drive, Controls, Wheels Rear Parts Diagram

Lawn Tractor

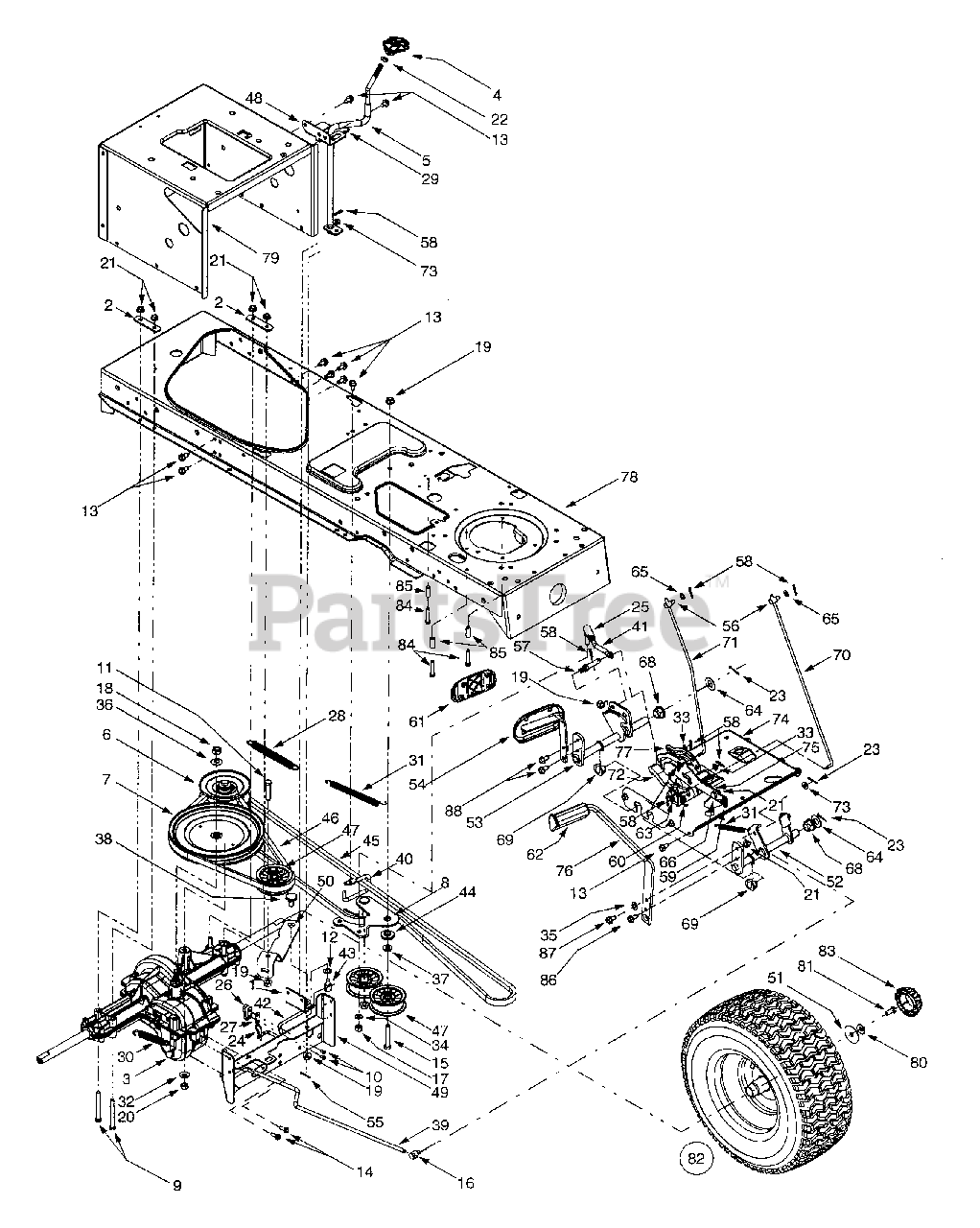

Drive, Controls, Wheels Rear Parts Diagram

  • Title

1

MTD 783-1015-0637

Shift Lever Support

$40.99

$

Usually ships in 3-6 days

0

2

MTD 17840-0637

Transaxle Mounting Bracket

$11.99

$

Usually ships in 3-6 days

0

3

MTD 918-0551A

Single-speed Transmission Assembly

$

$

Not available

4

MTD 931-0009A

Shifter Knob

$14.99

$

In Stock, only 4 left!

0

5

MTD 647-0045

Shift Lever

$

$

Not available

6

MTD 956-0048

Variable-speed Pulley Assembly

$

$

Not available

7

MTD 656-0051A

Transmission Pulley, 8.5 x .5-36

$

$

Not available

8

MTD 683-0251

Double-idler Bracket

$

$

Not available

9

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

10

MTD 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

MTD 936-0272

Flat Washer, .51 x 1.0 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

13

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

16

MTD 911-0677

Ferrule, 5/16-18

$17.99

$

In Stock, only 4 left!

0

17

MTD 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 13

0

18

MTD 712-0378

Hex Nut, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

19

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

20

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

MTD 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 16

0

23

MTD 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

24

MTD 914-0149B

Internal Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

25

MTD 923-3018

Ball Joint

$16.99

$

In Stock, Qty 20+

0

26

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

27

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

28

MTD 932-0384

Extension Spring, .62 Dia. x 6.12

$14.99

$

In Stock, Qty 12

0

29

MTD 732-0525

Compression Spring Clip

$10.99

$

In Stock, only 1 left!

0

30

MTD 732-0716D

Extension Spring, .59 OD x 4

$13.99

$

Usually ships in 3-6 days

0

31

MTD 732-0963

Extension Spring, .50 Dia. x 6.37

Note: (Hooks to flange, 783-0650, in frame)

$9.99

$

In Stock, only 4 left!

0

32

MTD 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

33

MTD 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

34

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

35

MTD 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

36

MTD 736-0407

Bell Washer, .45 x 1.0 x .602

$3.99

$

In Stock, Qty 12

0

37

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

38

MTD 738-0322

Shoulder Screw, .625 x .217
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

39

MTD 747-1122

Brake Rod

$

$

Not available

40

MTD 747-1123A

Belt Guard

$

$

Not available

41

MTD 747-1127

Idler Adjustment Rod, 3/8

$42.99

$

Usually ships in 3-6 days

0

42

MTD 747-1285

Shift Rod

$

$

Not available

43

MTD 711-0736

Adjustment Ferrule, 1/4-20 x 1.0

$13.99

$

In Stock, only 2 left!

0

44

MTD 738-0372B

Shoulder Spacer, .38 ID

$9.49

$

In Stock, Qty 20+

0

45

MTD 954-0467

Lower Drive Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

46

MTD 954-0468

Upper Drive Belt

$30.99

$

In Stock, Qty 13

0

47

MTD 756-04224

Flat Idler, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

48

MTD 783-1016B

Speed Control Rod Bracket

$

$

Not available

49

MTD 783-0667B-0637

Transmission Torque Bracket

$46.99

$

Usually ships in 3-6 days

0

50

MTD 783-0669-0637

Idler Bracket

$20.99

$

In Stock, only 1 left!

0

51

MTD 736-0430

Flat Washer, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

52

MTD 753-05606

Brake Control Assembly

$

$

Not available

53

MTD 647-0032A-0637

Speed Control Assembly

$

$

Not available

54

MTD 683-0266

Drive Pedal Assembly

$

$

Not available

55

MTD 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

56

MTD 711-0736

Ferrule, 1/4-20

$13.99

$

In Stock, only 2 left!

0

57

MTD 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

58

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

59

MTD 732-0437

Compression Spring, .34 OD x 1.0

$10.99

$

In Stock, only 1 left!

0

60

MTD 732-0955

Extension Spring, .50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

61

MTD 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

62

MTD 735-3049A

Brake Pedal Pad

$12.99

$

In Stock, only 1 left!

0

63

MTD 936-0142

Flat Washer, .281 x .5 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

64

MTD 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

65

MTD 736-0204

Flat Washer, .344 x .062 x .03

$4.49

$

In Stock, Qty 20+

0

66

MTD 938-0155

Shoulder Screw, .437 x 1.62

$6.99

$

Usually ships in 3-6 days

0

67

MTD 938-0507B

Shoulder Screw, .5 x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

68

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

69

MTD 741-3065B

Split Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

70

MTD 747-1137

Cruise Control Rod

$

$

Not available

71

MTD 747-1138

Brake Lock Control Rod

$

$

Not available

72

MTD 748-0413

Cruise Latch

$32.99

$

Usually ships in 3-6 days

0

73

MTD 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

74

MTD 783-04612-0637

Stearing Support Bracket

$89.99

$

In Stock, only 3 left!

0

75

MTD 783-0732A

Drive Lockout Bracket

$34.99

$

Usually ships in 3-6 days

0

76

MTD 783-0773-0637

Brake Pedal
(Superseded to 753-05606)

$

$

Not available

77

MTD 753-04872

Neutral Return Bracket

$

$

Not available

78

MTD 683-0304C-0637

Lower Frame Assembly

$

$

Not available

79

MTD 783-1031A-0637

Hitch Plate

$

$

Not available

80

MTD 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

81

MTD 710-0627

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

82

MTD 634-0104-0911

Wheel Assembly Complete, 20 x 8 x 8

$144.99

$

In Stock, only 1 left!

0

82

MTD 934-0070-0662

Rim Only
(Superseded to 634-04369-0662)

Note: Not Shown

$165.99

$

Usually ships in 3-6 days

0

82

MTD 934-0255

Air Valve

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

82

MTD 734-1730

Tire Only, 20 x 8 x 8, Square Shoulder

Note: Not Shown

Variations

MTD 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

83

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

84

MTD 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

85

MTD 750-0556

Spacer

$

$

Currently unavailable

86

MTD 710-0650

Self-tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

87

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

88

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0
