13BC76LF055 - Yard-Man Lawn Tractor (2014) Engine Accessories Parts Diagram

Lawn Tractor

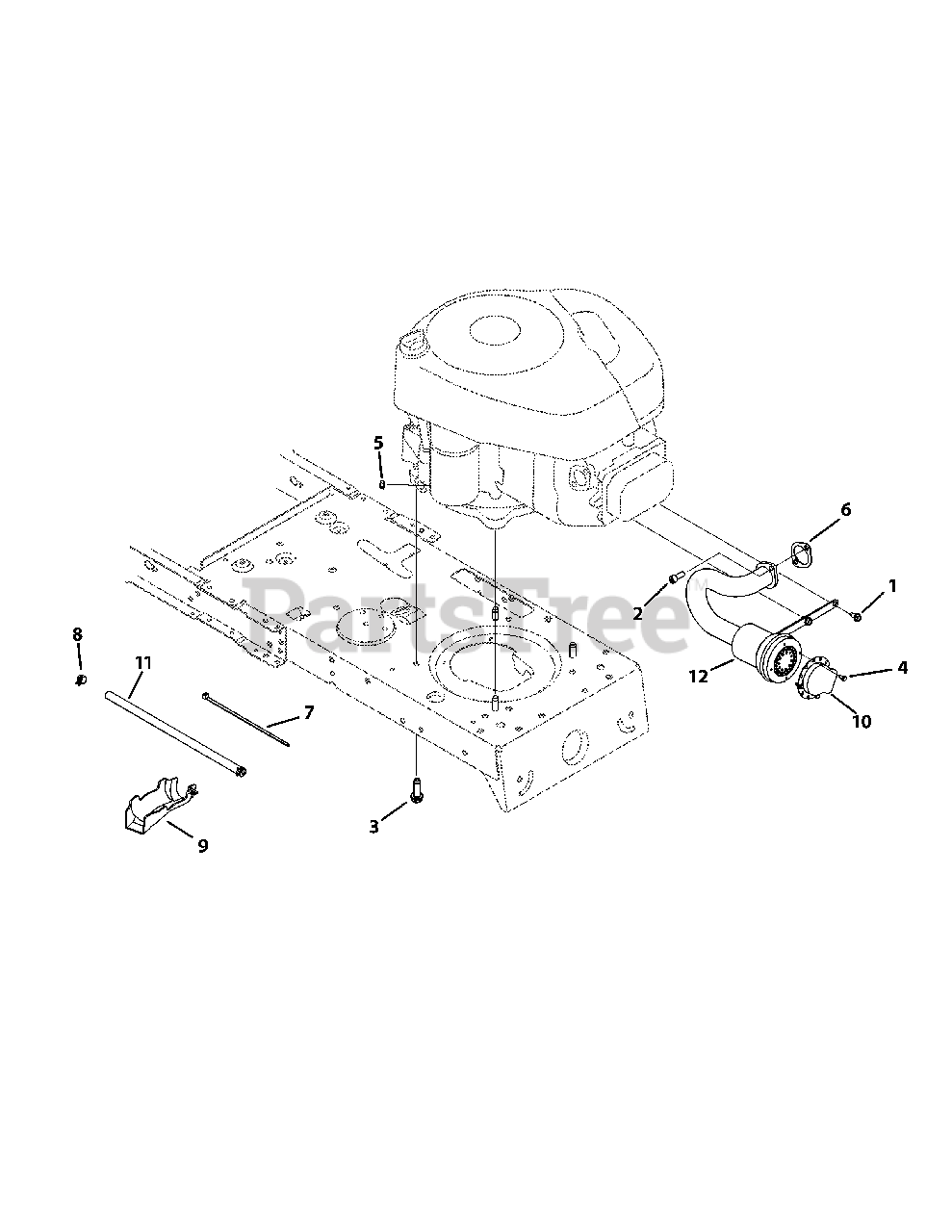

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-1314A

Socket Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683A

Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

4

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

6

MTD BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

7

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

MTD 726-0205

Clamp Hose, .490 diameter

$3.99

$

In Stock, Qty 20+

0

9

MTD 731-05628

Oil Drain Sleeve

$8.49

$

In Stock, only 1 left!

0

10

MTD 751B222261

Muffler Deflector

$10.99

$

In Stock, only 1 left!

0

11

MTD 751-10349-28

Fuel Hose, Low Permeation

$41.99

$

In Stock, only 1 left!

0

12

MTD 751-9986A

Muffler
(Superseded to 951-9986A)

$97.99

$

Usually ships in 3-6 days

0
