13BC762F000 - Yard Machines Lawn Tractor (2016) Manual PTO Parts Diagram
Lawn Tractor

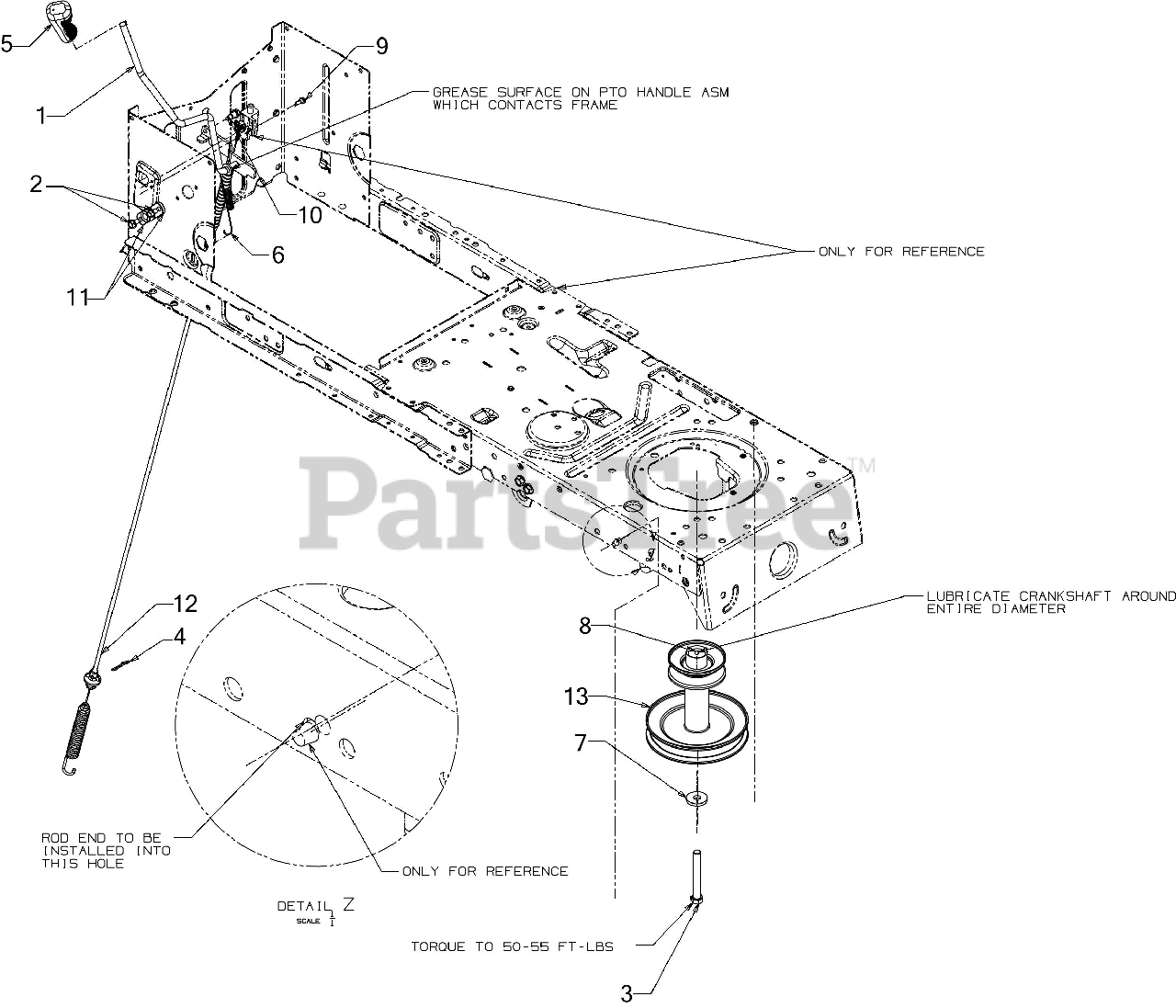

Manual PTO Parts Diagram
MTD 647-05041-0637
PTO HANDLE ASSEMBLY
$11.99
$
In Stock, only 1 left!
MTD 710-0599
SCREW 1/4-20 X.500
$4.49
$
In Stock, Qty 20+
MTD 710-3157A
SCREW 7/16-20 x 3.25 GR5
$10.99
$
In Stock, Qty 20+
MTD 714-04040
BOW TIE COTTER PIN 1/4-5/16
$1.49
$
In Stock, Qty 20+
MTD 720-04049A
HANDLE GRIP
$16.99
$
In Stock, only 1 left!
MTD 732-05376
EXTENSION SPRING
$9.99
$
In Stock, only 1 left!
MTD 736-0322
FLAT WASHER .445 x 1.248 x .170
$9.49
$
In Stock, Qty 8
8
N/A
GREASE (NOT SERVICEABLE)
$
$
Not available
MTD 738-04237A
SHOULDER SCREW
$6.49
$
In Stock, Qty 7
MTD 738-04425
SHOULDER SCREW
$4.49
$
In Stock, Qty 20+
MTD 741-04119A
PTO BEARING
$4.99
$
In Stock, Qty 12
$31.99
$
In Stock, Qty 8
MTD 756-04196A
ENGINE PULLEY 3.39 x 6.12 DIA
$90.99
$
In Stock, only 1 left!
