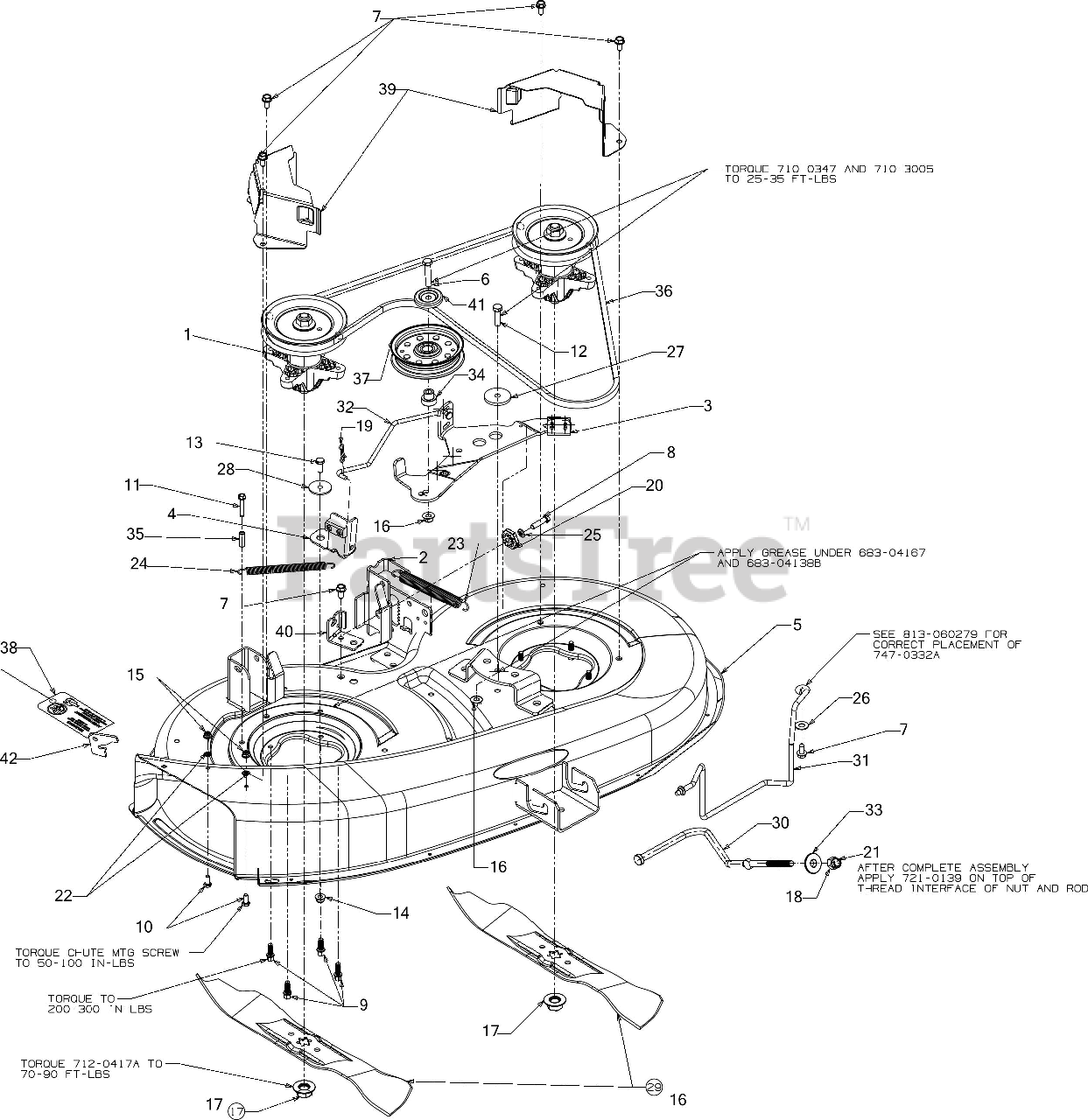

13BC762F000 - Yard Machines Lawn Tractor (2016) Deck Parts Diagram

Lawn Tractor

Deck Parts Diagram

  • Title
1

MTD 712-05134

FLANGE NUT 5/8-18

Note: Not Shown

$6.49

$

In Stock, Qty 20+

0

1

MTD 736-0188

FLAT WASHER .760ID X1.49OD x .06

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

1

MTD 750-1000

SPACER .8 x 1.1 x 1.322 LG

Note: Not Shown

$4.49

$

In Stock, Qty 7

0

1

MTD 756-05097

DECK PULLEY 5.75 DIA

Note: Not Shown

$24.99

$

Usually ships in 3-6 days

0

1

MTD 783-08435

SHIELD-BRG DECK

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0

1

MTD 918-04474B

SPINDLE ASSEMBLY

$120.99

$

In Stock, Qty 8

0

1

MTD 938-04241

BLADE SPINDLE SHAFT

Note: Not Shown

$34.99

$

In Stock, only 1 left!

0

1

MTD 941-0919B

BALL BEARING

Note: Not Shown

$21.99

$

In Stock, Qty 20+

0

2

MTD 683-0254B-0637

DECK HANGER BRACKET ASSEMBLY (LH)
(Superseded to 683-06474-0637)

$36.99

$

Usually ships in 3-6 days

0

3

MTD 783-04491F-0637

IDLER BRACKET
(Superseded to 783-04491F)

Note: Not Shown

$

$

Not available

3

MTD 683-04138C-0637

42" DECK BRAKE ASSEMBLY
(Superseded to 683P04138C)

$117.99

$

In Stock, only 1 left!

0

4

MTD 928-0173

POP RIVET

Note: Not Shown

$4.49

$

In Stock, only 4 left!

0

3

MTD 761-04017

SPINDLE BRAKE PAD

Note: Not Shown

$15.99

$

In Stock, Qty 16

0

4

MTD 683-04167-0637

42" DECK BRAKE ASSEMBLY
(Superseded to 983-04167)

$47.99

$

In Stock, only 2 left!

0

4

MTD 761-04017

SPINDLE BRAKE PAD

Note: Not Shown

$15.99

$

In Stock, Qty 16

0

3

MTD 928-0173

POP RIVET

Note: Not Shown

$4.49

$

In Stock, only 4 left!

0

5

MTD 683-04263-0637

38" DECK ASSEMBLY
(Superseded to 983-04263-0637)

$536.99

$

Usually ships in 3-6 days

0

6

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-06322

SCREW 5/16-18 X .875

$5.49

$

In Stock, Qty 6

0

10

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0778

SCREW 1/4-20 x 1.50"

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

16

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

18

$4.49

$

In Stock, Qty 20+

0

19

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

20

MTD 917-04074

DECK ADJUSTMENT

$13.99

$

In Stock, Qty 14

0

38

N/A

(NOT SERVICEABLE)

Note: (NOT SERVICEABLE)

$

$

Not available

22

MTD 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, Qty 20+

0

23

MTD 732-04280B

EXTENSION SPRING

$8.49

$

In Stock, only 4 left!

0

24

MTD 732-04287

EXTENSION SPRING

$15.99

$

In Stock, only 1 left!

0

25

MTD 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

26

MTD 936-0300

FLAT WASHER
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

28

MTD 738-04166

SHOULDER SPACER

$6.49

$

In Stock, Qty 8

0

29

MTD 942-0610A

19.38" BLADE (3N1)

$26.99

$

In Stock, Qty 20+

0

30

MTD 747-04322

FRONT DECK ADJUSTMENT ROD

$35.99

$

In Stock, only 1 left!

0

31

MTD 747-04332A

BELT KEEPER ROD

$48.99

$

In Stock, Qty 8

0

32

MTD 747-04381

BRAKE CONTROL ROD

$20.99

$

Usually ships in 3-6 days

0

33

MTD 748-04069

LIFT PIVOT CUP
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

34

MTD 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

35

MTD 750-0566A

SPACER

$9.99

$

In Stock, only 1 left!

0

36

MTD 954-04062

V-BELT A-SEC x 77.15

$47.99

$

In Stock, Qty 12

0

37

MTD 756-05042

IDLER PULLEY 4.25 DIA

$31.99

$

In Stock, Qty 20+

0

39

MTD 783-04602C-0637

BELT COVER

$32.99

$

Usually ships in 3-6 days

0

40

MTD 783-04740-0637

DECK CABLE BRACKET

$10.99

$

In Stock, only 2 left!

0

41

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

42

N/A

(NOT SERVICEABLE)

Note: (NOT SERVICEABLE)

$

$

Not available

21

N/A

LOCTITE SEALANT (NOT SERVICEABLE)

Note: (NOT SERVICEABLE)

$

$

Not available
