13BC762F000 - Yard Machines Lawn Tractor (2014) Hood Parts Diagram

Lawn Tractor

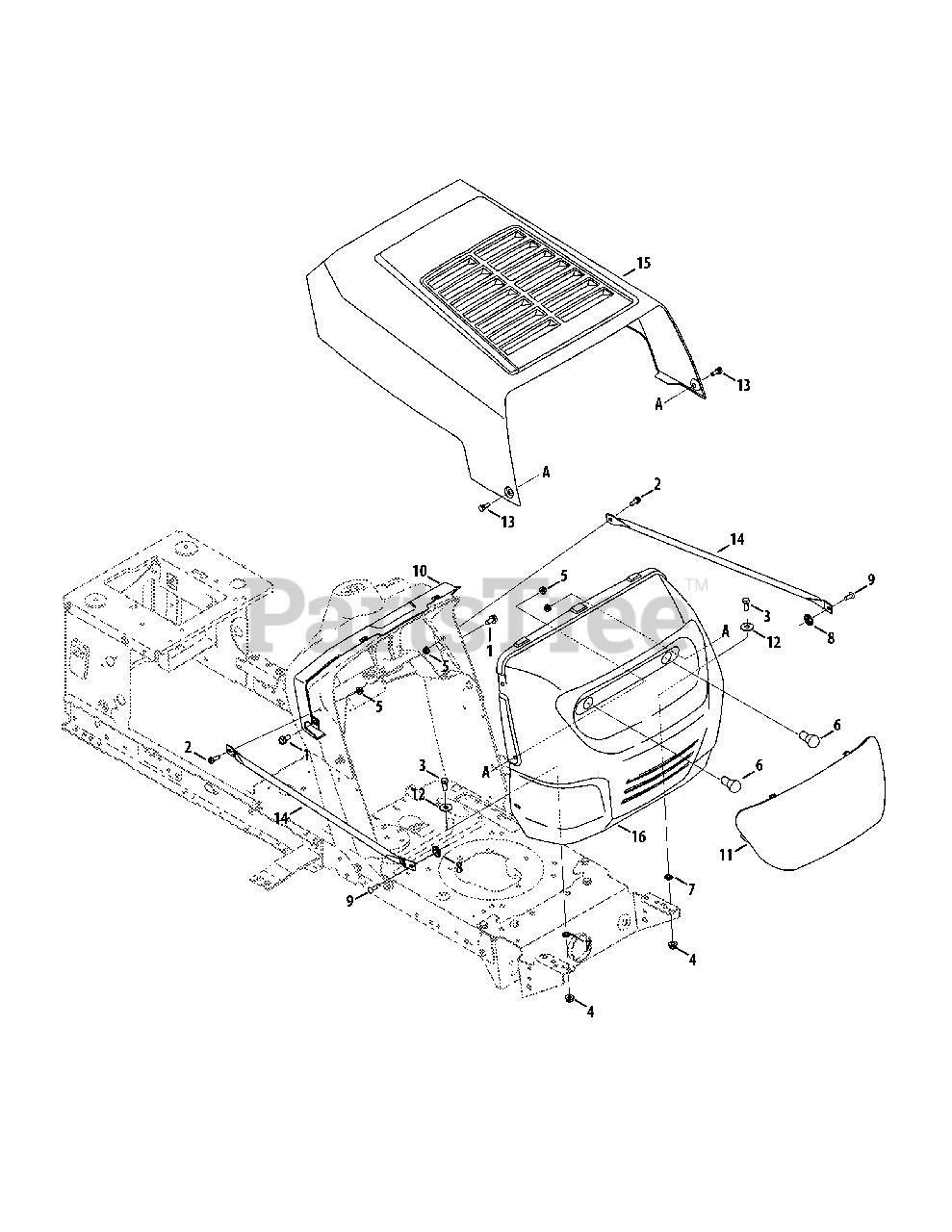

Hood Parts Diagram

  • Title

1

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

2

MTD 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

MTD 925-0963

Miniature Lamp 12V Socket

$7.49

$

In Stock, Qty 5

0

7

MTD 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0

8

MTD 926-04012

Push-On Nut, .25
(Superseded to 726-04012)

$

$

Not available

9

MTD 728-0162

Flat Head Rivet, 1/4"

$4.99

$

Usually ships in 3-6 days

0

10

MTD 731-05012B

Dash

$17.99

$

Usually ships in 3-6 days

0

11

MTD 731-06042

Lens

$34.99

$

Usually ships in 3-6 days

0

12

MTD 736-3078

Flat Washer, .344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

13

MTD 938-0952A

Shoulder Bolt, 1/4-20 x .375 x .125

$7.49

$

In Stock, Qty 10

0

14

MTD 749-04220-0637

Grill Support Rod

$26.99

$

Usually ships in 3-6 days

0

15

MTD 783-04608-0638

Hood

$274.99

$

Usually ships in 3-6 days

0

16

MTD 783-05656A-0638

Grill

$112.99

$

Usually ships in 3-6 days

0
