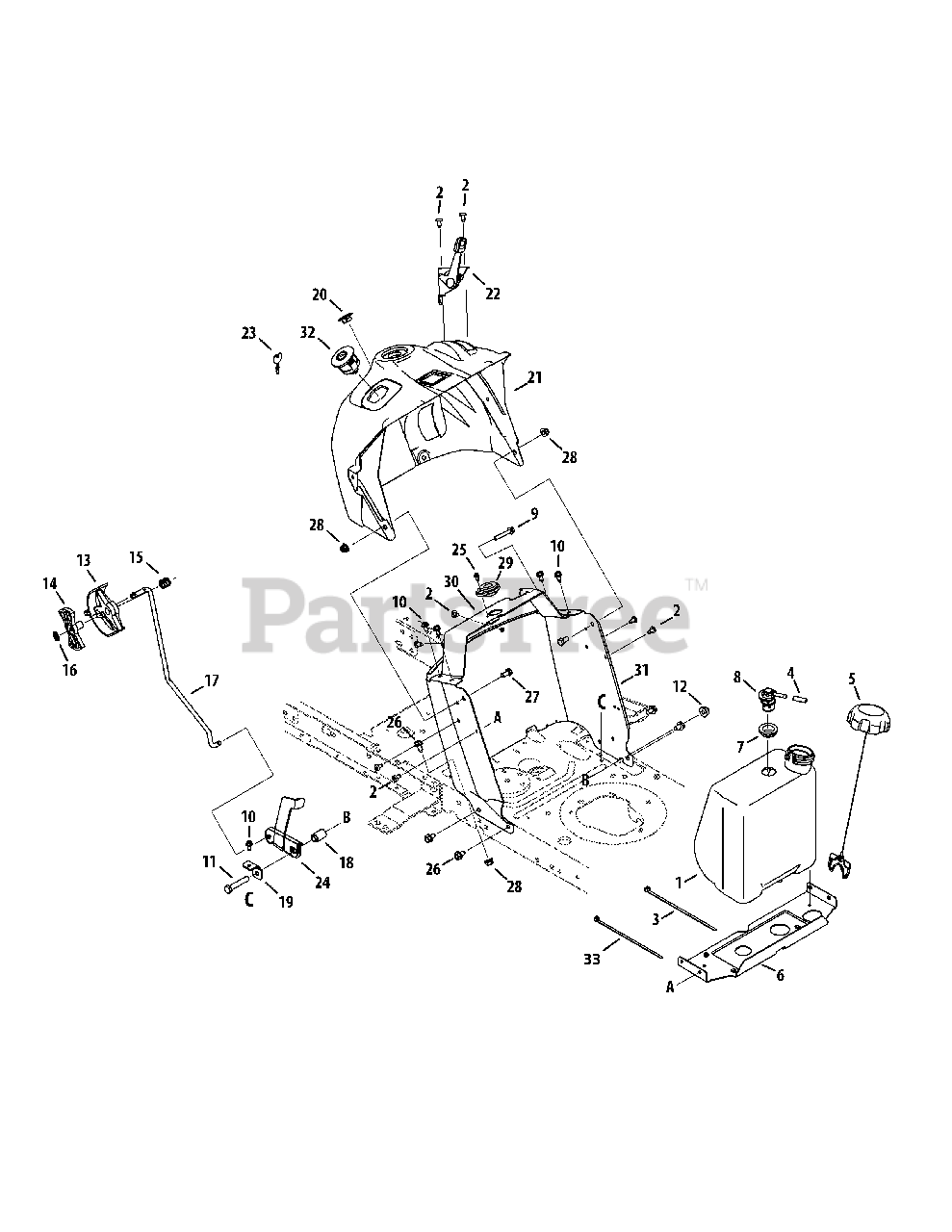

13BC762F000 - Yard Machines Lawn Tractor (2014) Dash Parts Diagram

Lawn Tractor

Dash Parts Diagram

  • Title

1

MTD 951-04304

Fuel Tank, 1.36 Gal.
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

2

MTD 710-05070

Screw, Tap, 1/4-20, 0.500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

3

MTD 726-0230

Cable Tie, 36.0 Long

$27.99

$

In Stock, only 1 left!

0

4

MTD 751-12089-28

Hose Vent

$8.99

$

In Stock, only 1 left!

0

5

MTD 951-12179B

Fuel Cap, 2.25"
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

6

MTD 783-07083-0637

Gas Tank Support Bracket
(Superseded to 783-07083A-0637)

$28.99

$

Usually ships in 3-6 days

0

7

MTD 735-04081

Rubber Grommet, 23 x 3.55

$4.99

$

In Stock, Qty 20+

0

8

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 1 left!

0

9

MTD 710-05237

Hex Screw, 1/4-20 x 1.50

$3.99

$

In Stock, only 1 left!

0

10

MTD 710-1652

Tap Screw, 1/4-20, 0.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3144

Hex Screw, 3/8-16, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 16

0

13

MTD 731-07885B

Shift Lever

$11.99

$

In Stock, only 3 left!

0

14

MTD 731-07965A

Index Control, 6 Speed

$6.49

$

Usually ships in 3-6 days

0

15

MTD 732-04877

Compr. Spring, .685 OD x .63

$4.49

$

In Stock, only 2 left!

0

16

MTD 736-3006

Lock Washer, 1/4

$6.49

$

Usually ships in 3-6 days

0

17

MTD 747-05398

Speed Selector Control Rod

$11.99

$

In Stock, only 1 left!

0

18

MTD 750-04465C

Flng Spacer, .390 X .671 X 1.095

$4.49

$

Usually ships in 3-6 days

0

19

MTD 783-06823

Speed Latch

$17.99

$

In Stock, only 2 left!

0

20

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

21

MTD 931-08542C

Dash, Upper

$40.99

$

In Stock, only 1 left!

0

22

MTD 746-04367

Throttle/Choke Cable Assembly
(Superseded to 946-04367A)

$40.99

$

In Stock, only 1 left!

0

23

MTD 625-05002

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

24

MTD 783-06991-0637

Speed Latch - No RMC

$9.49

$

In Stock, only 1 left!

0

25

MTD 910-0224

Screw, #10-16 x .500

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-0604A

Tap Screw,5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

28

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

29

MTD 741-0587

Bearing, .628 ID x 1.36

$4.49

$

In Stock, Qty 10

0

30

MTD 783-06785A-0637

Bracket, Steering Support
(Superseded to 783-06785C-0637)

$9.99

$

In Stock, only 1 left!

0

31

MTD 783-06811B-0637

Dash, Lower No WNDW
(Superseded to 783-06811F-0637)

$53.99

$

Usually ships in 3-6 days

0

32

MTD 925-04659

Key Switch

$44.99

$

In Stock, Qty 20+

0

33

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

MTD 925-04567G

Harness, LT-5, No RMC,Dual
(Superseded to 925-04567K)

Note: (not shown)

$133.99

$

In Stock, only 2 left!

0

RMC® = (Reverse Mowing Control)

$

$

Not available
