13B326JC758 - Murray Lawn Tractor (2016) Seat Parts Diagram

Lawn Tractor

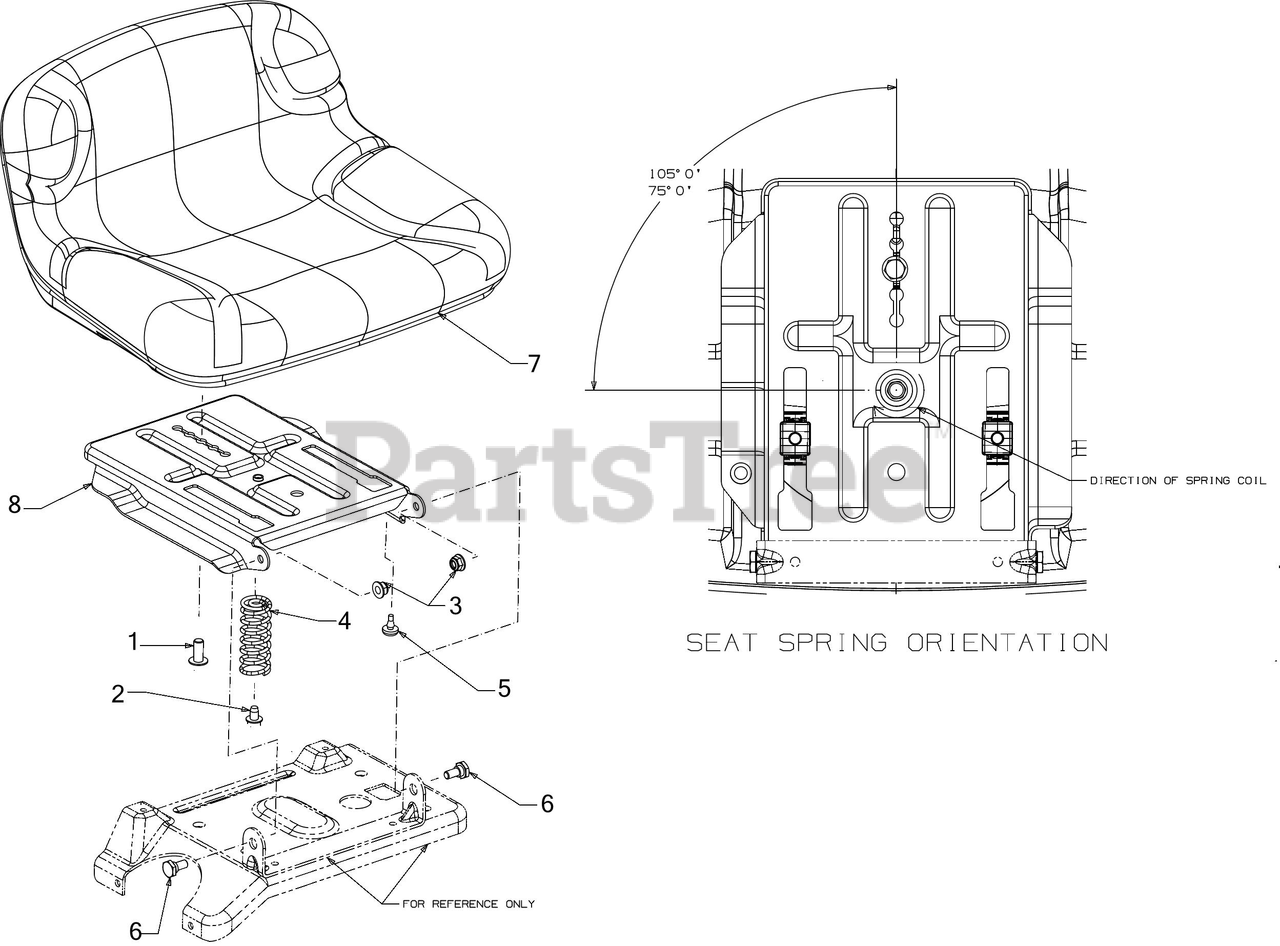

Seat Parts Diagram

  • Title
1

MTD 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

3

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

MTD 732-04905

SEAT SPRING

$3.99

$

In Stock, only 2 left!

0

5

MTD 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

6

MTD 938-0140

SHOULDER SCREW .437
(Superseded to 738-0140)

$

$

Not available

7

MTD 757-04099

LOW BACK SEAT (BLACK NO OPS)
(Superseded to 757-05230)

$194.99

$

In Stock, only 1 left!

0

8

MTD 783-07213A-0637

MANUAL SEAT ADJUSTMENT BRACKET

$33.99

$

In Stock, only 2 left!

0
