13B326JC758 - Murray Lawn Tractor (2016) Frame Parts Diagram
Lawn Tractor

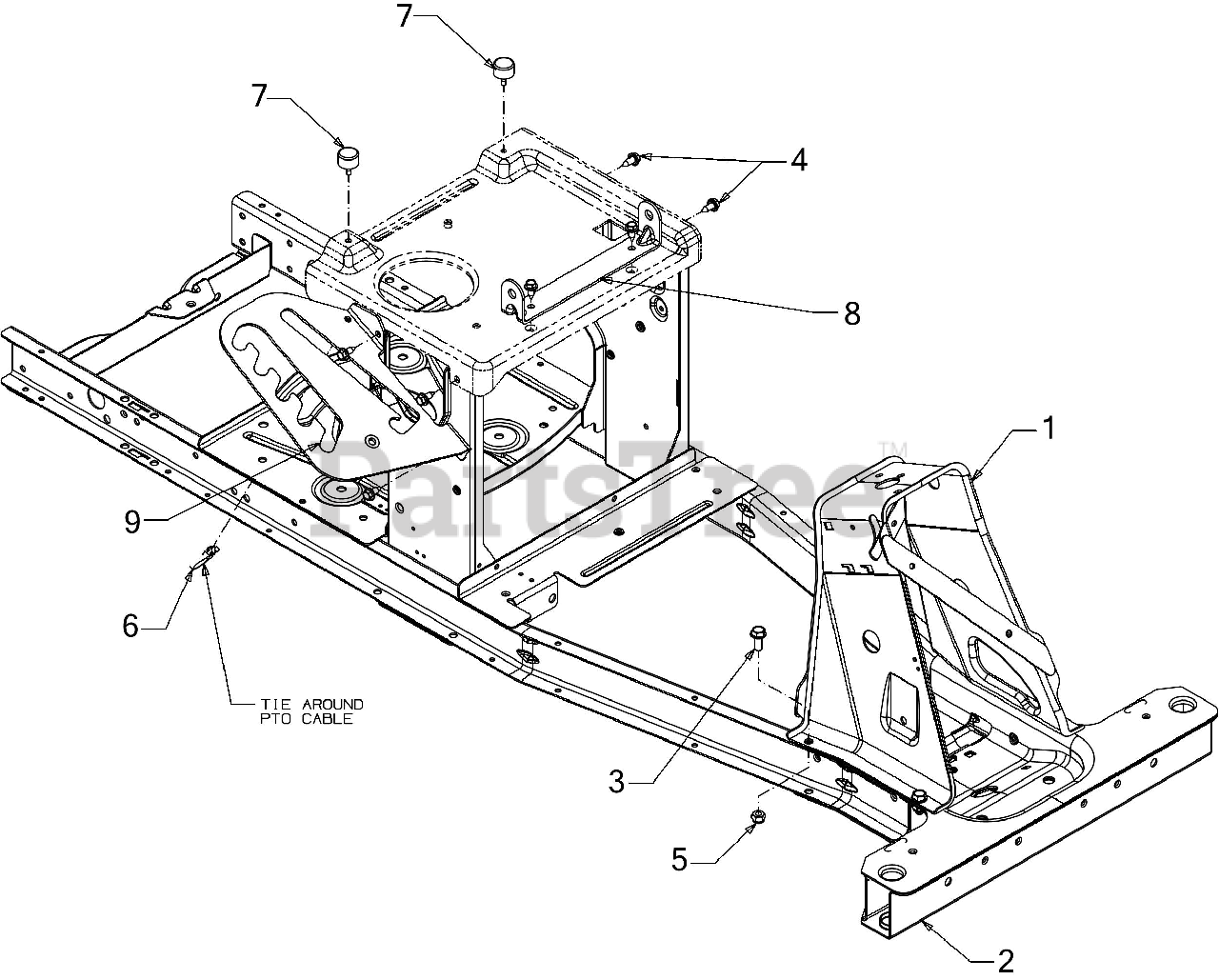

Frame Parts Diagram
MTD 683-05167-0637
STEER PEDESTAL ASSEMBLY
$55.99
$
Usually ships in 3-6 days
MTD 683-05189-0637
FRAME ASSEMBLY
$315.99
$
Usually ships in 3-6 days
MTD 710-06194
SCREW 5/16-18 x .750 GR8
$3.99
$
Usually ships in 3-6 days
MTD 710-1652
SCREW 1/4-20X.625
$4.49
$
In Stock, Qty 20+
$4.49
$
In Stock, Qty 20+
MTD 926-0154
PUSH MOUNT TIE
$6.49
$
Usually ships in 3-6 days
MTD 735-05006
BUMPER .62 DIA x .50
$4.49
$
In Stock, Qty 20+
MTD 783-07168-0637
PIVOT SEAT BRACKET
$6.49
$
In Stock, Qty 11
MTD 783-08260-0637
DECK LIFT BRACKET
$29.99
$
In Stock, only 1 left!
