13B326JC758 - Murray Lawn Tractor (2014) Mower Deck Parts Diagram

Lawn Tractor

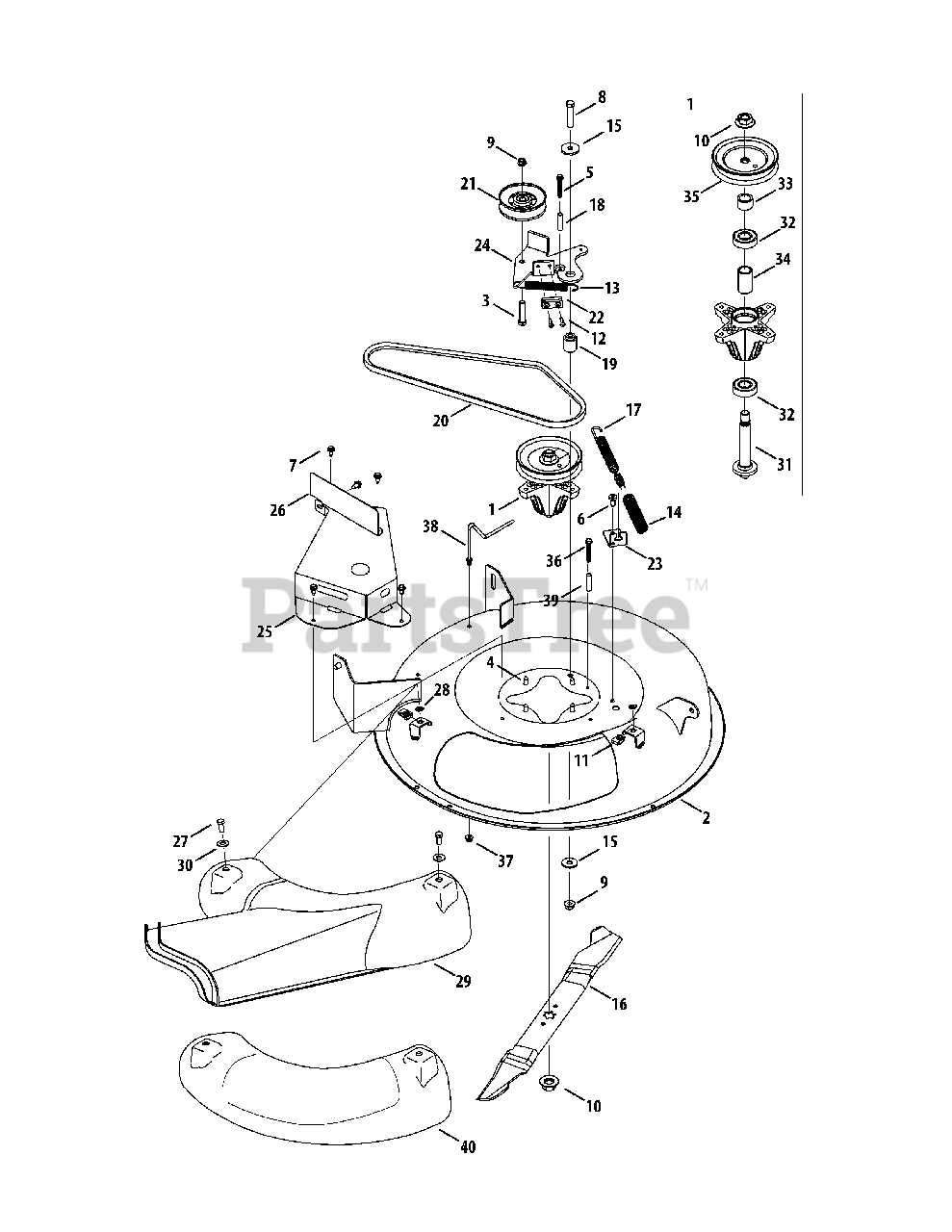

Mower Deck Parts Diagram

  • Title

1

MTD 918-06032

Spindle Pulley Assembly, 5.0 DIA

$88.99

$

Usually ships in 3-6 days

0

2

MTD 983-05008A-0637

Deck, 24"
(Superseded to 983-05008B-0637)

$209.99

$

Usually ships in 3-6 days

0

3

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

4

MTD 710-1260A

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-1026

Tap Screw, 1/4-20, 1.750

$6.99

$

In Stock, Qty 13

0

6

MTD 710-1611B

Screw, 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

7

MTD 710-1652

Tap Screw, 1/4-20 X .625

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3144

Hex Cap Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

11

MTD 926-0211

U-Nut 5/16-18
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

12

MTD 928-0173

Pop Rivet

$4.49

$

In Stock, only 4 left!

0

13

MTD 932-0470A

Extension Spring, .53 OD x 4.75

$9.99

$

In Stock, Qty 5

0

14

MTD 732-0583

Compression Spring, .625 x 4.0

$12.99

$

In Stock, Qty 19

0

15

MTD 736-0320

Flat Washer, .38 x 1.38 x .12

$6.99

$

In Stock, Qty 7

0

16

MTD 942-0760

Blade, 24" 3-IN-1
(Superseded to 742-0760A-0637)

$39.99

$

In Stock, Qty 13

0

17

MTD 946-05009

PTO Cable

$42.99

$

In Stock, only 3 left!

0

18

MTD 750-04456

Spacer, .260 X .372 X 1.420 LG

$7.49

$

In Stock, only 3 left!

0

19

MTD 750-04859C

Shoulder Spacer, 18MM x 5.0MM

$6.49

$

Usually ships in 3-6 days

0

20

MTD 954-05001

V-Type Belt, 43.5 LG

$45.99

$

In Stock, Qty 20+

0

21

MTD 756-05004

Pulley, 3.54 Dia.

$43.99

$

Usually ships in 3-6 days

0

22

MTD 761-04017

Spindle Pad

$15.99

$

In Stock, Qty 16

0

23

MTD 783-06243-0637

Deck Cable Engagement Bracket

$10.99

$

In Stock, only 2 left!

0

24

MTD 783-08756

Deck Idler Bracket

$42.99

$

Usually ships in 3-6 days

0

25

MTD 783-08136B-0637

Deck Belt Cover

$39.99

$

Usually ships in 3-6 days

0

26

MTD 783-08151-0637

Deck Shield

$7.99

$

Usually ships in 3-6 days

0

27

MTD 710-06079

Screw, 5/16-18 x .75

$4.99

$

Usually ships in 3-6 days

0

28

MTD 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0

29

MTD 731-2477

Discharge Chute

$104.99

$

Usually ships in 3-6 days

0

30

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

31

MTD 738-0933

Spindle Shaft, 5.25 LG

$41.99

$

Usually ships in 3-6 days

0

32

MTD 941-0919B

Ball Bearing, .787ID X 1.85 ODX.551

$21.99

$

In Stock, Qty 20+

0

33

MTD 748-0433

Spacer, .820 x 1.15 x .730

$5.99

$

In Stock, Qty 5

0

34

MTD 750-04936

Spacer, .792 X 1.060 X 1.860 LG

$6.99

$

In Stock, Qty 20+

0

35

MTD 756-0969

Pulley 5.0" Dia.

$35.99

$

Usually ships in 3-6 days

0

36

MTD 710-0778

Tap Screw, 1/4-20:1.500

$4.49

$

In Stock, only 1 left!

0

37

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

38

MTD 747-06116-0637

Belt Keeper
(Superseded to 747-06116)

$11.99

$

Usually ships in 3-6 days

0

39

MTD 750-0566A

Spacer, .260 x .375 x 1.030 LG

$9.99

$

In Stock, only 1 left!

0

40

MTD 731-2505

Mulch Plug

Note: (Optional)

$73.99

$

Usually ships in 3-6 days

0
