13B-325-401 - Yard-Man Lawn Tractor (2001) Differential Assembly Parts Diagram

Lawn Tractor

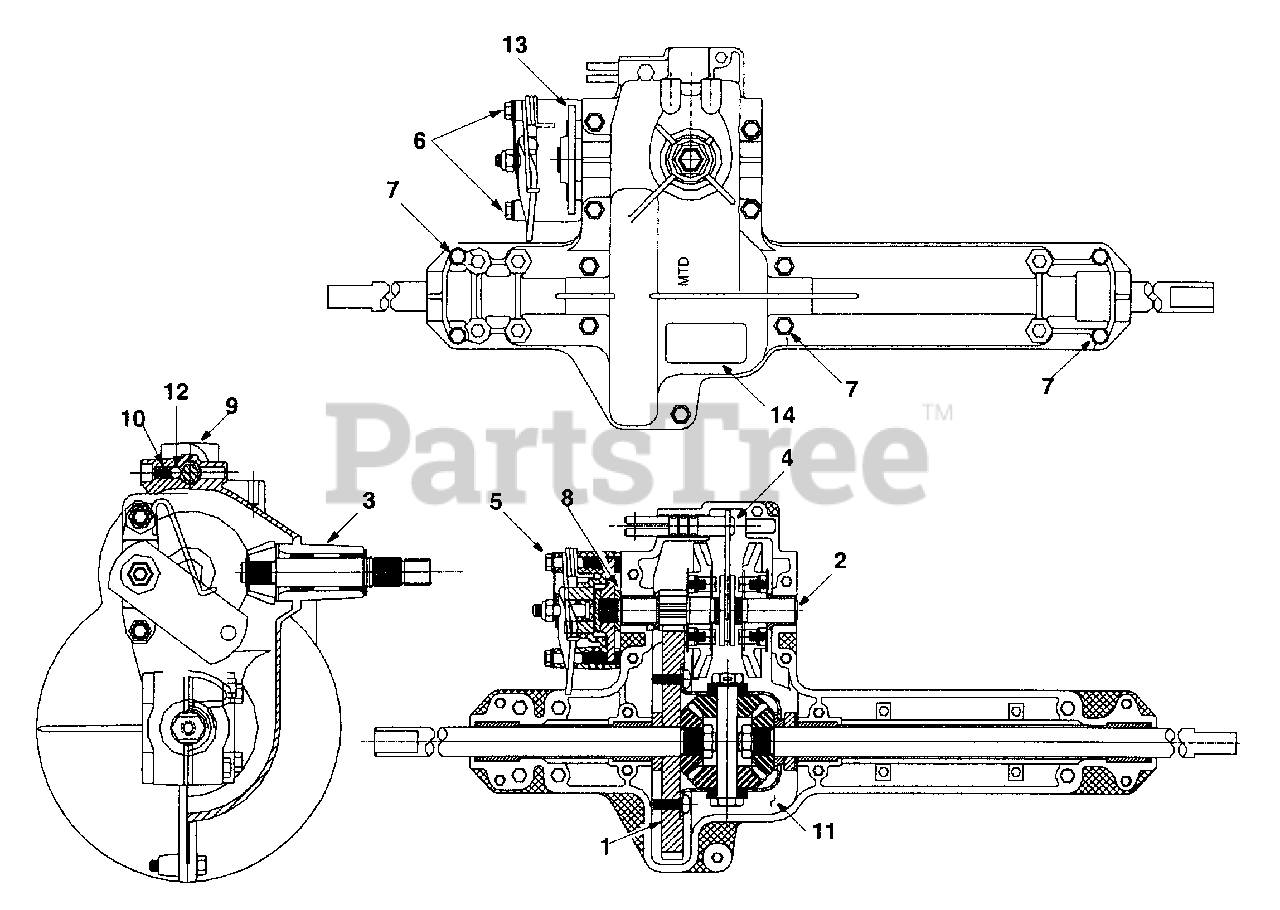

Differential Assembly Parts Diagram

  • Title

1

MTD 618-0232

Differential Assembly: Single Speed
(Superseded to 918-04092A)

$346.99

$

Usually ships in 3-6 days

0

2

MTD 618-0248

Drive Shaft assembly: LH Brake
(Superseded to 618-0248P)

$250.99

$

Usually ships in 3-6 days

0

3

MTD 618-0072B

Upper Housing Assembly
(Superseded to 918-0072B)

$183.99

$

Usually ships in 3-6 days

0

4

MTD 611-0114

Detent Shaft Assembly

$

$

Not available

5

MTD 661-0006

Brake Yoke Assembly: LH
(Superseded to 961-0006)

$46.99

$

In Stock, only 1 left!

0

6

MTD 710-1206

Hex Washer Hd. TT Screw 1/4-20 x 2.37 Gr.5

$7.49

$

In Stock, Qty 6

0

7

MTD 710-1325

Hex Washer Hd. TT Screw 1/4-20 x 1.65

$4.49

$

Usually ships in 3-6 days

0

8

MTD 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 1 left!

0

9

MTD 719-0313B

Lower Housing

$154.99

$

Usually ships in 3-6 days

0

10

MTD 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 1 left!

0

11

MTD 737-0148

Grease
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 19

0

12

MTD 741-0862

Ball Detent

$4.49

$

In Stock, Qty 20+

0

13

MTD 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

14

MTD 777-6318

Label

$

$

Currently unavailable
