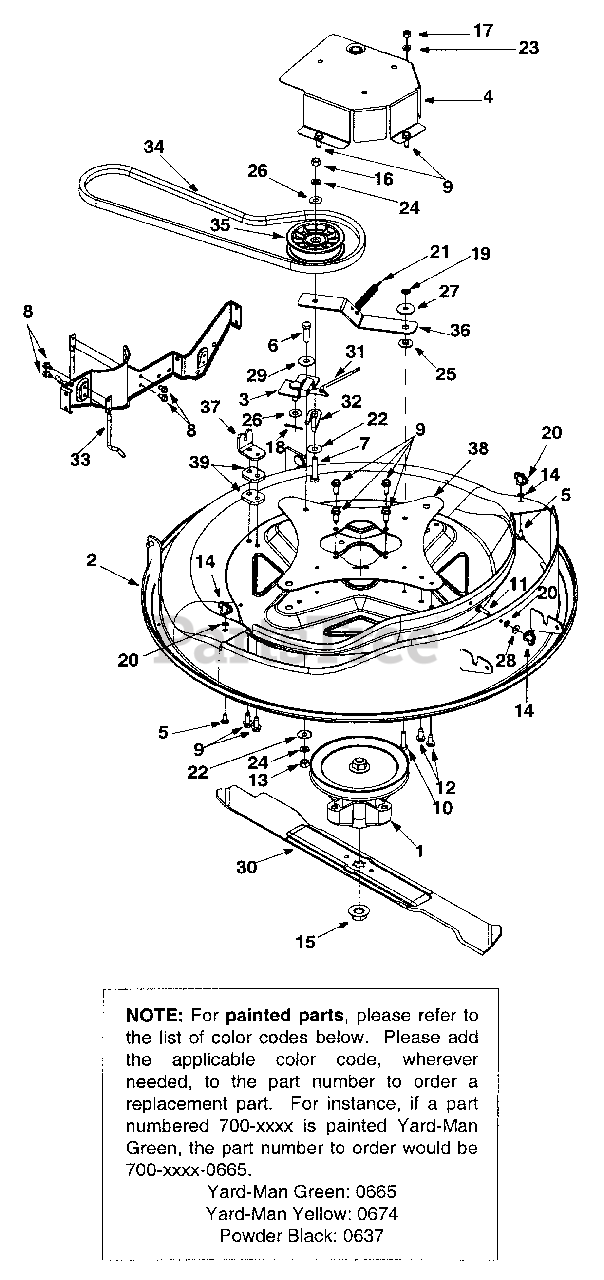

13B-325-401 - Yard-Man Lawn Tractor (2001) Deck Assembly Parts Diagram

Lawn Tractor

Deck Assembly Parts Diagram

  • Title

1

MTD 618-0250

Spindle Assembly
(Superseded to 618-0250P)

$402.99

$

Usually ships in 3-6 days

0

2

MTD 683-0150C

Deck Assembly
(Superseded to 983-0150E)

Variations

MTD 683-0150C-0498

27.5" DECK ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

MTD 683-0150C-0637

DECK ASM-27.5" - POWDER BLACK (0637)

$

$

Not available

MTD 683-0150C-0648

DECK ASM-27.5" - TECH GRAY (0648)

$

$

Not available

MTD 683-0150C-0650

DECK ASM-27.5" - RED METALLIC (0650)

$

$

Not available

MTD 683-0150C-0665

DECK ASM-27.5" - YARDMAN GREEN (0665)

$

$

Not available

$

$

3

MTD 683-0159

Brake Bracket Assembly
(Superseded to 983-0159)

$

$

Not available

4

MTD 683-0173

Deck Belt Cover

Variations

MTD 683-0173-0637

Deck Belt Cover Assembly, Black - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

MTD 683-0173-0650

Deck Belt Cover Assembly, Black - RED METALLIC (0650)

$66.99

$

Usually ships in 3-6 days

0

MTD 683-0173-0665

Deck Belt Cover Assembly, Black - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

5

MTD 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0191

Hex Bolt 3/8-24 x 1.25 Grade 8

$4.99

$

In Stock, Qty 9

0

7

MTD 710-0347

Hex Screw 3/8-16 x 1.75 Gr. 5

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-0599

Self-Tapp. Screw 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0650

Self-Tapp. Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0672

Hex Cap Scr. 5/16-24 x 1.25

$4.49

$

In Stock, Qty 18

0

11

MTD 710-0932

Carriage Screw
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

12

MTD 710-1611B

Torx Screw 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

13

MTD 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

14

MTD 712-0397

Wing Nut With Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-0417A

Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

16

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-3057

Hex Nut 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

18

MTD 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

19

MTD 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

20

MTD 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-0429A

Extension Spring
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

22

MTD 736-0101

Flat Washer 3/8 x 1.00 x .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

23

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-0289

Bushing
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

26

MTD 736-0300

Flat Washer .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0343

Flat Washer .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

28

MTD 736-3020

Flat Washer

$6.99

$

In Stock, Qty 9

0

29

MTD 738-0968

Spacer
(Superseded to 938-0968)

$5.99

$

Usually ships in 3-6 days

0

30

MTD 742-0651

Three-in-one Blade
(Superseded to 942-0651)

Variations

MTD 742-0651-0637

Mower Blade, 27.56" Lg 3-Function Star - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$

$

31

MTD 747-0957

Link Rod

$

$

Not available

32

MTD 747-0972

Belt Keeper

$

$

Not available

33

MTD 747-1172

Belt Keeper

Variations

MTD 747-1172-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 754-0754

V Belt
(Superseded to 954-0754)

$65.99

$

In Stock, only 2 left!

0

35

MTD 756-0627

Flat Idler Pulley
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

36

MTD 783-0463

Idler Bracket

Variations

MTD 783-0463-0637

No Longer Available BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 783-0529

Cable Bracket

Variations

MTD 783-0529-0637

Cable Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 783-0569A

Deck Plate
(Superseded to 783-0569B-0637)

Variations

MTD 783-0569A-0637

PLATE-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 783-0781

Deck Skirt

Variations

MTD 783-0781-0637

Deck Skirt - POWDER BLACK (0637)

$

$

Not available

$

$

?40

MTD 783-0594

Deck Cable Bracket
(Superseded to 783-0594-0637)

Variations

MTD 783-0594-0637

Deck Cable Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
