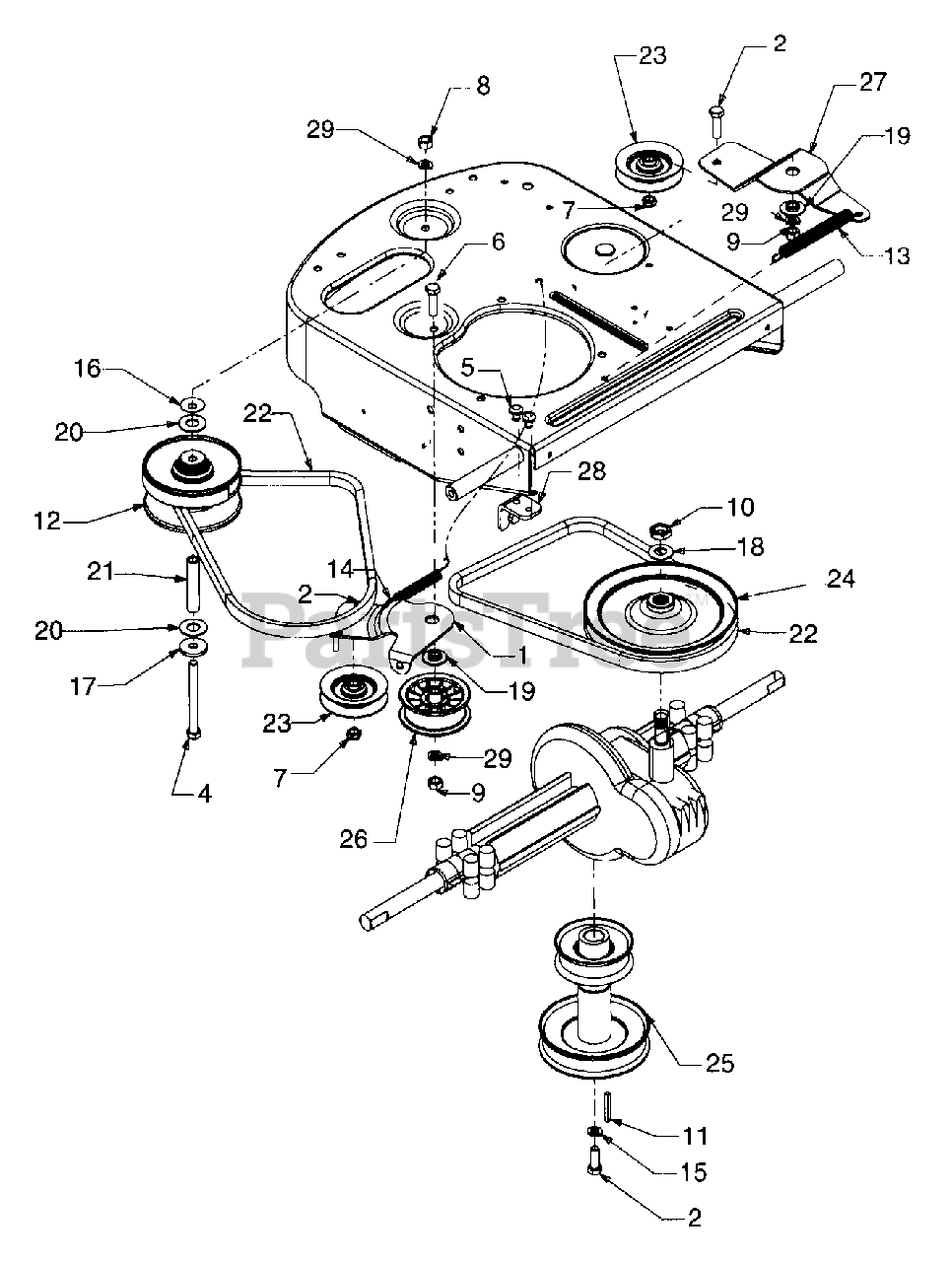

13B-325-401 - Yard-Man Lawn Tractor (1999) Variable Drive Parts Diagram

Lawn Tractor

Variable Drive Parts Diagram

  • Title

1

MTD 683-0147

Idler Bracket Assembly
(Superseded to 683-0147C)

$

$

Not available

2

MTD 710-0134

Hex Screw 3/8-24 x 1.00

Note: Code: N

$4.49

$

In Stock, Qty 20+

0

?3

MTD 710-0191

Hex Screw 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

4

MTD 710-0902

Cap Screw 3/8-24 x 3.75

$7.99

$

Usually ships in 3-6 days

0

5

MTD 710-1611

Pan Head TL Screw 5/16-18 x .75
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-3096

Hex Screw 3/8-16 x 2.0 Special

$7.99

$

Usually ships in 3-6 days

0

7

MTD 712-0116

Jam Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

8

MTD 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

9

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-3035

Hex Jam Nut 9/16-18 (Gr. 5)

$6.99

$

Usually ships in 3-6 days

0

11

MTD 714-0114

Square Key
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

12

MTD 717-0884

Variable Speed Pulley Assembly

$219.99

$

Usually ships in 3-6 days

0

13

MTD 732-0814

Extension Spring

$7.99

$

In Stock, only 4 left!

0

14

MTD 732-0815

Extension Spring

$

$

Not available

15

MTD 736-0171

Lock Washer 7/16 I.D.

Note: Code: N

$4.49

$

In Stock, only 4 left!

0

16

MTD 736-0219

Bell Washer .406 I.D. x .113 O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

17

MTD 736-0247

Flat Washer 3/8 x 1.25 O.D.

$9.49

$

In Stock, Qty 14

0

18

MTD 736-0427

Belleville Washer .567 x 1.125 x .06
(Superseded to 936-0427)

$

$

Not available

19

MTD 738-0968

Shoulder spacer
(Superseded to 938-0968)

$5.99

$

Usually ships in 3-6 days

0

20

MTD 741-0405

Bearing
(Superseded to 941-0405)

$

$

Not available

21

MTD 750-0705

Spacer

$

$

Not available

22

MTD 754-0453

V-Belt
(Superseded to 954-0453)

$34.99

$

In Stock, only 2 left!

0

23

MTD 756-0116

Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

24

MTD 756-0650

Transmission Pulley

$

$

Not available

25

MTD 756-0658

Engine Pulley
(Superseded to 956-1189A)

Note: Code: N

$133.99

$

Usually ships in 3-6 days

0

26

MTD 756-0981

Flat Idler Pulley
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

27

MTD 783-0528

Idler Bracket

$

$

Not available

28

MTD 783-0529

Cable Bracket

Variations

MTD 783-0529-0637

Cable Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 736-0169

Lock washer 3/8 I.D.

Note: Code: N

$3.99

$

In Stock, Qty 20+

0
