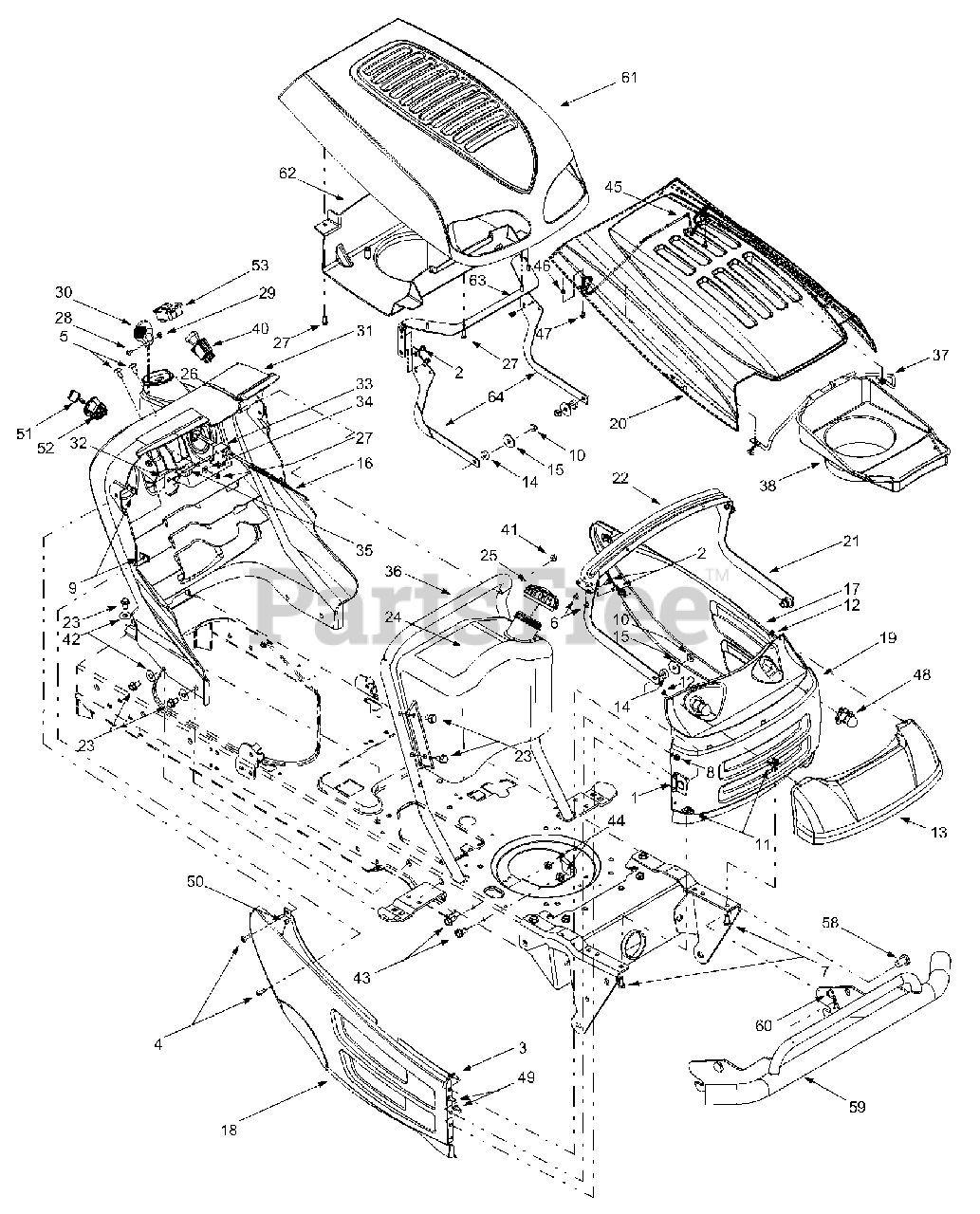

13AZ618H016 - Statesman Lawn Tractor (2002) (Southern States) Hood Style 7 & 8, Fuel Tank, Electrical Parts Diagram

Lawn Tractor

Hood Style 7 & 8, Fuel Tank, Electrical Parts Diagram

  • Title

1

MTD 683-0195

Bracket Assembly (8-style)
(Superseded to 683-0195-0637)

Variations

MTD 683-0195-0637

BRACKET ASM - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0924

Phillips Pan Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1017

Truss Phillips Screw, 1/4-20 x .625

$8.49

$

In Stock, Qty 9

0

6

MTD 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, only 2 left!

0

7

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, only 4 left!

0

8

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

9

MTD 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

10

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

MTD 726-0211

U-nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

12

MTD 726-0293

Retainer Nut, 3/8

$

$

Not available

13

MTD 731-1854A

Headlight Lens (8-style)
(Superseded to 931-1854A)

$82.99

$

In Stock, Qty 5

0

14

MTD 735-0126

Rubber Washer, .87 x .33
(Superseded to 735-0126A)

$

$

Not available

15

MTD 736-3036

Flat Washer, .406 x 1.5 x 11GA

$

$

Not available

16

MTD 746-1085

Choke Knob/Cable
(Superseded to 946-1085A)

Note: (Models with any B&S Twin)

$30.99

$

In Stock, only 1 left!

0

MTD 746-1088

Choke Knob/Cable
(Superseded to 946-1088)

Note: (Models with Kohler)

$29.99

$

In Stock, only 1 left!

0

17

MTD 783-0475A

LH Side Panel (8-style)
(Superseded to 783-0475C)

Variations

MTD 783-0475A-0499

PANEL-SIDE 8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0475A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0475A-0638

PANEL-SIDE 8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0475A-0662

PANEL-SIDE 8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0475A-0665

PANEL-SIDE 8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0475A-0691

PANEL-SIDE 8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0475A-0709

PANEL-SIDE 8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0475A-0724

PANEL-SIDE 8 STYLE - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

18

MTD 783-0476B

RH Side Panel (8-style)

Variations

MTD 783-0476B-0629

PANEL-SIDE RH 8STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0476B-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0476B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0476B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0476B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0476B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0476B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0476B-0724

No Longer Available PANEL-SIDE - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

19

MTD 783-0477A

Grill (8-style)

Variations

MTD 783-0477A-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0477A-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0477A-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0477A-0640

No Longer Available GRILLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0477A-0662

No Longer Available GRILLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0477A-0665

No Longer Available GRILLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0477A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0477A-0691

No Longer Available GRILLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0477A-0709

No Longer Available GRILLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0477A-0724

No Longer Available GRILLE - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0477A-0732

No Longer Available GRILLE - SPARKLING GRAY (0732)

$

$

Not available

$

$

20

MTD 783-0478A

Hood (8-style)
(Superseded to 983-0478B)

Variations

MTD 783-0478A-0499

HOOD-8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0478A-0629

No Longer Available HOOD-8 STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0478A-0638

HOOD-8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0478A-0662

HOOD-8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0478A-0665

HOOD-8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0478A-0691

HOOD-8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0478A-0709

HOOD-8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0478A-0724

No Longer Available HOOD-8 STY - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0478A-0732

HOOD-8 STYLE - SPARKLING GRAY (0732)

$

$

Not available

$295.99

$

Usually ships in 3-6 days

0

21

MTD 783-1309

Hood Hinge Bracket

Variations

MTD 783-1309-0637

No Longer Available BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 783-0553A

Hood Support Bracket
(Superseded to 783-0553A-0637)

Variations

MTD 783-0553A-0637

BRACKET-HOOD SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

24

MTD 751-0658B

Fuel Tank, Three Gallon

$

$

Not available

MTD 751-0659A

Fuel Tank, Two Gallon
(Superseded to 751-0659D)

Note: (Shown)

$84.99

$

In Stock, Qty 5

0

25

MTD 751-0603

Fuel Cap (Fits Either Tank)
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

26

MTD 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

27

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

28

MTD 710-3217

Truss Phillips Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

29

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

30

MTD 731-1857

Throttle Control Knob

$14.99

$

In Stock, only 4 left!

0

31

MTD 731-2225C

Dash Panel (Models w/ Electric PTO)
(Superseded to 631-04038)

$

$

Not available

MTD 731-2122C

Dash Panel (Models w/ Manual PTO)

$

$

Not available

32

MTD 731-2226

Cruise Control Button

$16.99

$

Usually ships in 3-6 days

0

MTD 731-2228

Cruise Cover (Models w/o Cruise Control)

$

$

Not available

33

MTD 731-2227

Parking Brake Button

$

$

Not available

34

MTD 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.99

$

In Stock, only 4 left!

0

35

MTD 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

36

MTD 749-1087A

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

MTD 749-1087A-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 747-1184

Hood Plenum Support Rod

$

$

Not available

38

MTD 731-2247A

Hood Plenum

Note: (Models with B&S OHV V-Twin)

$

$

Not available

MTD 731-2248

Hood Plenum
(Superseded to 731-2248A)

Note: (Models with B&S Opposed Twin)

$

$

Not available

Hood Plenum

Note: (Models with B&S OHV Single or Kohler)

$

$

Not available

?39

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

40

MTD 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 5

0

41

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, only 4 left!

0

43

MTD 710-1238

Screw, 5/16-18 x .875 (Grade 5)
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

44

MTD 712-3004A

Hex Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

45

MTD 747-1215A

Hood Latch

$

$

Not available

46

MTD 712-0272

Hex Sems Nut, #10-32

$3.99

$

In Stock, only 1 left!

0

47

MTD 710-0473

Machine Screw, #10-24

$4.49

$

In Stock, only 2 left!

0

48

MTD 625-0051

Headlight Assembly
(Superseded to 925-0051)

$16.99

$

Usually ships in 3-6 days

0

49

MTD 710-0896

Hex Index Washer Screw, 1/4-14 x .0625

$4.49

$

In Stock, Qty 20+

0

50

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

51

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

52

MTD 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

In Stock, Qty 7

0

53

MTD 725-1976

Systems Indicator Monitor w/ Hour Meter
(Superseded to 925-1976)

$

$

Not available

MTD 725-1758

Systems Indicator Monitor w/ Ammeter

$39.99

$

In Stock, only 1 left!

0

58

MTD 711-0332

Clevis Pin, .50 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 16

0

59

MTD 768-0010

Bumper Assembly
(Superseded to OEM-190-679)

$92.99

$

Usually ships in 3-6 days

0

60

MTD 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

61

MTD 731-2300

Hood, Red (7-Style)

$

$

Not available

MTD 731-2301

Hood, Green (7-Style)

$

$

Not available

MTD 731-2302

Hood, Black (7-Style)

$

$

Not available

MTD 731-2303

Hood, Charcoal Grey (7-Style)

$

$

Not available

62

MTD 731-2306

Hood Plenum

$

$

Not available

63

MTD 783-1034

Hood Bracket (7-Style)

Variations

MTD 783-1034-0637

Hood Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

64

MTD 783-1495

Hood Side Bracket (7-Style)
(Superseded to 783-1495-0637)

Variations

MTD 783-1495-0637

Hood Side Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 629-0309

Headlight Wire Harness
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

MTD 629-1067

Tractor Wire Harness

Note: (Models with Hour Meter & Electric PTO)

$347.99

$

Usually ships in 3-6 days

0

MTD 629-1068

Tractor Wire Harness (Kohler)

Note: (Models with Hour Meter & Electric PTO)

$

$

Not available

MTD 629-1071

Tractor Wire Harness
(Superseded to 929-1071)

Note: (Models with Hour Meter & Manual PTO)

$314.99

$

Usually ships in 3-6 days

0

MTD 629-1072

Tractor Wire Harness
(Superseded to 929-1072)

Note: (Models with Ammeter & Manual PTO)

$

$

Not available
