13AZ608H131 - Huskee Lawn Tractor (2004) (Tractor Supply) Transmission Assembly Z608H Parts Diagram

Lawn Tractor

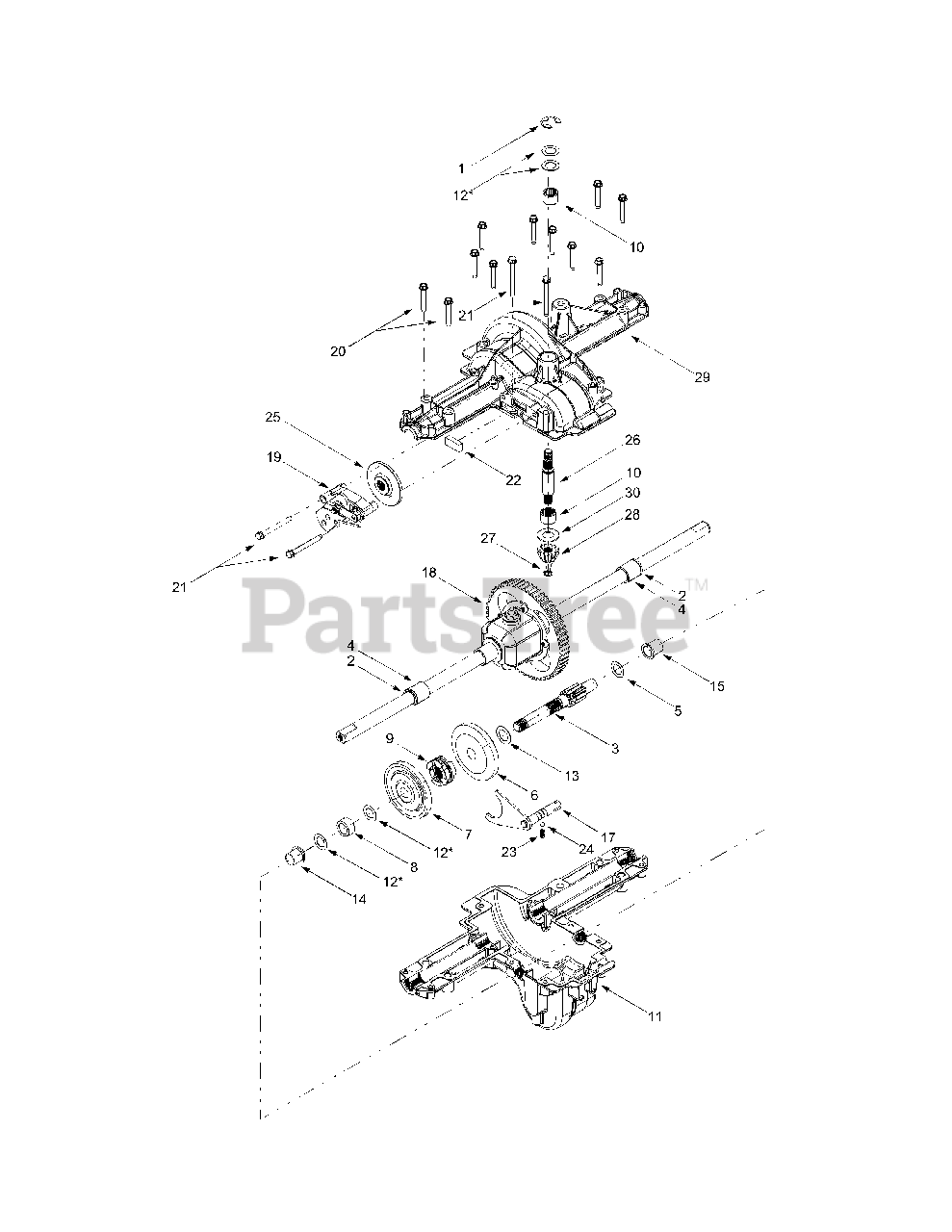

Transmission Assembly Z608H Parts Diagram

  • Title

1

MTD 716-0231

E-ring, .75

$3.99

$

In Stock, Qty 20+

0

2

MTD 721-0338

Seal, .75 x 1.0 x .125
(Superseded to 921-0338)

$7.49

$

In Stock, Qty 20+

0

3

MTD 711-1431

Drive Shaft

$131.99

$

Usually ships in 3-6 days

0

4

MTD 741-0340

Sleeve Bearing, .75 x .1.0 x 1.0
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

5

MTD 736-0495

Thrust Washer, 1.0 x .632 x .0

$4.49

$

In Stock, only 2 left!

0

6

MTD 717-1362

42-tooth Bevel Gear
(Superseded to 917-1362)

$51.99

$

In Stock, only 1 left!

0

7

MTD 717-1363

42-tooth Bevel Gear
(Superseded to 917-1363)

$51.99

$

In Stock, only 1 left!

0

8

MTD 750-1234

Spacer, .633 x 1.0 x .513

$

$

Not available

9

MTD 718-0228

Clutch Collar

$25.99

$

In Stock, only 1 left!

0

10

MTD 741-0335

Needle Bearing, .625 x .813 x 495
(Superseded to 941-0335)

$18.99

$

In Stock, only 2 left!

0

11

MTD 719-0394

Lower Housing

$177.99

$

Usually ships in 3-6 days

0

12a

MTD 736-0336

Flat Washer, 5/8 x 1.0 x .030
(Superseded to 936-0336)

Note: Use applicable flat washer (12a, 12b or 12c) in this application allowing proper end-play as instructed in MTD’s Service Manual.

$4.49

$

In Stock, Qty 7

0

12b

MTD 736-0337

Flat Washer, 5/8 x 1.0 x .040

Note: Use applicable flat washer (12a, 12b or 12c) in this application allowing proper end-play as instructed in MTD’s Service Manual.

$4.49

$

In Stock, Qty 9

0

12c

MTD 736-0349

Flat Washer, 5/8 x 1.0 x .020

Note: Use applicable flat washer (12a, 12b or 12c) in this application allowing proper end-play as instructed in MTD’s Service Manual.

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0519

Flat Washer, .70 x 1.125 x .031

$5.49

$

In Stock, only 3 left!

0

14

MTD 741-0336

Flange Bearing, 5/8 x 3/4 x 3/4
(Superseded to 941-0336)

$11.99

$

In Stock, only 3 left!

0

15

MTD 741-0337

Flange Bearing, 5/8 x 3/4 x 15/16
(Superseded to 941-0337)

$10.99

$

In Stock, Qty 8

0

16

MTD 750-1238

Spacer, .635 x 1.0 x .27

$

$

Not available

17

MTD 611-0133

Detent Shaft Assembly

$

$

Not available

18

MTD 618-0424A

Differential Assembly
(Superseded to 918-04097A)

$

$

Not available

19

MTD 661-0006

Brake Assembly
(Superseded to 961-0006)

$46.99

$

In Stock, only 1 left!

0

20

MTD 710-1325

Self-tapping Screw, 1/4-20 x 1.625

$4.49

$

Usually ships in 3-6 days

0

21

MTD 710-1206

Self-tapping Screw, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

22

MTD 717-0678

Brake Pad
(Superseded to 917-0678)

$7.49

$

In Stock, only 1 left!

0

23

MTD 732-0863

Compression Spring
(Superseded to 932-0863)

$4.49

$

In Stock, only 1 left!

0

24

MTD 741-0862

Detent Ball

$4.49

$

In Stock, Qty 20+

0

25

MTD 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

26

MTD 711-1430

Input Shaft

$

$

Not available

27

MTD 716-0108

Retaining Ring, .437

$5.49

$

Usually ships in 3-6 days

0

28

MTD 717-1464

14-tooth Bevel Pinion

$22.99

$

Usually ships in 3-6 days

0

29

MTD 719-0580

Upper Housing

$163.99

$

Usually ships in 3-6 days

0

30

MTD 736-0335

Thrust Washer, .635 x 1.26 x .06

$6.99

$

In Stock, Qty 8

0
