13AZ604H063 - Troy-Bilt Lawn Tractor (1999) Hood Style/Fuel Tank Parts Diagram

Lawn Tractor

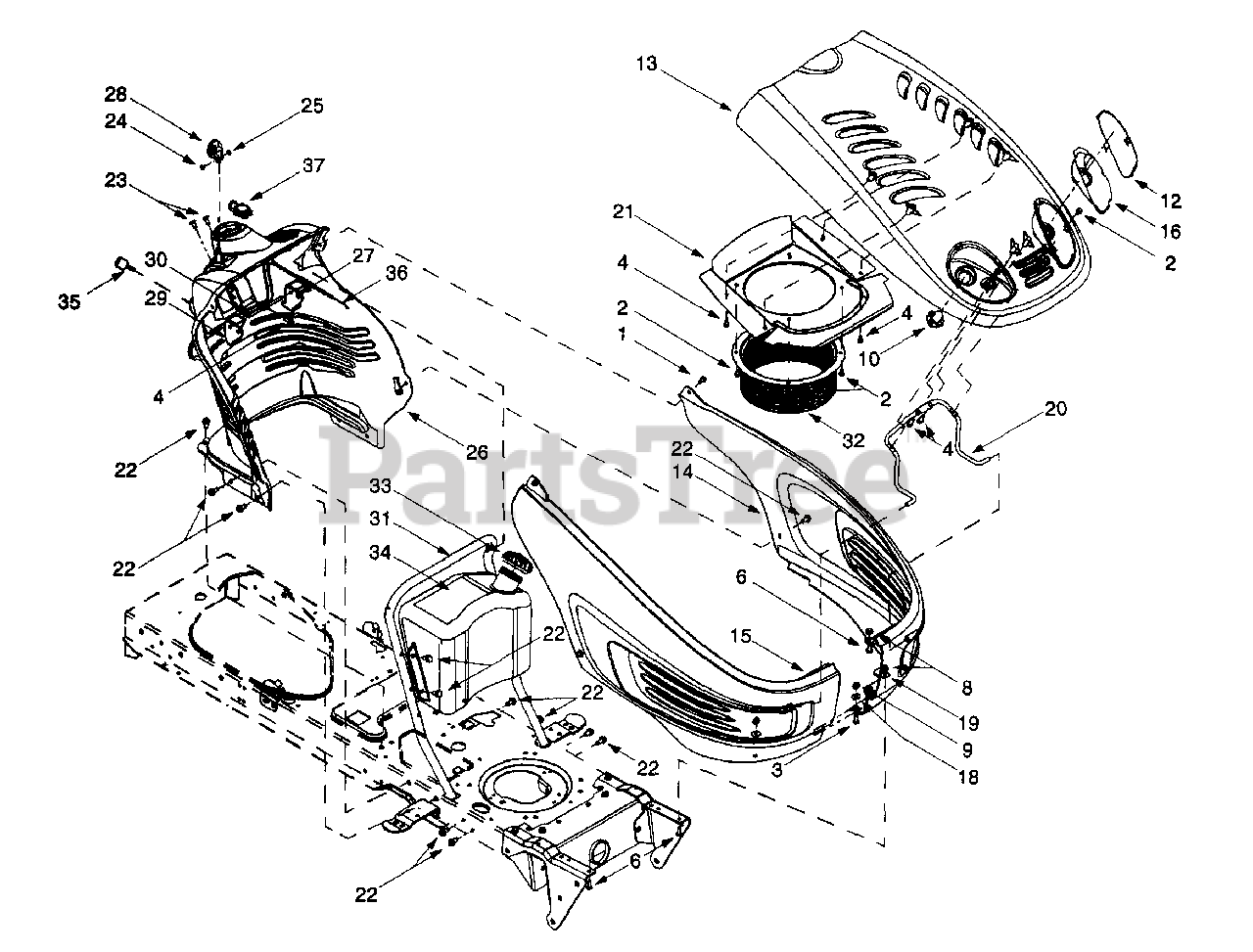

Hood Style/Fuel Tank Parts Diagram

  • Title
1

Troy-Bilt 710-0788

Self Tapping Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

2

Troy-Bilt 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0895

Self Tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

?5

Troy-Bilt 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

?7

Troy-Bilt 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 725-1649

Head Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

?11

Troy-Bilt 731-1978

RH Head Light Lens
(Superseded to 931-1978)

$17.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-1979

LH Head Light Lens
(Superseded to 931-1979)

$17.99

$

Usually ships in 3-6 days

0

13

MTD 731-2238

Hood, 4-style Red

$

$

Not available

14

MTD 753-0859

RH & LH Side Panels, 4-style Red, Kit

$

$

Not available

15

MTD 753-0859

LH & RH Side Panels, 4-style Red, Kit

$

$

Not available

16

Troy-Bilt 731-1995

LH Head Light Reflector
(Superseded to 777X41432)

$

$

Not available

?17

Troy-Bilt 731-1996

RH Head Light Reflector
(Superseded to 777X41432)

$

$

Not available

18

Troy-Bilt 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 747-1132

Hood Support Rod
(Superseded to 747-1132A)

$

$

Not available

21

Troy-Bilt 783-0808

Heat Shield, 4-style
(Superseded to 783-0808A-0637)

Variations

Troy-Bilt 783-0808-0637

SHIELD-HEAT STYLE - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-1017

Torx Self Tapping Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

24

Troy-Bilt 710-3217

Torx Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

25

Troy-Bilt 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 10

0

26

Troy-Bilt 731-0071

Dash Panel, 4-style
(Superseded to 731-0071E)

$

$

Not available

27

MTD 731-0072

Parking Brake Button

$

$

Not available

28

Troy-Bilt 731-1857

Throttle Control Lever

$14.99

$

In Stock, only 4 left!

0

29

MTD 731-2106

Cruise Control Button

$

$

Not available

30

Troy-Bilt 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 749-1087

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

Troy-Bilt 749-1087-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

32

Troy-Bilt 731-2232

Intake Bellow
(Superseded to 731-2232A)

Note: (Kohler and Intek Single)

$

$

Not available

Troy-Bilt 731-2234

Intake Bellow
(Superseded to 731-2234A)

Note: (Intek Twin)

$29.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 751-0603

Fuel Cap
(Superseded to 751-0603B)

Note: (For Two Gallon Tank, Shown)

$23.99

$

In Stock, only 3 left!

0

Troy-Bilt 751-0649

Fuel Cap

Note: (For Three Gallon Tank)

$

$

Not available

34

Troy-Bilt 751-0659

Fuel Tank
(Superseded to 751-0659D)

Note: (Two Gallon, Shown)

$84.99

$

In Stock, Qty 5

0

MTD 751-0658

Fuel Tank

Note: (Three Gallon)

$

$

Not available

35

Troy-Bilt 725-1745

Ignition Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 746-1084

Choke/Throttle Cable
(Superseded to 946-1084)

Note: (Intek Single)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 746-1085

Choke Cable
(Superseded to 946-1085A)

Note: (Intek Twin)

$30.99

$

In Stock, only 1 left!

0

Troy-Bilt 746-1088

Choke Cable
(Superseded to 946-1088)

Note: (Kohler)

$29.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0
