13AX935T004 - MTD Gold Lawn Tractor (2014) Seat & Fender Parts Diagram

Gold Lawn Tractor

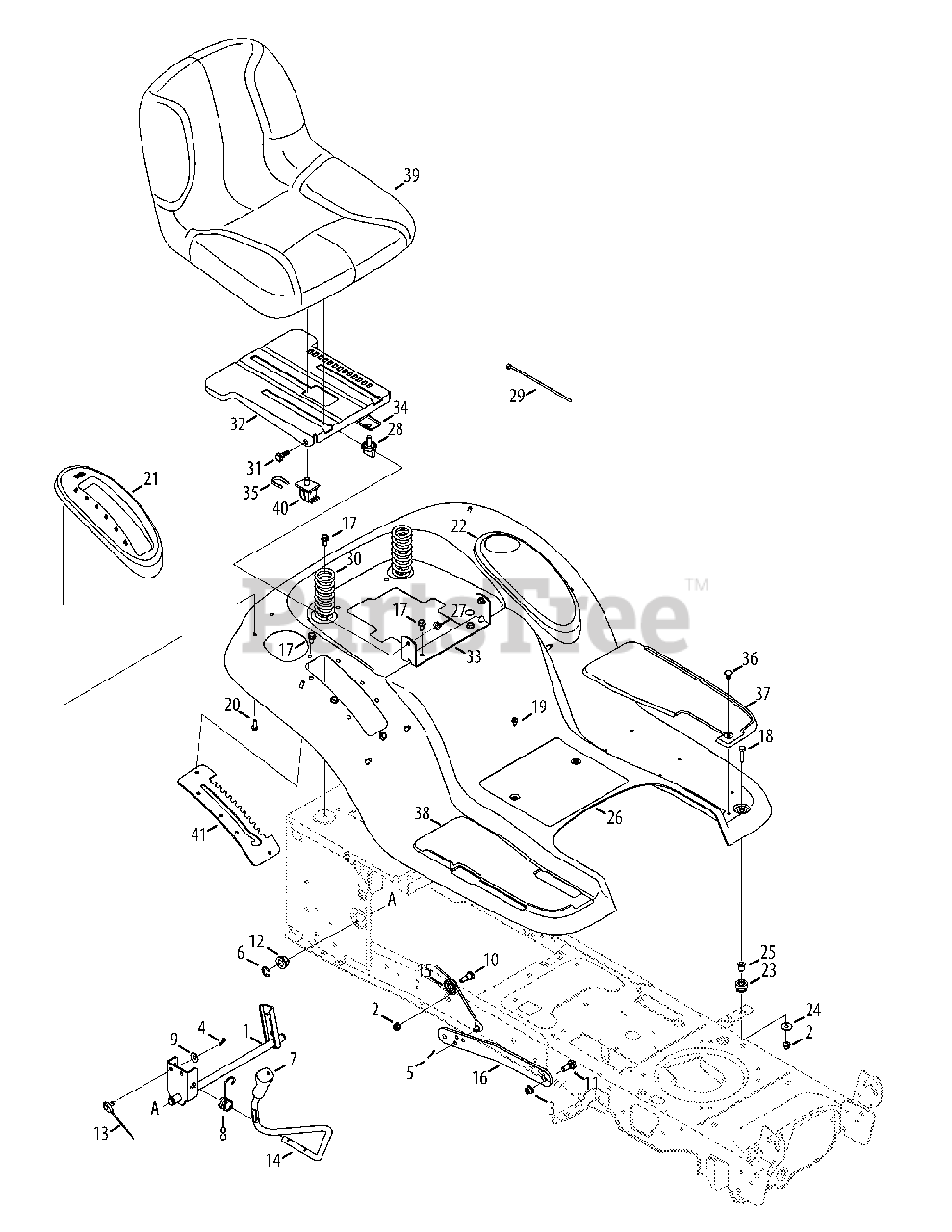

Seat & Fender Parts Diagram

  • Title

1

MTD 683-04223-0637

Shaft Ass’y, Lift

$

$

Not available

2

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

4

MTD 914-0104

Pin, Cotter, .072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

MTD 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

6

MTD 716-0106A

Ring, E Type, .625 Dia. Shaft

$5.49

$

In Stock, only 2 left!

0

7

MTD 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 2 left!

0

8

MTD 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

9

MTD 736-0105

Washer, Spring, .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

10

MTD 738-0138A

Screw, Shoulder, .437 x .470, 5/16-18

$6.99

$

Usually ships in 3-6 days

0

11

MTD 938-0380

Bolt, Shoulder, .500, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

12

MTD 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

13

MTD 746-0968

Cable, Lift, 16.16

$19.99

$

In Stock, Qty 20+

0

14

MTD 747-04962A

Handle, Lift,

$37.99

$

In Stock, only 1 left!

0

15

MTD 756-04331

Pulley, Roller, Cable

$6.99

$

In Stock, Qty 16

0

16

MTD 783-05546A-0637

Lift Link

$20.99

$

In Stock, only 2 left!

0

17

MTD 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0895

Screw, HL, 1/4-15, 0.750,

$6.49

$

In Stock, Qty 5

0

21

MTD 731-06795

Cover, Lift Lever

$24.99

$

Usually ships in 3-6 days

0

22

MTD 731-1993A

Cover w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

23

MTD 735-0690

Grommet, .4375 ID x .750

$11.99

$

In Stock, only 1 left!

0

24

MTD 736-3078

Washer, Flat .344 x 1.00 x .063

$4.49

$

In Stock, only 4 left!

0

25

MTD 750-3310

Spacer, Flange, .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0

26

MTD 783-06259-0691

Fender

$

$

Not available

27

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5, Sd Lk

$3.99

$

In Stock, Qty 20+

0

28

MTD 720-04061

Knob, 3/8-16, .875

$5.49

$

In Stock, Qty 20+

0

29

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

30

MTD 732-04849

Spring, Comprs, 1.50 x 3.90 x .200

$13.99

$

In Stock, only 2 left!

0

31

MTD 938-0296

Screw, Shoulder, .437 x .268, 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

32

MTD 783-06049-0691

Bracket, Mounting, Seat
(Superseded to 783-06049-0637)

$68.99

$

Usually ships in 3-6 days

0

33

MTD 783-06088A-0691

Bracket, Pivot, Seat
(Superseded to 783-06088A-0637)

$21.99

$

Usually ships in 3-6 days

0

34

MTD 783-06266-0637

Bracket, Knob Adjustment, Seat

$8.99

$

Usually ships in 3-6 days

0

35

MTD 783-06448

Clip, Retaining, Switch

$5.99

$

In Stock, only 3 left!

0

36

MTD 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 16

0

37

MTD 735-04138

Pad, Foot, LH

$16.99

$

Usually ships in 3-6 days

0

38

MTD 735-04158

Pad, Foot, RH

$16.99

$

Usually ships in 3-6 days

0

39

MTD 757-04086

Seat, Medium Back
(Superseded to 757-05232)

$290.99

$

Usually ships in 3-6 days

0

40

MTD 925-05013

Switch, Seat

$31.99

$

In Stock, only 2 left!

0

41

MTD 783-06443-0637

Bracket, Lift, Man PTO, 6 Pos

$20.99

$

Usually ships in 3-6 days

0
