13AX91RS848 (LX 427) - Toro Lawn Tractor (2012) SEAT, FENDER AND DECK LIFT ASSEMBLY Parts Diagram

Lawn Tractor

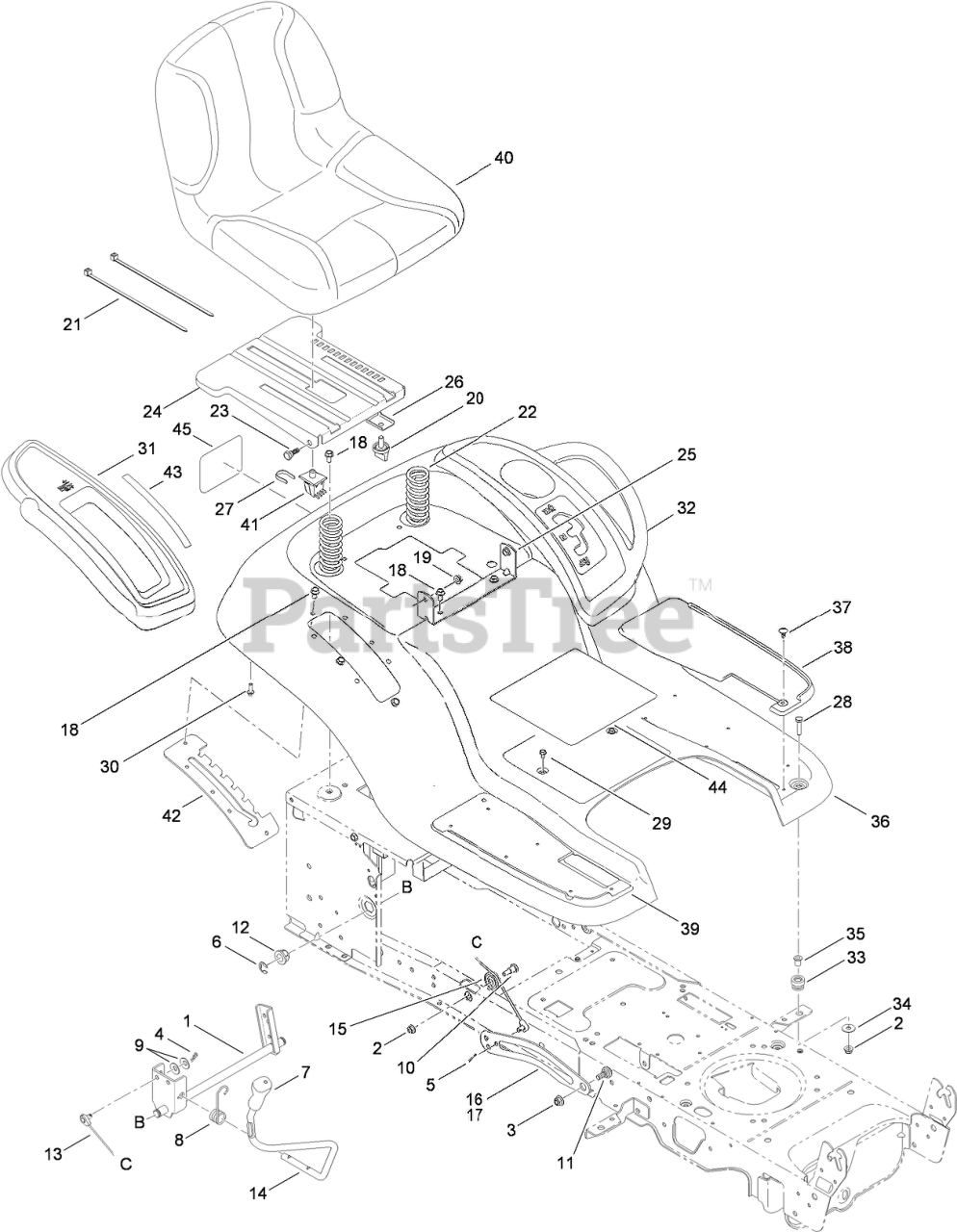

SEAT, FENDER AND DECK LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 112-5969

LIFT SHAFT ASM

$82.99

$

Usually ships in 3-6 days

0

2

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

3

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 9

0

4

Toro 112-0459

PIN-COTTER

$

$

Not available

5

Toro 112-0990

PIN-COTTER

$7.49

$

Usually ships in 3-6 days

0

6

Toro 112-0586

RING-E

$8.49

$

Usually ships in 3-6 days

0

7

Toro 112-0585

GRIP-HANDLE

$

$

Not available

8

Toro 112-0477

SPRING-TORSION

$

$

Not available

9

Toro 112-0660

WASHER-SPRING

$7.99

$

In Stock, Qty 5

0

10

Toro 112-0443

BOLT-SHOULDER

$

$

Not available

11

Toro 112-0669

BOLT-SHOULDER

$

$

Not available

12

Toro 112-0347

BEARING-FLANGE

$17.99

$

Usually ships in 3-6 days

0

13

Toro 112-0374

CABLE-LIFT

$43.99

$

In Stock, Qty 5

0

14

Toro 119-3998

HANDLE-LIFT

$82.99

$

Usually ships in 3-6 days

0

15

Toro 119-3999

PULLEY-CABLE

$11.99

$

Usually ships in 3-6 days

0

16

Toro 119-8471

ARM-LIFT, RH

$46.99

$

Usually ships in 3-6 days

0

17

Toro 119-8472

ARM-LIFT, LH

$

$

Not available

18

Toro 112-6070

SCREW-TAP

$7.49

$

Usually ships in 3-6 days

0

19

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

20

Toro 112-0409

KNOB

$11.99

$

In Stock, only 2 left!

0

21

Toro 112-0527

TIE-CABLE

$7.99

$

Usually ships in 3-6 days

0

22

Toro 121-5737

SPRING-COMPRESSION

$

$

Not available

23

Toro 112-0575

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

24

Toro 112-6214

BRACKET-MOUNT, SEAT

$

$

Not available

25

Toro 112-6217

BRACKET-PIVOT, SEAT

$33.99

$

Usually ships in 3-6 days

0

26

Toro 112-6216

BRACKET-KNOB, ADJUSTMENT

$10.99

$

Usually ships in 3-6 days

0

27

Toro 119-8400

CLIP-RETENSION

$

$

Not available

28

Toro 112-0373

SCREW-HH

$7.99

$

In Stock, only 4 left!

0

29

Toro 112-0524

SCREW-HWHTF

$7.99

$

In Stock, Qty 5

0

30

Toro 112-0509

SCREW-TAP

$11.99

$

In Stock, only 3 left!

0

31

Toro 112-6212

COVER-FENDER, RH

$

$

Not available

32

Toro 112-6065

COVER-FENDER, LH (W/CUPHOLDER)

$

$

Not available

33

Toro 112-3732

GROMMET

$17.99

$

Usually ships in 3-6 days

0

34

Toro 112-0582

WASHER-FLAT

$

$

Not available

35

Toro 112-3733

SPACER

$

$

Not available

36

Toro 119-8486

FENDER

$

$

Not available

37

Toro 112-5988

CLIP-RATCHET

$6.99

$

Usually ships in 3-6 days

0

38

Toro 119-8402

PAD-FOOT, LH

$

$

Not available

39

Toro 119-8403

PAD-FOOT, RH

$

$

Not available

40

Toro 112-6215

SEAT-HIGH

$

$

Not available

41

Toro 119-8404

SWITCH-SEAT

$76.99

$

Usually ships in 3-6 days

0

42

Toro 119-8405

BRACKET-LIFT

$

$

Not available

43

Toro 119-8484

DECAL-HOC AND PTO

$

$

Not available

44

Toro 119-8481

DECAL-SAFETY

$

$

Not available

45

Toro 119-9050

DECAL-TORO

$

$

Not available
