13AX91RS848 (LX 427) - Toro Lawn Tractor (2012) 42 INCH DECK ASSEMBLY Parts Diagram

Lawn Tractor

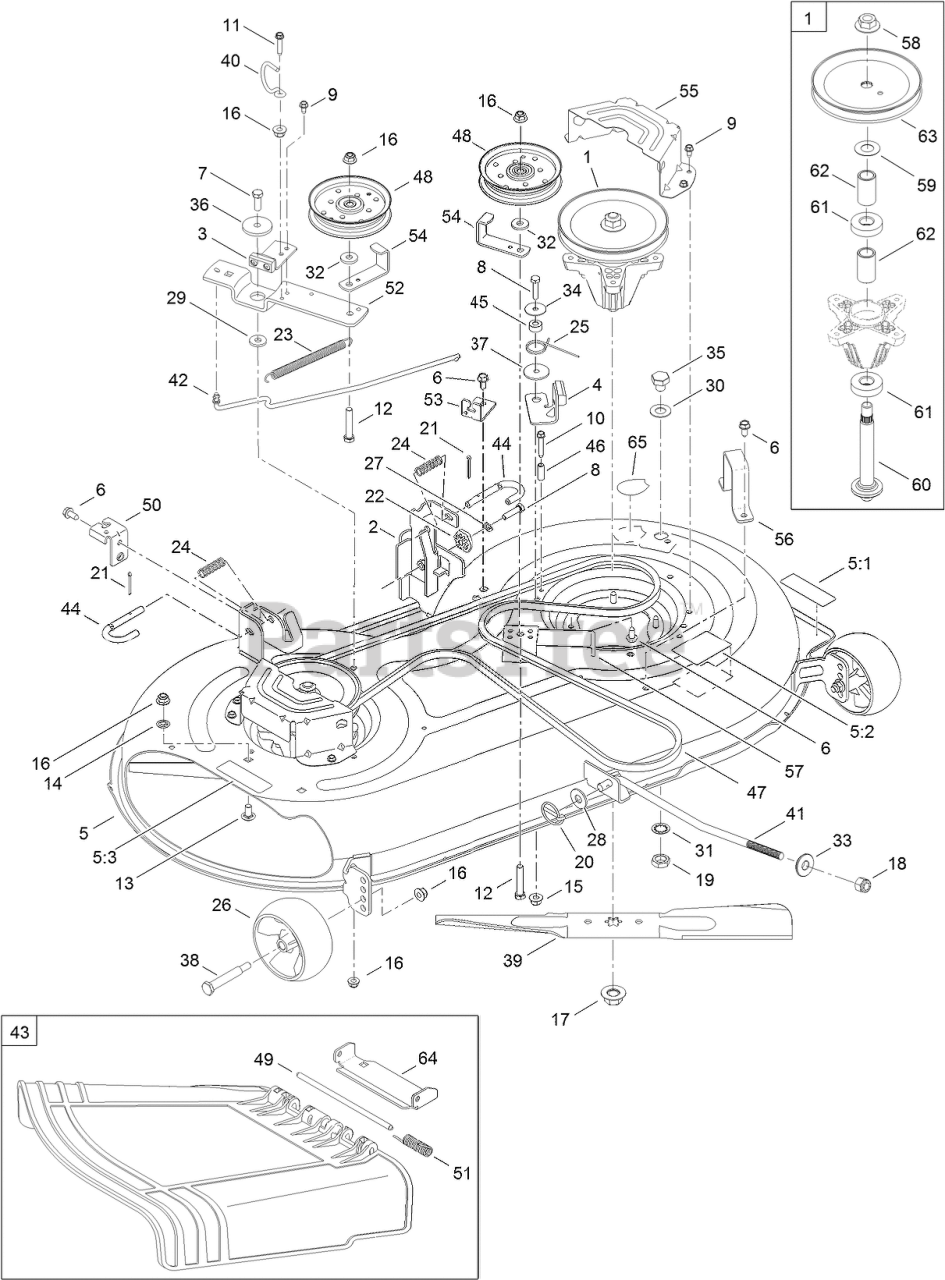

42 INCH DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 119-8445

SPINDLE PULLEY ASM

$218.99

$

In Stock, Qty 5

0

2

Toro 112-0413

LH HANGER BRACKET ASM

$81.99

$

In Stock, only 3 left!

0

3

Toro 119-8446

DECK BRAKE ASM

$108.99

$

Usually ships in 3-6 days

0

4

Toro 119-8447

DECK BRAKE ASM

$64.99

$

Usually ships in 3-6 days

0

5

Toro 119-8448

DECK ASM

$853.99

$

Usually ships in 3-6 days

0

5:1

Toro 112-6284

DECAL-DECK

$

$

Not available

5:2

Toro 119-8476

DECAL-BELT ROUTING

$12.99

$

Usually ships in 3-6 days

0

5:3

Toro 112-6285

DECAL-CHUTE

$

$

Not available

6

Toro 112-6070

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

7

Toro 112-0492

SCREW-HH

$7.49

$

In Stock, only 2 left!

0

8

Toro 112-0373

SCREW-HH

$7.49

$

In Stock, only 4 left!

0

9

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

10

Toro 112-0843

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 112-0587

SCREW-TAP

$7.49

$

In Stock, Qty 10

0

12

Toro 112-0421

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

13

Toro 112-0452

BOLT-CARR

$7.49

$

Usually ships in 3-6 days

0

14

Toro 112-0440

NUT-PUSH

$5.99

$

Usually ships in 3-6 days

0

15

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

16

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

17

Toro 112-0330

NUT-LOCK, FLANGE

$11.99

$

In Stock, Qty 9

0

18

$7.99

$

Usually ships in 3-6 days

0

19

Toro 112-0351

NUT-HEX

$10.99

$

Usually ships in 3-6 days

0

20

Toro 119-8450

PIN-LYNCH

$19.99

$

Usually ships in 3-6 days

0

21

Toro 112-0412

PIN-COTTER

$7.49

$

Usually ships in 3-6 days

0

22

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$25.99

$

In Stock, only 1 left!

0

23

Toro 119-8473

SPRING-EXTENSION

$29.99

$

Usually ships in 3-6 days

0

24

Toro 119-8451

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

25

Toro 125-0082

SPRING-TORSION

$

$

Currently unavailable

26

Toro 112-0677

WHEEL-DECK, FRONT

$28.99

$

In Stock, Qty 5

0

27

Toro 112-0366

WASHER-LOCK

$

$

Not available

28

Toro 119-8453

WASHER-FLAT

$

$

Not available

29

Toro 119-8454

WASHER-FLAT

$8.99

$

Usually ships in 3-6 days

0

30

Toro 112-0339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

31

Toro 112-0643

WASHER-LOCK

$6.99

$

Usually ships in 3-6 days

0

32

Toro 112-0541

Washer-Flat

$7.49

$

Usually ships in 3-6 days

0

33

Toro 119-8455

WASHER-BELLVILLE

$12.99

$

Usually ships in 3-6 days

0

34

Toro 112-0500

WASHER-FLAT

$7.49

$

In Stock, only 4 left!

0

35

$

$

Not available

36

Toro 112-0584

SPACER-SHOULDER

$43.99

$

In Stock, only 2 left!

0

37

Toro 112-0410

SPACER-SHOULDER

$6.99

$

In Stock, Qty 7

0

38

Toro 112-0325

BOLT-SHOULDER

$19.99

$

Usually ships in 3-6 days

0

39

Toro 119-8456

BLADE-2 IN 1

$51.99

$

In Stock, only 2 left!

0

40

Toro 119-9140

ROD-KEEPER, BELT

$

$

Not available

41

Toro 119-8457

ROD-LIFT, DECK

$51.99

$

Usually ships in 3-6 days

0

42

Toro 119-8458

ROD-BRAKE

$28.99

$

Usually ships in 3-6 days

0

43

Toro 119-8459

CHUTE ASM

$112.99

$

Usually ships in 3-6 days

0

44

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$23.99

$

In Stock, only 2 left!

0

45

Toro 121-5743

SHOULDER-SPACER

$

$

Not available

46

Toro 112-0644

SPACER

$

$

Not available

47

Toro 112-0340

BELT - V

$134.99

$

Usually ships in 3-6 days

0

48

Toro 112-0314

PULLEY-IDLER

$63.99

$

In Stock, only 4 left!

0

49

Toro 119-8461

PIN-HINGE

$18.99

$

Usually ships in 3-6 days

0

50

Toro 119-8462

BRACKET-CABLE, DECK ENGAGE

$

$

Not available

51

Toro 119-8463

SPRING-TORSION

$12.99

$

Usually ships in 3-6 days

0

52

Toro 119-8464

BRACKET-PIVOT, IDLER

$71.99

$

Usually ships in 3-6 days

0

53

Toro 119-8465

BRACKET-CABLE, DECK ENGAGE

$10.99

$

In Stock, only 1 left!

0

54

Toro 119-8466

BRACKET-GUARD, BELT

$43.99

$

Usually ships in 3-6 days

0

55

Toro 119-8467

COVER-BELT

$19.99

$

In Stock, only 3 left!

0

56

Toro 119-8468

STOP-LH

$

$

Not available

57

Toro 119-8469

BRACKET-SUPPORT, IDLER

$18.99

$

Usually ships in 3-6 days

0

58

Toro 112-0330

NUT-LOCK, FLANGE

$11.99

$

In Stock, Qty 9

0

59

Toro 112-0813

WASHER-THRUST

$

$

Not available

60

Toro 112-6278

SHAFT-SPINDLE

$80.99

$

Usually ships in 3-6 days

0

61

Toro 112-0377

BEARING-BALL

$33.99

$

In Stock, only 3 left!

0

62

Toro 112-6252

SPACER

$9.99

$

In Stock, only 2 left!

0

63

Toro 112-0613

PULLEY-DECK

$58.99

$

In Stock, only 2 left!

0

64

Toro 119-9051

BRACKET-PIVOT, CHUTE

$27.99

$

Usually ships in 3-6 days

0

65

Toro 119-8474

DECAL-DECK WASH SYSTEM

$

$

Not available
