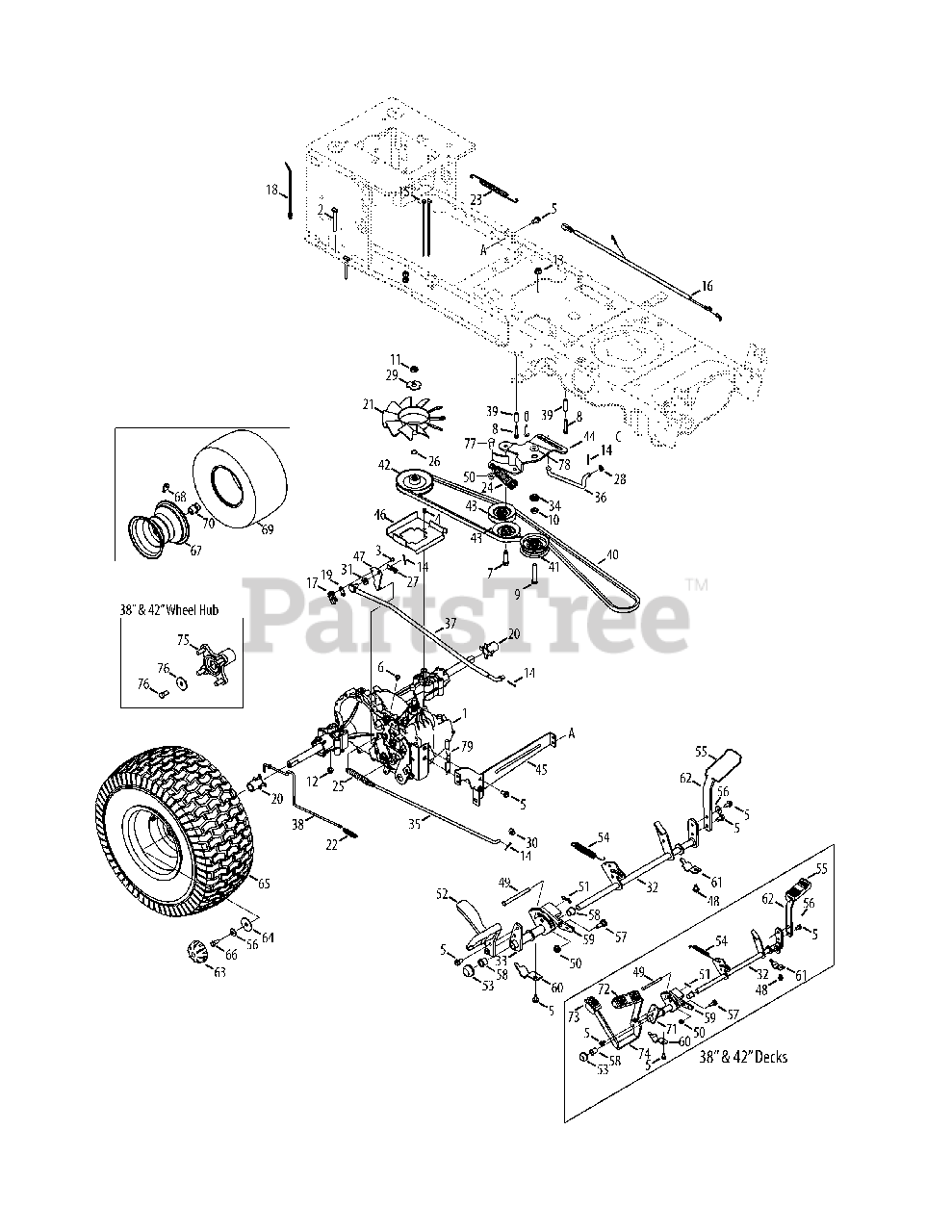

13AX915T004 - MTD Gold Lawn Tractor (2011) Drive & Rear Wheels Parts Diagram

Gold Lawn Tractor

Drive & Rear Wheels Parts Diagram

  • Title

1

MTD 918-0319

Hydro Transmission

$

$

Not available

2

MTD 710-0176

Hex Screw, 5/16-18:2.75

$4.49

$

In Stock, only 2 left!

0

3

MTD 710-0227

Screw, #8-18:0.500

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0351

Screw, #10-16:0.500

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-04484

Taptite Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0653

Taptite Screw, 1/4-20:0.375

$4.49

$

In Stock, Qty 8

0

7

MTD 710-1007

Screw, Sems, 3/8-16, 1.500

$6.49

$

In Stock, only 1 left!

0

8

MTD 710-1325

Taptite Screw, 1/4-20:1.625

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3011

Hex Screw, 3/8-16:2.25

$6.99

$

In Stock, Qty 20+

0

10

MTD 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

11

MTD 912-0346

Nut, Jamlock, 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

12

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 912-0431

Flangelock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

14

MTD 914-0111

Cotter Pin, 3/32:1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

15

MTD 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, Qty 20+

0

16

MTD 725-04791A

Jumper Harness

$15.99

$

Usually ships in 3-6 days

0

17

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

18

MTD 926-0154

Push Mount Cable Tie 7.5 LG

$6.49

$

Usually ships in 3-6 days

0

19

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

20

MTD 731-05299A

Sleeve, .765 ID x 1.500 LG, 46"

$4.49

$

In Stock, only 3 left!

0

21

MTD 731-06098

Hydro Fan

$19.99

$

In Stock, Qty 20+

0

22

MTD 932-0209

Extension Spring, .48 OD X 2.03

$7.99

$

In Stock, only 2 left!

0

23

MTD 732-04606

Extension Spring, .500 DIA X 12.6 LG

$12.99

$

In Stock, only 2 left!

0

24

MTD 732-04624

Extension Spring, 1.00 DIA X 4.75

$10.99

$

Usually ships in 3-6 days

0

25

MTD 732-0716D

Extension Spring, .59 OD X 4.00 LG

$13.99

$

Usually ships in 3-6 days

0

26

MTD 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

27

MTD 732-3118

Extension Spring, .375 OD X 1.44 LG

$10.99

$

In Stock, only 1 left!

0

28

MTD 936-0264

Washer, Flat, .330 X .630 X .0635

$6.99

$

In Stock, only 3 left!

0

29

MTD 736-04263

Washer, Lock, TRANS HYDRO

$6.99

$

In Stock, Qty 20+

0

30

MTD 936-3008

Washer, Flat, .344 X .750 X .120

$6.99

$

Usually ships in 3-6 days

0

31

MTD 736-3010

Washer, Flat, .407X.812X.135:HT

$4.99

$

In Stock, Qty 20+

0

32

MTD 647-04152A

Brake Control Assembly, 46"
(Superseded to 647-04152D)

$

$

Not available

33

MTD 683-04537

Hydro Pedal Bracket Assembly
(Superseded to 683-04537A)

$

$

Not available

34

MTD 738-04420

Spacer, Shoulder, 1.375 X .380 X .183

$6.99

$

In Stock, only 3 left!

0

35

MTD 747-04139

Rod, Brake, Hydro

$24.99

$

In Stock, only 1 left!

0

36

MTD 747-04957A

Rod, Transmission, Footpedal Bypass

$13.99

$

Usually ships in 3-6 days

0

37

MTD 747-04979

Rod, Control, Hydro

$116.99

$

Usually ships in 3-6 days

0

38

MTD 747-04991

Rod, Hydro Bypass

$9.99

$

Usually ships in 3-6 days

0

39

MTD 750-04456

Spacer, .260 X .372 X 1.420 LG

$7.49

$

In Stock, only 3 left!

0

40

MTD 954-04207

Belt, V Type, Poly

$38.99

$

In Stock, Qty 20+

0

41

MTD 756-04224

Pulley, Idler, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

42

MTD 756-04308

Pulley, Input, 4.13 DIA

$31.99

$

In Stock, Qty 20+

0

43

MTD 756-04325

Pulley, Idler, V-Type x 3.06

$24.99

$

In Stock, Qty 20+

0

44

MTD 783-06027A

Bracket, Idler, Center Double
(Superseded to 783-06027B)

$

$

Not available

45

MTD 783-06133-0637

Bracket, Mount, Hydro

$31.99

$

Usually ships in 3-6 days

0

46

MTD 783-06260-0637

Bracket, Support, Belt Disengage

$

$

Not available

47

MTD 783-1019B

Switch Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

48

MTD 710-0604A

Taptite Screw, 5/16-18:0.625

$4.49

$

In Stock, Qty 20+

0

49

MTD 711-05068

Clevis Pin, 5/16 x 3.985
(Superseded to 711-05068A)

$7.99

$

Usually ships in 3-6 days

0

50

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

51

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

52

MTD 719-0584B-0637

Control Pedal

$60.99

$

In Stock, only 1 left!

0

53

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

54

MTD 732-04587

Extension Spring, .63 DIA x 4.95 LG

$7.49

$

In Stock, Qty 12

0

55

MTD 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0

56

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

57

MTD 938-0380

Shoulder Bolt, .500 x .270:3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

58

MTD 741-0495

Flange Bearing, .630 ID x .695 OD x .60

$4.99

$

In Stock, Qty 20+

0

59

MTD 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

60

MTD 783-05914

Pedal Support Bracket

$7.49

$

Usually ships in 3-6 days

0

61

MTD 783-05940

Pedal Support Bracket, 5/8

$7.49

$

Usually ships in 3-6 days

0

62

MTD 783-06103A-0637

Brake Pedal Bracket

$17.99

$

Usually ships in 3-6 days

0

63

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

64

MTD 736-0430

Washer, Flat, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

65

MTD 634-0104-0911

Wheel Assembly

$144.99

$

In Stock, only 1 left!

0

66

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

67

MTD 634-04369-0662

Rim Assembly, Plastic Bead, 46"

$165.99

$

Usually ships in 3-6 days

0

68

MTD 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

69

MTD 734-1730-0901

Tire, 20 x 8 x 8, 38" & 46"

$99.99

$

In Stock, only 1 left!

0

70

MTD 941-0490

Axle Hub

$13.99

$

In Stock, Qty 20+

0

71

MTD 683-04488

Hydro Pedal Bracket Assembly
(Superseded to 983-04488)

$40.99

$

In Stock, only 4 left!

0

72

MTD 735-04118A

Reverse Pedal Pad

$14.99

$

Usually ships in 3-6 days

0

73

MTD 735-04135

Forward Pedal Pad

$7.99

$

In Stock, Qty 8

0

74

MTD 783-06059-0637

Drive Pedal Bracket

$50.99

$

Usually ships in 3-6 days

0

75

N/A

Wheel Assembly Hub, 38" & 42"

Note: Not used in this application

$

$

Not available

76

MTD 710-0627

Hex Screw, 5/16-24:.750

Note: Not used in this application

$4.49

$

In Stock, Qty 20+

0

76

MTD 736-0242

Washer, Bell, .340 x .872 x .060

Note: Not used in this application

$4.49

$

In Stock, Qty 20+

0

77

MTD 738-0430

Scr, Shldr, .50 x .685 3/8-16

$11.99

$

In Stock, only 2 left!

0

78

MTD 936-0344

Washer, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

79

MTD 747-05444

Belt Keeper Rod
(Superseded to 747-05444A)

$10.99

$

In Stock, only 1 left!

0
