13AX90YT001 - Yard-Man Lawn Tractor (2010) Fuel Tank, Hood & Dash Parts Diagram

Lawn Tractor

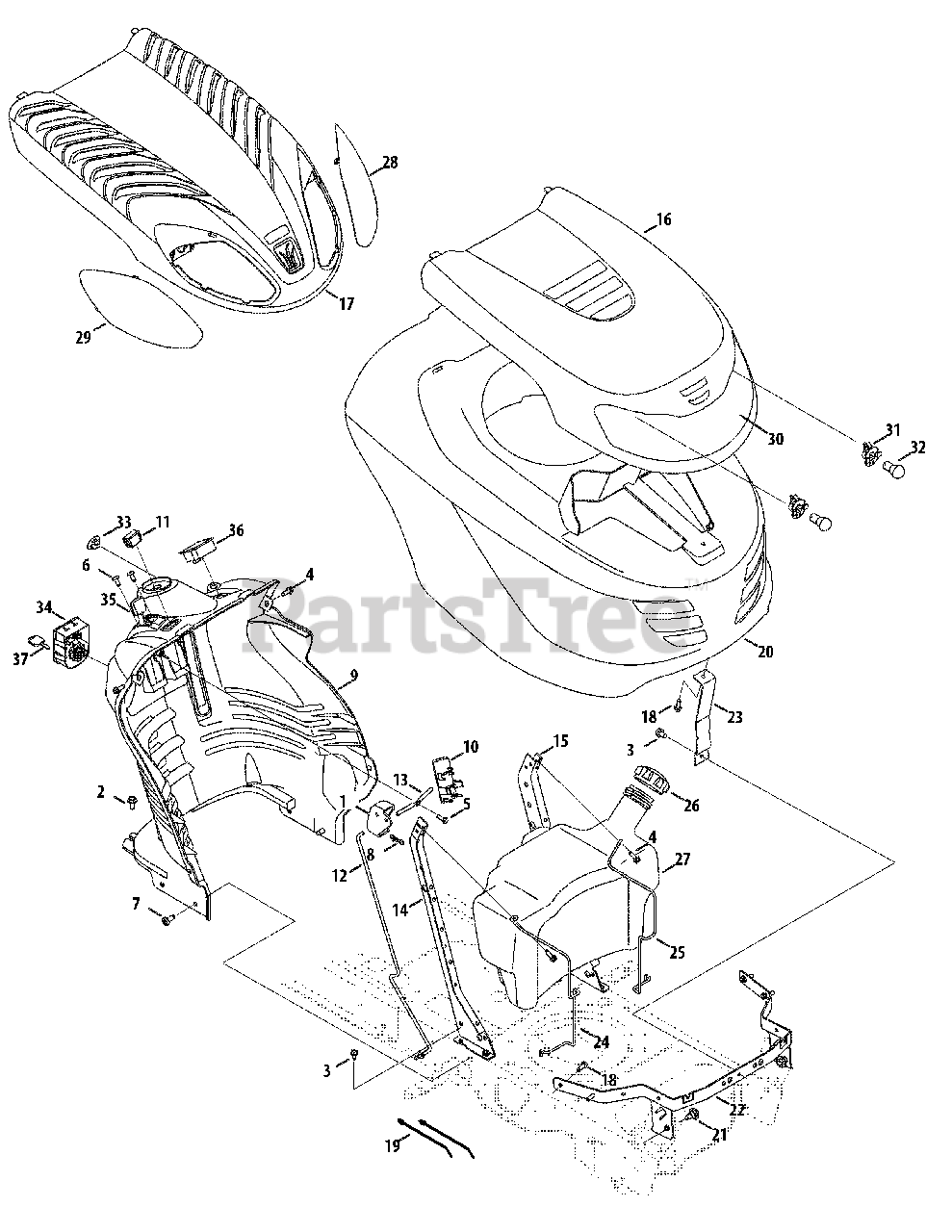

Fuel Tank, Hood & Dash Parts Diagram

  • Title

1

MTD 631-04353P

Lever, Dash, Y/G Style
(Superseded to 631-04353A)

$23.99

$

Usually ships in 3-6 days

0

2

MTD 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0642

Screw, Self-tapping, 1/4-20, 0.750,

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0895

Screw, HL, 1/4-15, 0.750,

$6.49

$

In Stock, Qty 10

0

6

MTD 710-1017

Screw, Ab, 1/4-14, 0.625

$8.49

$

In Stock, Qty 9

0

7

MTD 710-1611B

Screw, Self-tapping, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

8

MTD 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

9

MTD 931-06495

Panel, Dash, Man PTO
(Superseded to 931-06495A)

$

$

Not available

10

MTD 731-06643

Cover, Cruise, Y/G Style

$6.49

$

Usually ships in 3-6 days

0

11

MTD 731-07042

Cap, Light Switch Null

$9.99

$

Usually ships in 3-6 days

0

12

MTD 747-05008

Rod, Control, Latch

$16.99

$

Usually ships in 3-6 days

0

13

MTD 747-1155

Rod, Lever, Brake/Cruise Pivot

$13.99

$

Usually ships in 3-6 days

0

14

MTD 783-04285F-0637

Support, Dash, Plate, RH

$

$

Not available

15

MTD 783-04323F-0637

Support, Dash, Plate LH

$34.99

$

Usually ships in 3-6 days

0

16

MTD 931-04308

Hood, Upper, G-Style

$104.99

$

Usually ships in 3-6 days

0

17

MTD 931-04307

Hood, Upper, Y-Style (Yellow)

$

$

Not available

17

MTD 931-07703

Hood, Upper, Y-Style (Gray)

$48.99

$

Usually ships in 3-6 days

0

18

MTD 710-05108

Screw, Bos, 1/4 Dia, .750,

$3.99

$

In Stock, Qty 20+

0

19

MTD 926-0154

Tie, Cable, Push Mount 7.5

$6.49

$

Usually ships in 3-6 days

0

20

MTD 931-06473

Hood, Side Tank, Y-Style

$

$

Not available

20

MTD 931-06538

Hood, Side Tank, Y-Style (Gray)

$202.99

$

Usually ships in 3-6 days

0

21

MTD 738-04091A

Screw, Shoulder, .43x.29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

MTD 783-04606C-0637

Bracket, Pivot, Hood

$48.99

$

In Stock, only 1 left!

0

23

MTD 783-06117-0637

Bracket, Support, Hood

$

$

Not available

24

MTD 747-05049

Rod, Support, RH Tank

$10.99

$

Usually ships in 3-6 days

0

25

MTD 747-05050

Rod, Support, LH Tank

$

$

Not available

26

MTD 751-0603A

Cap, Fuel
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

27

MTD 951-10573

Tank, Fuel, 2.75 Gal

$214.99

$

Usually ships in 3-6 days

0

28

MTD 931-06540

Lens, Y-Style, LH

$14.99

$

Usually ships in 3-6 days

0

29

MTD 931-06539

Lens, Y-Style, RH

$16.99

$

Usually ships in 3-6 days

0

30

MTD 931-06564

Lens, Hood, G-Style

$44.99

$

Usually ships in 3-6 days

0

31

MTD 925-1649

Socket, Lamp
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

32

MTD 925-0963

Lamp, 12v

$7.49

$

In Stock, Qty 5

0

33

MTD 731-1999

Plug, Choke

$10.99

$

Usually ships in 3-6 days

0

34

MTD 925-04227B

Module Switch, Ignition
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

35

MTD 746-04364

Cable, Throttle/Choke

$48.99

$

In Stock, only 3 left!

0

36

MTD 925-04036C

Meter, Indicator
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

37

MTD 925-1745A

Key, Ignition

$17.99

$

In Stock, Qty 20+

0
