13AX90RS848 (LX 423) - Toro Lawn Tractor (2012) TRANSMISSION, BELT AND DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

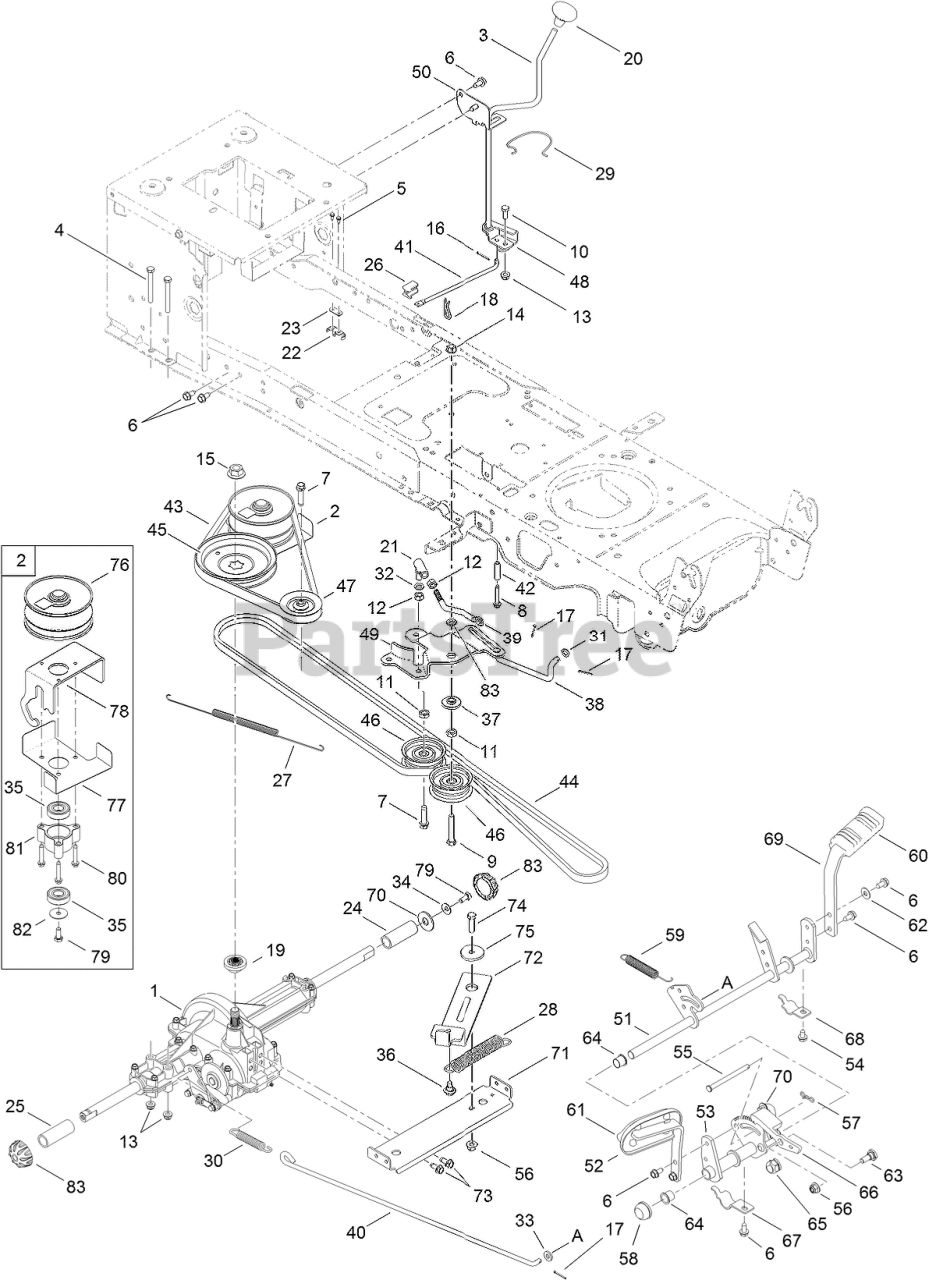

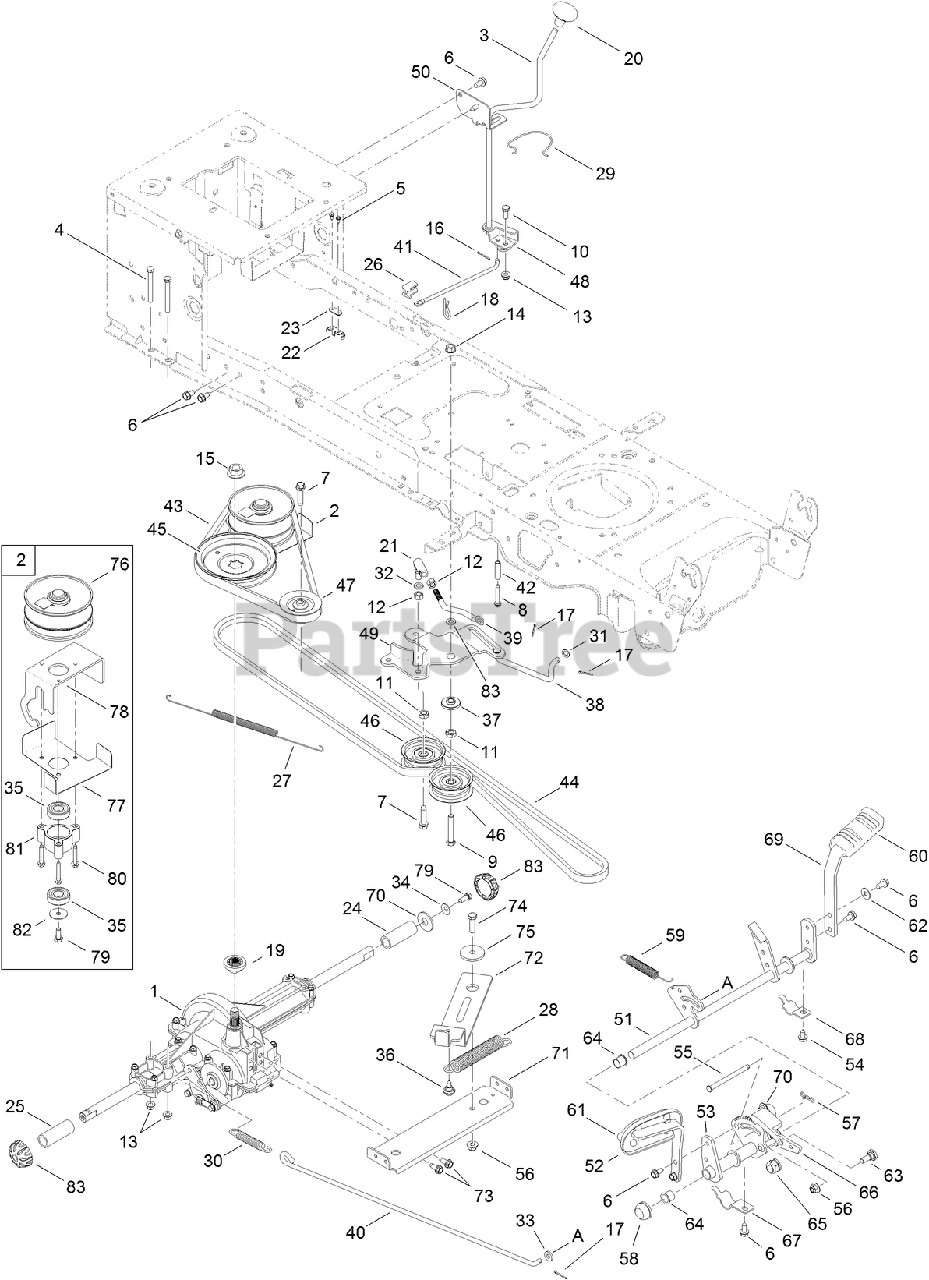

TRANSMISSION, BELT AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 112-6256

TRANSMISSION DRIVE ASM

$1509.99

$

Usually ships in 3-6 days

0

2

VARIABLE SPEED PULLEY ASM

Note: Not serviced separately

$

$

Not available

3

Toro 119-8414

SHIFT LEVER ASM

$81.99

$

Usually ships in 3-6 days

0

4

Toro 112-0714

SCREW-HEX

$

$

Not available

5

Toro 112-0626

SCREW-HWHTF

$7.99

$

In Stock, only 3 left!

0

6

Toro 112-6070

SCREW-TAP

$7.49

$

Usually ships in 3-6 days

0

7

Toro 112-0469

SCREW-TAP

$

$

Not available

8

Toro 112-5828

SCREW-HH

$9.49

$

In Stock, Qty 5

0

9

Toro 112-6009

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

10

Toro 119-8415

SCREW

$

$

Not available

11

Toro 112-0493

NUT-JAM

$7.99

$

In Stock, only 4 left!

0

12

Toro 112-0343

NUT-HEX

$

$

Not available

13

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

14

Toro 112-0385

NUT-LOCK, FLANGE

$7.99

$

In Stock, Qty 7

0

15

Toro 112-0451

NUT-FLANGE

$17.99

$

Usually ships in 3-6 days

0

16

Toro 112-0459

PIN-COTTER

$

$

Not available

17

Toro 112-0568

PIN-COTTER

$8.49

$

In Stock, only 2 left!

0

18

Toro 112-0639

PIN-HAIR

$

$

Not available

19

Toro 112-6235

HUB-PULLEY, SPLINE

$27.99

$

Usually ships in 3-6 days

0

20

Toro 112-0514

KNOB-SHIFT

$18.99

$

Usually ships in 3-6 days

0

21

Toro 112-0306

BALL JOINT ASM

$

$

Not available

22

Toro 112-0602

SWITCH-SPRING, SHORT

$14.99

$

Usually ships in 3-6 days

0

23

Toro 112-0625

PLATE-INSULATOR

$8.99

$

Usually ships in 3-6 days

0

24

Toro 112-0670

SLEEVE

$

$

Not available

25

Toro 112-0683

SLEEVE

$9.49

$

Usually ships in 3-6 days

0

26

Toro 119-8416

BEARING-PLATE, SHIFT

$

$

Not available

27

Toro 119-8417

SPRING-EXTENSION

$

$

Not available

28

Toro 119-9124

SPRING-EXTENSION

$31.99

$

Usually ships in 3-6 days

0

29

Toro 112-0357

CLIP-SPRING, SHIFTER

$13.99

$

In Stock, only 2 left!

0

30

Toro 112-0350

SPRING-EXTENSION

$24.99

$

In Stock, only 1 left!

0

31

Toro 112-0407

WASHER-FLAT

$

$

Not available

32

Toro 112-0415

WASHER-LOCK

$

$

Not available

33

Toro 112-0579

WASHER-FLAT

$12.99

$

Usually ships in 3-6 days

0

34

Toro 112-0435

WASHER-BELL

$

$

Not available

35

Toro 112-0423

BEARING-BALL

$51.99

$

In Stock, only 4 left!

0

36

Toro 112-6128

BOLT-SHOULDER, TAP

$6.99

$

In Stock, Qty 12

0

37

Toro 119-8419

SPACER-SHOULDER

$10.99

$

Usually ships in 3-6 days

0

38

Toro 119-8420

ROD-BYPASS, FOOT PEDAL

$28.99

$

Usually ships in 3-6 days

0

39

Toro 121-5738

ROD-ADJUSTMENT, IDLER

$

$

Not available

40

Toro 119-8422

ROD-BRAKE

$

$

Not available

41

Toro 119-8423

ROD-SHIFT

$

$

Not available

42

Toro 112-5831

SPACER

$9.49

$

In Stock, only 4 left!

0

43

Toro 119-8424

BELT-V, POLY

$70.99

$

In Stock, only 1 left!

0

44

Toro 112-0301

BELT-DRIVE, VARIABLE SPEED

$50.99

$

In Stock, Qty 20+

0

45

Toro 112-0379

PULLEY-V (W/HUB)

$67.99

$

In Stock, only 3 left!

0

46

Toro 112-0313

PULLEY-IDLER, FLAT

$58.99

$

In Stock, only 1 left!

0

47

Toro 112-6149

PULLEY-IDLER, Y TYPE

$52.99

$

In Stock, only 4 left!

0

48

Toro 119-8426

BRACKET-ADJUSTMENT, SHIFT

$

$

Not available

49

Toro 119-8427

BRACKET-IDLER, CENTER DOUBLE

$70.99

$

Usually ships in 3-6 days

0

50

Toro 119-8428

BRACKET-SHIFT

$

$

Not available

51

Toro 119-8429

BRAKE CONTROL ASM

$

$

Not available

52

Toro 112-0680

PEDAL ASM

$

$

Not available

53

Toro 121-5739

BRACKET ASM

$

$

Not available

54

Toro 112-0556

SCREW-HWH

$7.99

$

Usually ships in 3-6 days

0

55

Toro 119-8431

PIN-CLEVIS

$

$

Not available

56

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 9

0

57

Toro 112-0990

PIN-COTTER

$7.49

$

Usually ships in 3-6 days

0

58

Toro 119-8432

CAP-PUSH

$

$

Not available

59

Toro 119-8433

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

60

Toro 119-8434

PAD-PEDAL, BRAKE

$

$

Not available

61

Toro 121-5740

PAD

$

$

Not available

62

Toro 112-0435

WASHER-BELL

$

$

Not available

63

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

64

Toro 119-8435

BEARING-FLANGE

$

$

Not available

65

Toro 112-0387

BEARING-FLANGE, HEX (SPLIT)

$13.99

$

In Stock, Qty 5

0

66

Toro 119-8436

LATCH-CRUISE

$

$

Not available

67

Toro 119-8437

BRACKET-STRAP, PEDAL SUPPORT

$

$

Not available

68

Toro 119-8438

BRACKET-STRAP, PEDAL SUPPORT

$

$

Not available

69

Toro 119-8439

BRACKET-PEDAL, BRAKE

$38.99

$

Usually ships in 3-6 days

0

70

Toro 119-8440

BRACKET-PLATE, REINFORCEMENT

$

$

Not available

71

Toro 119-8441

BRACKET-TRANSMISSION

$

$

Not available

72

Toro 121-5741

IDLER BRACKET ASM

$

$

Not available

73

Toro 112-0395

SCREW-HWH

$14.99

$

In Stock, Qty 19

0

74

Toro 112-0557

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

75

Toro 112-0584

SPACER-SHOULDER

$46.99

$

In Stock, only 1 left!

0

76

Toro 119-8470

PULLEY ASM

$202.99

$

In Stock, only 2 left!

0

77

Toro 119-8443

BELT KEEPER ASM

$

$

Not available

78

Toro 119-9122

BRACKET ASM

$

$

Not available

79

Toro 112-0551

SCREW-HH

$7.99

$

In Stock, Qty 6

0

80

Toro 112-0843

SCREW-HWH

$7.99

$

Usually ships in 3-6 days

0

81

Toro 112-5996

CUP-BEARING

$

$

Not available

82

Toro 112-0500

WASHER-FLAT

$7.99

$

In Stock, only 4 left!

0

83

Toro 112-0352

CAP-HUB

$10.99

$

In Stock, only 3 left!

0
