13AX90RS848 (LX 423) - Toro Lawn Tractor (2011) FUEL TANK, HOOD AND DASH ASSEMBLY Parts Diagram

Lawn Tractor

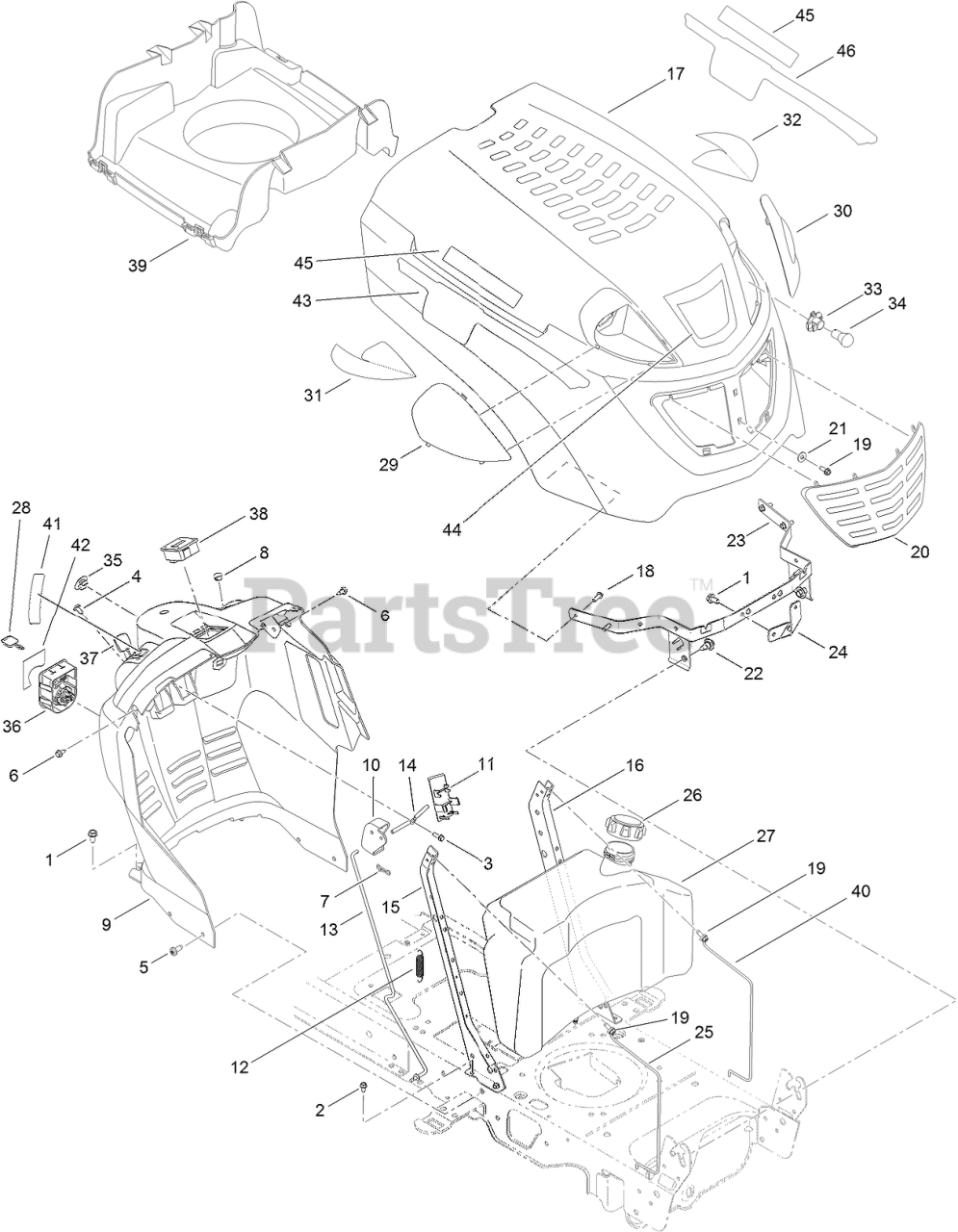

FUEL TANK, HOOD AND DASH ASSEMBLY Parts Diagram

  • Title
1

Toro 112-6070

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

2

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

3

Toro 112-0509

SCREW-TAP

$10.99

$

In Stock, only 3 left!

0

4

Toro 112-0550

SCREW-TAP

$

$

Not available

5

Toro 112-0563

SCREW-TAP

$

$

Not available

6

Toro 112-0659

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

7

Toro 112-0990

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

8

Toro 119-8406

CAP-PLUG, HOLE

$

$

Not available

9

Toro 112-6123

DASH-MANUAL, PTO

$164.99

$

Usually ships in 3-6 days

0

10

Toro 119-8407

LEVER-DASH

$25.99

$

Usually ships in 3-6 days

0

11

Toro 119-8408

COVER-CRUISE

$

$

Not available

12

Toro 119-8409

SPRING-EXTENSION

$12.99

$

Usually ships in 3-6 days

0

13

Toro 119-8410

ROD-LATCH

$

$

Not available

14

Toro 112-0604

ROD-LEVER, BENT

$

$

Not available

15

Toro 112-6262

SUPPORT-DASH, PLATE (RH)

$

$

Not available

16

Toro 112-6263

SUPPORT-DASH, PLATE (LH)

$

$

Not available

17

$544.99

$

Usually ships in 3-6 days

0

18

$

$

Not available

19

Toro 112-0587

SCREW-TAP

$7.49

$

In Stock, Qty 10

0

20

$

$

Not available

21

Toro 112-5989

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

22

Toro 112-6128

BOLT-SHOULDER, TAP

$6.49

$

Usually ships in 3-6 days

0

23

Toro 112-5985

BRACKET-PIVOT

$

$

Not available

24

Toro 112-5986

BRACKET-SUPPORT, HOOD

$

$

Not available

25

Toro 112-0678

ROD-SUPPORT

$

$

Not available

26

Toro 119-9118

CAP-FUEL

$63.99

$

Usually ships in 3-6 days

0

27

Toro 119-9121

TANK-FUEL

$

$

Not available

28

Toro 112-6115

KEY-IGNITION

$25.99

$

In Stock, only 2 left!

0

29

Toro 112-0447

LENS-RH

$15.99

$

In Stock, only 1 left!

0

30

Toro 112-0446

LENS-LH

$16.99

$

In Stock, only 2 left!

0

31

Toro 112-5810

REFLECTOR-RH

$

$

Not available

32

Toro 112-5811

REFLECTOR-LH

$

$

Not available

33

Toro 112-0408

SOCKET-HEADLIGHT

$18.99

$

Usually ships in 3-6 days

0

34

Toro 112-0402

LAMP-12V, MINIATURE

$12.99

$

In Stock, only 1 left!

0

35

Toro 112-0535

PLUG-CHOKE

$6.99

$

Usually ships in 3-6 days

0

36

Toro 119-8412

MODULE-SWITCH, IGNITION

$

$

Not available

37

Toro 112-6253

CABLE-THROTTLE/CHOKE

$

$

Not available

38

Toro 112-6117

METER-HOUR

$

$

Not available

39

Toro 112-6124

PLENIUM-HOOD

$

$

Not available

40

Toro 119-9117

ROD-SUPPORT, LH TANK

$27.99

$

Usually ships in 3-6 days

0

41

Toro 112-6283

DECAL-THROTTLE

$12.99

$

Usually ships in 3-6 days

0

42

Toro 119-8479

DECAL-SWITCH, IGNITION
(Superseded to 119-8412)

$

$

Not available

43

Toro 112-5953

DECAL-HOOD, RIGHT SIDE

$

$

Not available

44

Toro 112-3716

DECAL-HOOD

$

$

Not available

45

$

$

Not available

46

Toro 112-5952

DECAL-HOOD, LEFT SIDE

$49.99

$

Usually ships in 3-6 days

0
