13AX90RS848 (LX 423) - Toro Lawn Tractor (2010) TRANSMISSION ASSEMBLY NO. 112-6256 Parts Diagram

Lawn Tractor

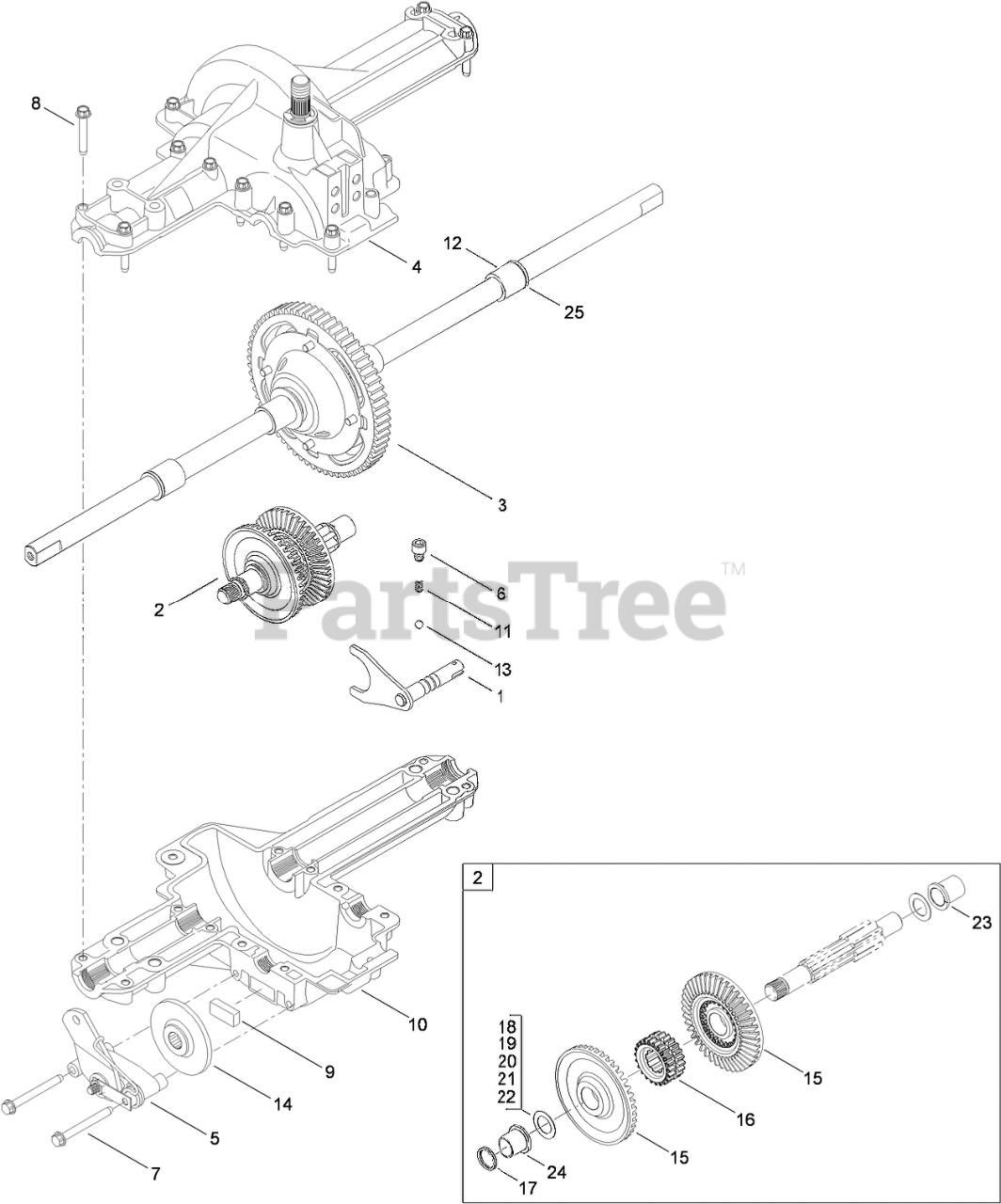

TRANSMISSION ASSEMBLY NO. 112-6256 Parts Diagram

  • Title

1

Toro 112-0806

SHIFT FORK ASM

$71.99

$

In Stock, only 1 left!

0

2

Toro 112-6084

DRIVE SHAFT ASM

$234.99

$

Usually ships in 3-6 days

0

3

Toro 112-6085

DIFFERENTIAL ASM

$

$

Not available

4

Toro 112-6086

UPPER HOUSING ASM

$268.99

$

Usually ships in 3-6 days

0

5

Toro 112-0832

BRAKE ASM

$86.99

$

Usually ships in 3-6 days

0

6

Toro 112-6087

SCREW-TAP

$

$

Not available

7

Toro 112-0698

SCREW-HWH

$

$

Not available

8

Toro 112-0839

SCREW-TAP

$6.99

$

In Stock, only 2 left!

0

9

Toro 112-0741

PUCK-BRAKE

$15.99

$

In Stock, only 1 left!

0

10

Toro 112-6088

HOUSING-LOWER

$

$

Not available

11

Toro 112-0801

SPRING-DETENT

$7.99

$

Usually ships in 3-6 days

0

12

Toro 112-6092

BEARING-SLEEVE

$24.99

$

In Stock, only 4 left!

0

13

Toro 112-0799

BALL-DETENT

$7.49

$

In Stock, only 1 left!

0

14

Toro 112-0817

DISC-BRAKE

$25.99

$

In Stock, only 3 left!

0

15

Toro 112-6089

GEAR-BEVEL, 42T (SPLINE)

$49.99

$

Usually ships in 3-6 days

0

16

Toro 112-6090

COLLAR-CLUSTER

$32.99

$

Usually ships in 3-6 days

0

17

Toro 112-6091

SEAL

$16.99

$

Usually ships in 3-6 days

0

18

Toro 112-0748

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

19

Toro 112-0750

WASHER-FLAT

$7.49

$

In Stock, only 3 left!

0

20

Toro 112-0745

WASHER-FLAT

$

$

Not available

21

Toro 112-0773

WASHER-THRUST

$

$

Not available

22

Toro 112-0755

WASHER-THRUST

$7.49

$

Usually ships in 3-6 days

0

23

Toro 112-0794

BEARING-FLANGE

$16.99

$

In Stock, only 1 left!

0

24

Toro 112-0795

BEARING-FLANGE

$16.99

$

In Stock, only 1 left!

0

25

Toro 112-0800

SEAL

$12.99

$

In Stock, only 2 left!

0

99

Toro 110-9891

GREASE

Note: Not illustrated

$

$

Not available
