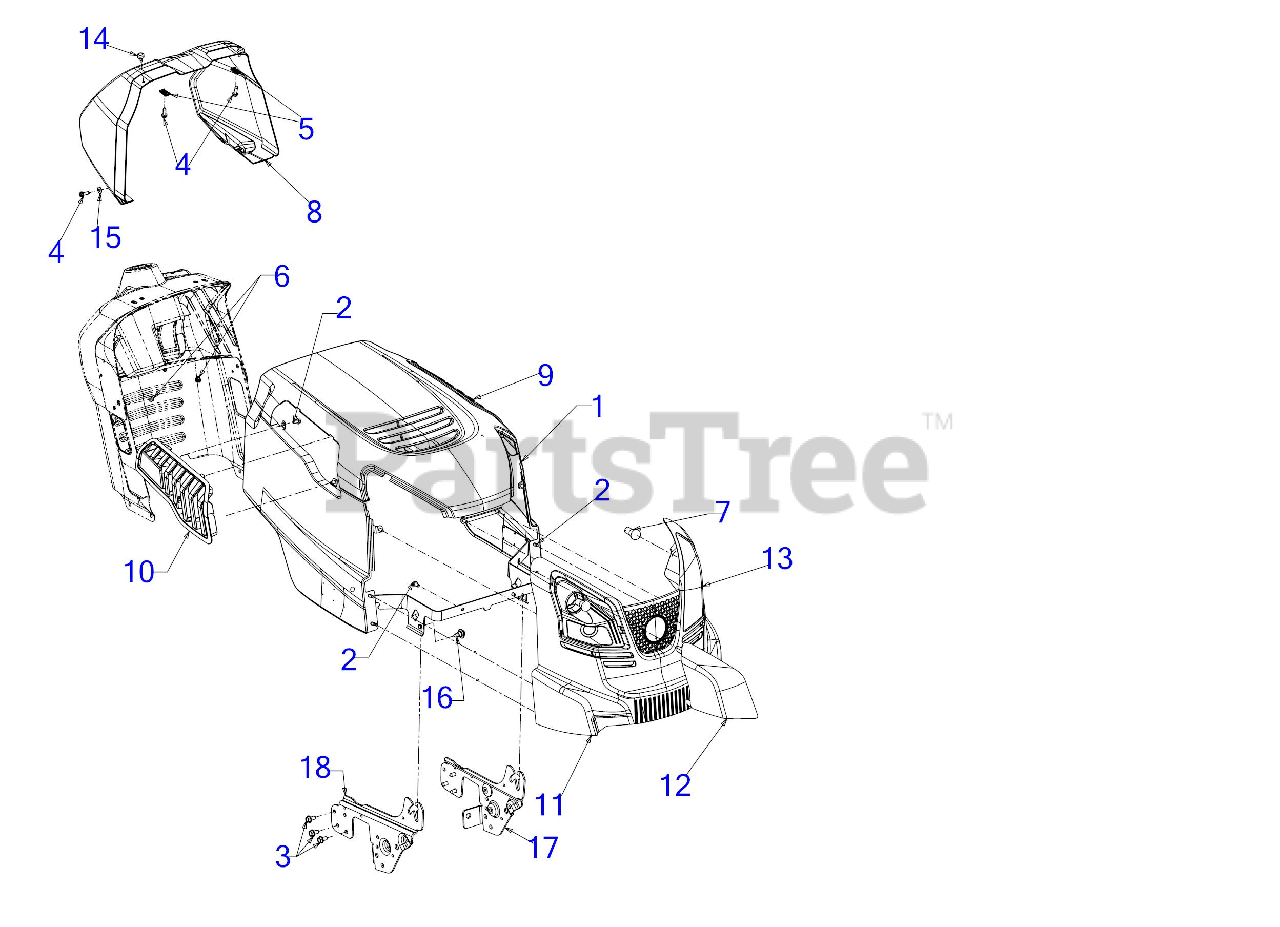

13AX79WT083 - Remington Lawn Tractor (2017) Hood & Grille Parts Diagram

Lawn Tractor

Hood & Grille Parts Diagram

  • Title

1

MTD 683-04619A

HOOD ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-04619A-0480

HOOD ASM-LT5 - BRILLIANT GREEN (0480)

$235.99

$

Usually ships in 3-6 days

0

MTD 683-04619A-0638

HOOD ASSEMBLY - MTD/TROY-BILT RED (0638)

$291.99

$

Usually ships in 3-6 days

0

MTD 683-04619A-0662

HOOD ASM-LT5 - OYSTER GRAY (0662)

$253.99

$

Usually ships in 3-6 days

0

MTD 683-04619A-0691

HOOD ASSEMBLY - BLACK JACK (0691)

$291.99

$

Usually ships in 3-6 days

0

MTD 683-04619A-4043

HOOD ASSEMBLY - CRAFTSMAN METALLIC GRAY (4043)

$291.99

$

Usually ships in 3-6 days

0

MTD 683-04619A-4044

HOOD ASSEMBLY - CRAFTSMAN RED (4044)

$291.99

$

Usually ships in 3-6 days

0

MTD 683-04619A-4062

HOOD ASSEMBLY (COOL GRAY) - COOL GRAY (4062)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

2

MTD 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

3

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0292

SPEED NUT

$10.99

$

In Stock, only 2 left!

0

6

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

MTD 925-0963

MINIATUURE BULB 12V

$7.49

$

In Stock, only 1 left!

0

8

MTD 731-07460A

DASH COLLER

$86.99

$

Usually ships in 3-6 days

0

9

MTD 731-07711A

HOOD SCOOP (LH)

$15.99

$

Usually ships in 3-6 days

0

10

MTD 731-07712A

HOOD SCOOP (RH)

$15.99

$

Usually ships in 3-6 days

0

11

MTD 931-08306

FRONT GRILL

$59.99

$

Usually ships in 3-6 days

0

12

MTD 731-08334

LENS (RH)

$13.99

$

Usually ships in 3-6 days

0

13

MTD 731-08359

LENS (LH)

$13.99

$

Usually ships in 3-6 days

0

14

MTD 735-0271A

BUMPER, .62 DIA x .3

$8.99

$

In Stock, only 2 left!

0

15

MTD 936-0463

FLAT WASHER
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

16

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

17

MTD 783-05327B

SUPPORT BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-05327B-0606

BRACKET-SUPPORT PI - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0637

BRACKET-SUPPORT PI - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0638

BRACKET-SUPPORT PI - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0691

BRACKET-SUPPORT PI - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0709

BRKT SUPT-PIVOT LH - MASTERCRAFT GREEN (0709)

$32.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-4033

BRACKET SUPT-PIVOT LH - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-4062

BRACKET SUPT-PIVOT LH - COOL GRAY (4062)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

18

MTD 783-05328A

PIVOT SUPPORT BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-05328A-0606

BRACKET-SUPT PIVOT - MAJESTIC ORANGE (0606)

$39.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-0637

BRACKET-SUPT PIVOT - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-0638

BRACKET-SUPT PIVOT - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-0691

BRACKET-SUPT PIVOT - BLACK JACK (0691)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-4033

BRACKET SUPT-PIVOT LH - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-4062

BRACKET SUPT-PIVOT RH - COOL GRAY (4062)

$42.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0
