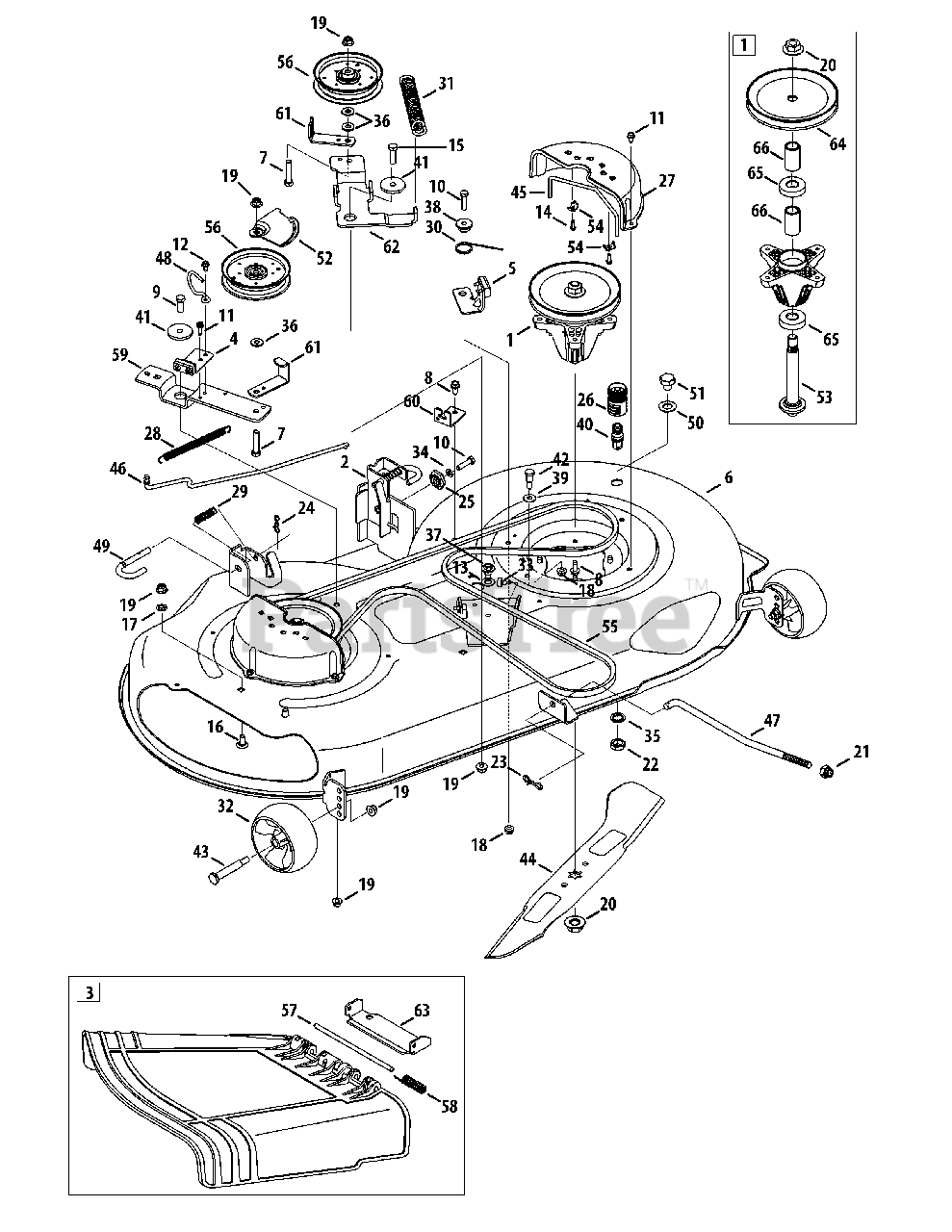

13AX795T004 - MTD Gold Lawn Tractor (2012) Mower Deck 46-Inch Parts Diagram

Gold Lawn Tractor

Mower Deck 46-Inch Parts Diagram

  • Title

1

MTD 918-04865A

Spindle Assembly, Pulley 6.93 Dia

$147.99

$

In Stock, only 3 left!

0

2

MTD 683-0254B-0691

Bracket Assembly, Deck Hanger, LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

MTD 631-04288

Chute Deflector Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

4

MTD 983-04511

Brake Assembly, Deck, 42/46

$63.99

$

In Stock, Qty 20+

0

5

MTD 983-04525

Brake Assembly, Deck, 46"

$45.99

$

In Stock, Qty 20+

0

6

MTD 753-06766-0691

Deck Assembly

$

$

Not available

7

MTD 710-3144

Hex Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0514

Hex Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 19

0

11

MTD 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0642

Screw, Self-tapping, 1/4-20, .750

$4.49

$

In Stock, Qty 20+

0

13

MTD 936-0226

Washer, Flat, .474 x .879 x .064

$3.99

$

In Stock, only 2 left!

0

14

MTD 710-1003

Screw, B, #10-16, 0.625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

15

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

MTD 712-04243

Nut, Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

22

MTD 912-0641

Nut, Hex, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

23

MTD 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

24

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

25

MTD 917-04074

Gear, Deck Adjustment

$13.99

$

In Stock, Qty 9

0

26

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

27

MTD 731-06496

Belt Cover, Universal

$23.99

$

In Stock, Qty 20+

0

28

MTD 932-0384

Spring, Extension, .62 x 6.12

$14.99

$

In Stock, Qty 11

0

29

MTD 732-04652

Spring, Compression, .535 x 1.751

$6.99

$

In Stock, only 2 left!

0

30

MTD 732-04840

Spring, Torsion, .992 I.D X 1.17 O.D

$4.49

$

In Stock, Qty 20+

0

31

MTD 732-04909

Spring, Extension, 1.05 X 6.346

$13.99

$

In Stock, Qty 18

0

32

MTD 734-04155

Wheel, Deck, 5.0 Dia Ball

$20.99

$

In Stock, Qty 20+

0

33

MTD 735-0271A

Bumper, .62 Dia X .3

$8.99

$

In Stock, only 1 left!

0

34

MTD 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

35

MTD 736-0225

Washer, Lock, 5/8, Int Tooth

$4.49

$

In Stock, only 2 left!

0

36

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

37

MTD 738-04091A

Shoulder Spacer, .43 x .29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

38

MTD 748-04272

Shoulder Spacer, .50 x .145

$7.49

$

In Stock, only 1 left!

0

39

MTD 736-0371

Washer, Flat, .343 X .880 X .062

$4.49

$

In Stock, only 3 left!

0

40

MTD 737-04003D

Deck Water Nozzle

Note: If equipped

$23.99

$

In Stock, Qty 6

0

41

MTD 738-04162A

Shoulder Spacer, .8840 X .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

42

MTD 738-0754

Shoulder Screw, .437 Dia. X .54

$4.49

$

In Stock, Qty 20+

0

43

MTD 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

44

MTD 942-04290

Blade, Cut, 23.25" 2-In-1
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

45

MTD 747-05011

Rod, Keeper, Belt

$10.99

$

In Stock, Qty 20+

0

46

MTD 747-05052A

Rod, Control, Brake 46"

$16.99

$

In Stock, Qty 14

0

47

MTD 747-05141A

Rod, Lift, Deck, Medium
(Superseded to 747-05141B)

$22.99

$

In Stock, Qty 14

0

48

MTD 747-05323

Rod, Keeper, Belt

$14.99

$

In Stock, only 1 left!

0

49

MTD 747-1116

Rod, Deck Release

$12.99

$

In Stock, Qty 6

0

50

MTD 736-0187

Washer, Flat, .64 X 1.24 X .06

$4.49

$

In Stock, Qty 20+

0

51

MTD 738-04146

Plug, Bolt, M16 X 1.5

$9.49

$

Usually ships in 3-6 days

0

52

MTD 783-07183A-0637

Belt Guide

$19.99

$

Usually ships in 3-6 days

0

53

MTD 738-1186A

Spindle Shaft, 6.05 LG.

$49.99

$

In Stock, Qty 14

0

54

MTD 751B221535

Clamp, Casing

$10.99

$

In Stock, Qty 10

0

55

MTD 954-04219

Belt, V-Typ, A Sec

$50.99

$

In Stock, Qty 20+

0

56

MTD 756-04129B

Pulley, Idler, 4.25"Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

57

MTD 711-04847B

Hinge Pin

$8.99

$

In Stock, Qty 7

0

58

MTD 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 8

0

59

MTD 783-05946

Bracket, Idler, Pivot, 46

$38.99

$

In Stock, Qty 9

0

60

MTD 783-06243-0691

Bracket, Cable, Deck Engagement

$10.99

$

Usually ships in 3-6 days

0

61

MTD 783-06368A-0691

Bracket, Guard, Belt, 4.25 Pulley
(Superseded to 783-06368A-0637)

$21.99

$

In Stock, Qty 20+

0

62

MTD 783-07234

Bracket, Idler, 46" Lh

$23.99

$

In Stock, only 2 left!

0

63

MTD 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

64

MTD 756-04356

Deck Pulley, 6.93 DIA

$37.99

$

In Stock, only 1 left!

0

65

MTD 941-0919

Ball Bearing, .787ID X 1.85 ODX.551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

66

MTD 750-04936

Spacer, .792 X 1.060 X 1.860 LG

$6.99

$

In Stock, Qty 20+

0
