13AX795T004 - MTD Gold Lawn Tractor (2011) Seat & Fender Parts Diagram

Gold Lawn Tractor

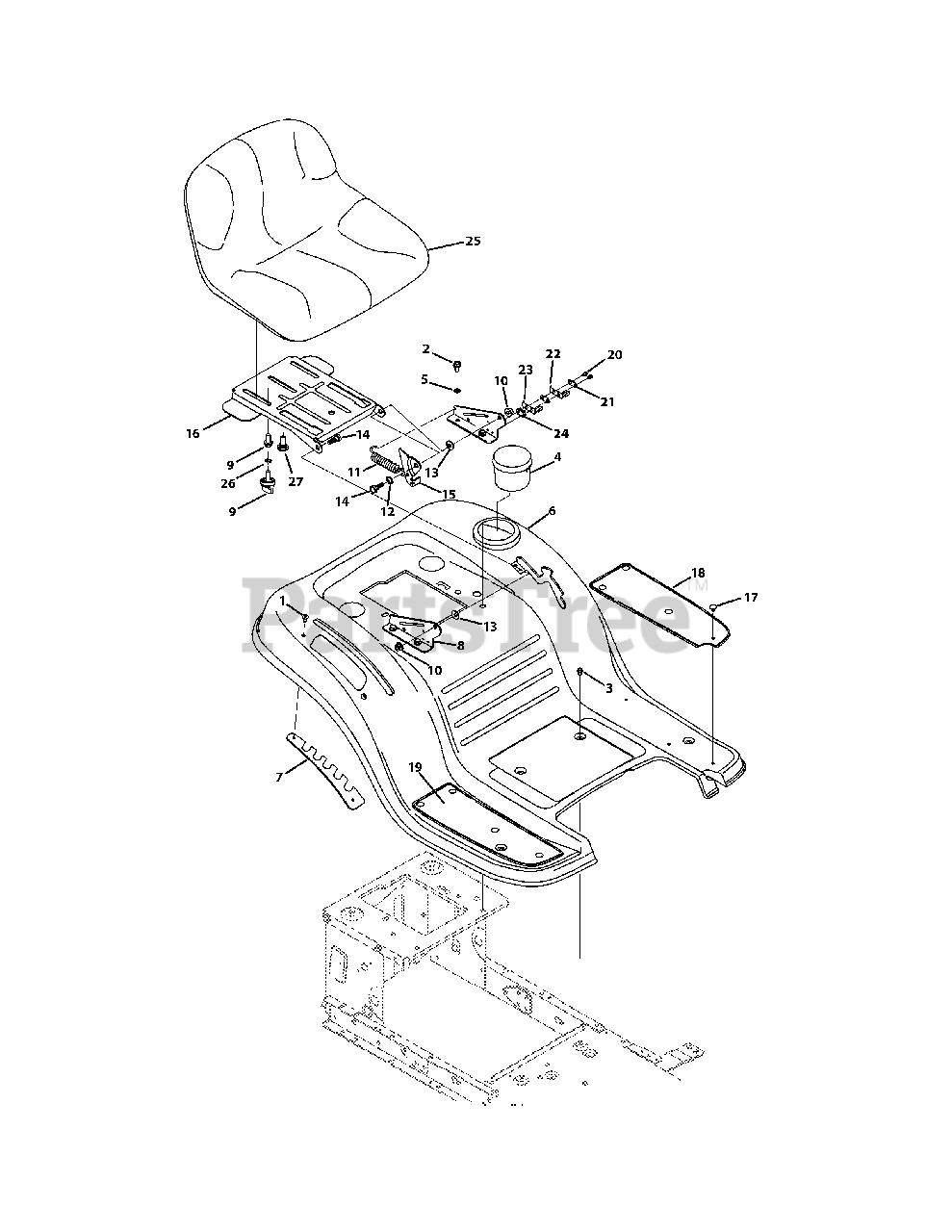

Seat & Fender Parts Diagram

  • Title

1

MTD 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

2

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

5

MTD 736-0607

Loack Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

6

MTD 783-04593E-0691

Fender - Black
(Superseded to 783-04593F-0691)

$402.99

$

Usually ships in 3-6 days

0

6

MTD 783-04593E-0709

Fender - Green
(Superseded to 783-04593F-0709)

$325.99

$

Usually ships in 3-6 days

0

7

MTD 783-04843

Lift Adjuster Bracket

Variations

MTD 783-04843-0637

Lift Adjust Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04843-0606

BRACKET:LIFT:ADJ - MAJESTIC ORANGE (0606)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-04843-0638

BRACKET:LIFT:ADJ - MTD/TROY-BILT RED (0638)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04843-0691

BRACKET:LIFT:ADJ - BLACK JACK (0691)

$32.99

$

Usually ships in 3-6 days

0

MTD 783-04843-0709

BRACKET:LIFT:ADJ - MASTERCRAFT GREEN (0709)

$29.99

$

Usually ships in 3-6 days

0

MTD 783-04843-4044

BRACKET:LIFT:ADJ - CRAFTSMAN RED (4044)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04843-4062

BRACKET:LIFT:ADJ - COOL GRAY (4062)

$34.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

8

MTD 783-1489D-0637

Seat Mount Bracket

$23.99

$

In Stock, only 1 left!

0

9

MTD 710-04482

Hex Flange, 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

9

MTD 720-04061

Knob

Note: If Equipped

$5.49

$

In Stock, Qty 20+

0

10

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 732-1184

Extension Spring

$11.99

$

In Stock, only 1 left!

0

12

MTD 936-0108

Flat Washer, .510x .750 x .033

$6.99

$

In Stock, only 4 left!

0

13

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

14

MTD 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

15

MTD 783-0209D

Lift Seat Bracket

$16.99

$

In Stock, only 1 left!

0

16

MTD 783-04081D-0637

Pivot Seat Manual Adjust Bracket

$41.99

$

In Stock, only 1 left!

0

17

MTD 726-3046

Ratchet Clip, .250 x .500

$3.99

$

In Stock, Qty 15

0

18

MTD 735-04047

Foot Pad, LH

$18.99

$

In Stock, only 1 left!

0

18

MTD 723-04026

Foot Pad, Abrasive, LH

$33.99

$

Usually ships in 3-6 days

0

19

MTD 735-04048

Foot Pad, RH

$19.99

$

In Stock, only 3 left!

0

19

MTD 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

20

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

21

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

22

MTD 925-1303

Outer Seat SPring

$6.49

$

In Stock, Qty 7

0

23

MTD 725-1439

Inner Seat Spring

$8.49

$

In Stock, Qty 10

0

24

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

25

MTD 757-04099

Low Back Seat
(Superseded to 757-05230)

Note: Yard-Man

$194.99

$

In Stock, only 1 left!

0

25

MTD 757-04083

Medium Back Seat
(Superseded to 757-05229)

Note: MTD Gold

$231.99

$

Usually ships in 3-6 days

0

26

MTD 736-0148

Lock Washer

Note: If Equipped

$3.99

$

In Stock, Qty 20+

0

27

MTD 738-04012A

Screw., Shldr., .625 x .145 x 3/8-16
(Superseded to 738-04012C)

Note: If Equipped

$5.49

$

In Stock, Qty 12

0
