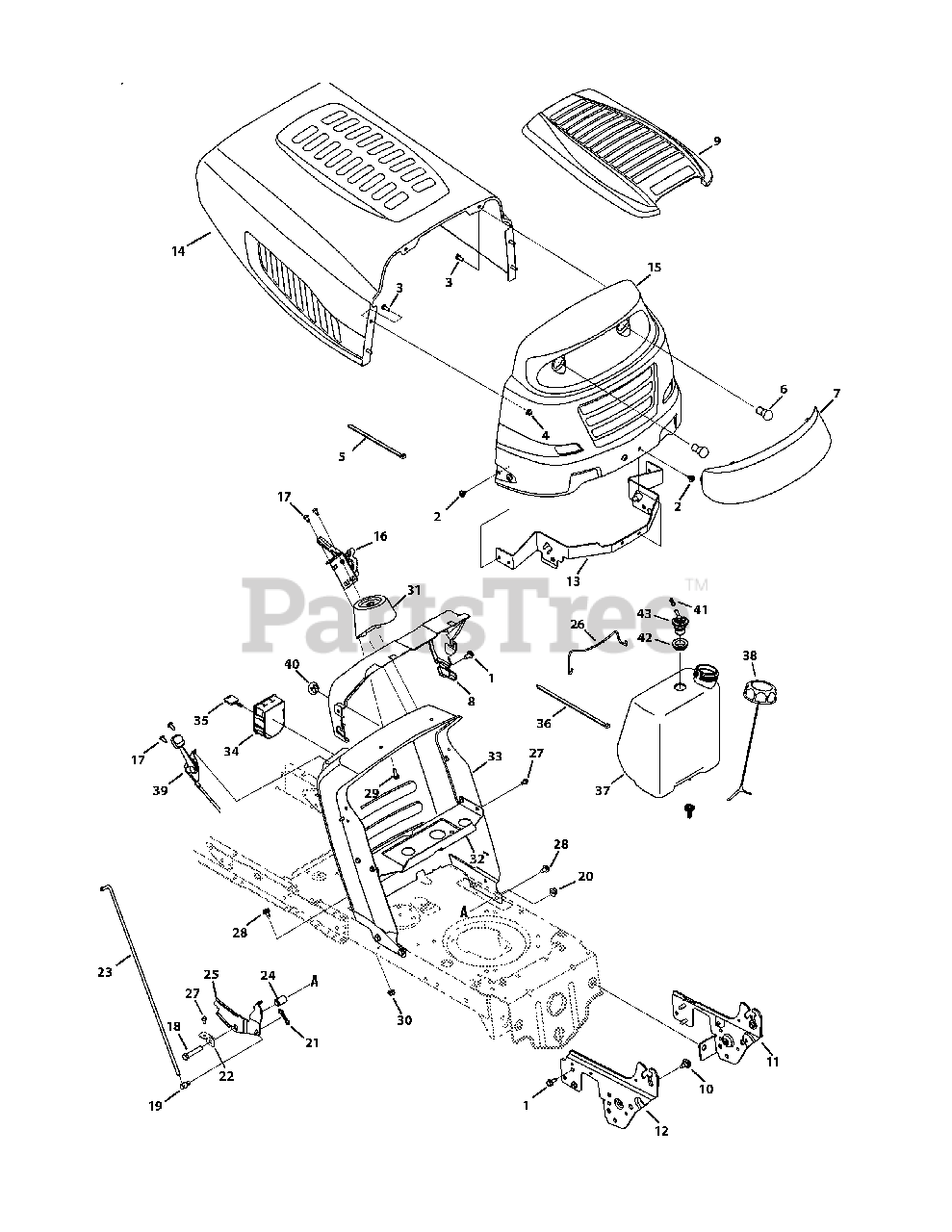

13AX795T004 - MTD Gold Lawn Tractor (2011) Hood & Grille Parts Diagram

Gold Lawn Tractor

Hood & Grille Parts Diagram

  • Title

1

MTD 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

Screw 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

Hex Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flanglock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

6

MTD 925-0963

Miniature lamp 12V socket

$7.49

$

In Stock, only 4 left!

0

7

MTD 731-04949A

Grill Lens

$26.99

$

In Stock, only 1 left!

0

8

MTD 731-05078C

Dash Collar

$18.99

$

In Stock, only 2 left!

0

9

MTD 731-05522A

Hood cover

$49.99

$

Usually ships in 3-6 days

0

10

MTD 738-04091A

Shoulder Screw .43 x .29

$3.99

$

Usually ships in 3-6 days

0

11

MTD 783-05327B-0637

Suppport Bracket LH

$40.99

$

Usually ships in 3-6 days

0

12

MTD 783-05328A-0637

Suppport Bracket RH
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

MTD 783-05454-0637

Hood pivot bracket

$31.99

$

Usually ships in 3-6 days

0

14

MTD 783-05683-0662

Hood - 5 Style

$171.99

$

Usually ships in 3-6 days

0

15

MTD 783-05685-0662

Grill
(Superseded to 783-05685A-0662)

$140.99

$

Usually ships in 3-6 days

0

16

MTD 983-04226

Hydro Control Assembly

$21.99

$

Usually ships in 3-6 days

0

17

MTD 710-05070

Screw 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

18

MTD 710-3144

Hex Screw 3/8-16 x 2.00

$4.49

$

In Stock, Qty 7

0

19

MTD 711-0736

Ferrule Adjust

$13.99

$

In Stock, only 2 left!

0

20

MTD 712-04065

Flang lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

22

MTD 783-06823

Speed Latch Tab

$17.99

$

In Stock, only 2 left!

0

23

MTD 747-04430

Control Rod, Speed Selector

$21.99

$

Usually ships in 3-6 days

0

24

MTD 750-04465B

Flang Spacer .390 x .671 x 1.095

$4.49

$

In Stock, only 2 left!

0

25

MTD 783-04862

Transmission Speed Latch, RMC

$

$

Not available

25

MTD 783-04903

Trans. Speed Latch, NO RMC

Variations

MTD 783-04903-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

26

MTD 683-04448-0637

Battery Rod

$10.99

$

In Stock, only 1 left!

0

27

MTD 710-0599

Hex Screw Washer 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0604A

Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-05108

Hex Screw 1/4-15 x .750

$3.99

$

In Stock, Qty 20+

0

30

MTD 712-04063

Flanglock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

31

MTD 731-04945

Support Shaft

$18.99

$

In Stock, only 1 left!

0

32

MTD 783-04584B-0637

Gas Tank Support Bracket

$19.99

$

Usually ships in 3-6 days

0

33

MTD 783-04892B

Dash, RMC - Powder Black

Note: (MTD Gold Models, RMC® (Reverse Mowing Control) )

Variations

MTD 783-04892B-0637

DASH RMC - POWDER BLACK (0637)

$139.99

$

Usually ships in 3-6 days

0

MTD 783-04892B-0650

DASH RMC - RED METALLIC (0650)

$

$

Not available

MTD 783-04892B-0606

DASH RMC - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04892B-0638

DASH RMC - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04892B-0665

DASH RMC - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04892B-0691

DASH RMC - BLACK JACK (0691)

$

$

Not available

MTD 783-04892B-4021

DASH RMC - CUB YELLOW 2 (4021)

$

$

Not available

$113.99

$

Usually ships in 3-6 days

0

33

MTD 783-04873B

Dash, NO RMC

Note: (Yard-Man Model, RMC® (Reverse Mowing Control) )

Variations

MTD 783-04873B-0637

DASH NO RMC - POWDER BLACK (0637)

$214.99

$

Usually ships in 3-6 days

0

MTD 783-04873B-0638

DASH NO RMC - MTD/TROY-BILT RED (0638)

$214.99

$

Usually ships in 3-6 days

0

MTD 783-04873B-0665

DASH NO RMC - YARDMAN GREEN (0665)

$214.99

$

Usually ships in 3-6 days

0

MTD 783-04873B-0691

DASH NO RMC - BLACK JACK (0691)

$214.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

34

MTD 925-04227B

Key Switch Module, 8 Pin
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

34

MTD 925-04659

Key Switch 3 Position, 5Pin

$44.99

$

In Stock, Qty 20+

0

35

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

36

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

37

MTD 951-04304

1.36 Gallon Fuel Tank EPA
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

38

MTD 951-12179

Fuel Cap, 2.25" EPA
(Superseded to 951-12179C)

$38.99

$

In Stock, only 3 left!

0

39

MTD 746-04364

Throttle/Choke Control Cable

$48.99

$

In Stock, only 2 left!

0

40

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

41

MTD 751-12089-28

Hose Vent, 3/16 EPA

$8.99

$

In Stock, only 1 left!

0

42

MTD 735-04081

Rubber Grommet, 23 x 3.55

$4.99

$

In Stock, Qty 20+

0

43

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

MTD 925-04085

Harness, RMC, Dual
(Superseded to 925-04432M)

Note: (MTD Gold Models, Not shown, RMC® (Reverse Mowing Control) Ignition Switch Modules.)

$143.99

$

Usually ships in 3-6 days

0

MTD 925-04082

Harness, NO RMC
(Superseded to 925-04567K)

Note: (Yard-Man Model, Not shown, RMC® (Reverse Mowing Control) Ignition Switch Modules.)

$133.99

$

In Stock, only 2 left!

0
