13AX795S004 - MTD Gold Lawn Tractor (2014) Engine Accessories Parts Diagram

Gold Lawn Tractor

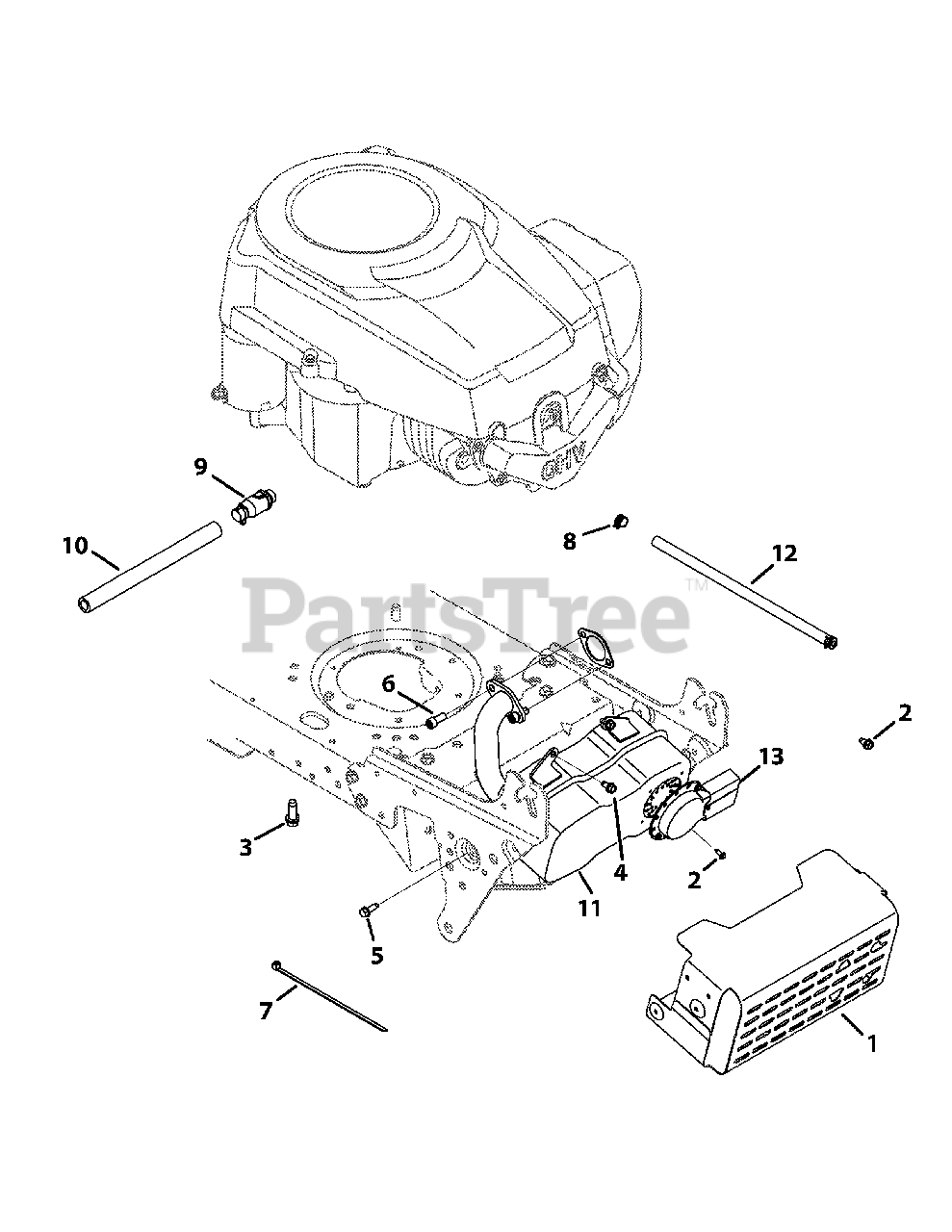

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

1

MTD 710-05070A

Tan Torx Screw 1/4

Note: Not Shown

$6.99

$

In Stock, Qty 7

0

1

MTD 747-06404

Muffler Shield Rod
(Superseded to 747-06404A-0637)

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 15

0

3

MTD 710-04683A

Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

4

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1314A

Socket Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

7

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

8

MTD 726-0205

Clamp Hose, .490 diameter

$3.99

$

In Stock, Qty 18

0

9

MTD 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

10

MTD 751-3141-14

Oil Drain, Extension Hose

$11.99

$

In Stock, Qty 8

0

11

MTD 751-11943A

Muffler
(Superseded to 951-11943A)

$133.99

$

In Stock, only 1 left!

0

12

MTD 751-10349-28

Fuel Hose, Low Permeation

$41.99

$

In Stock, only 1 left!

0

13

MTD 751-11053A

Muffler Deflector Long
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0
