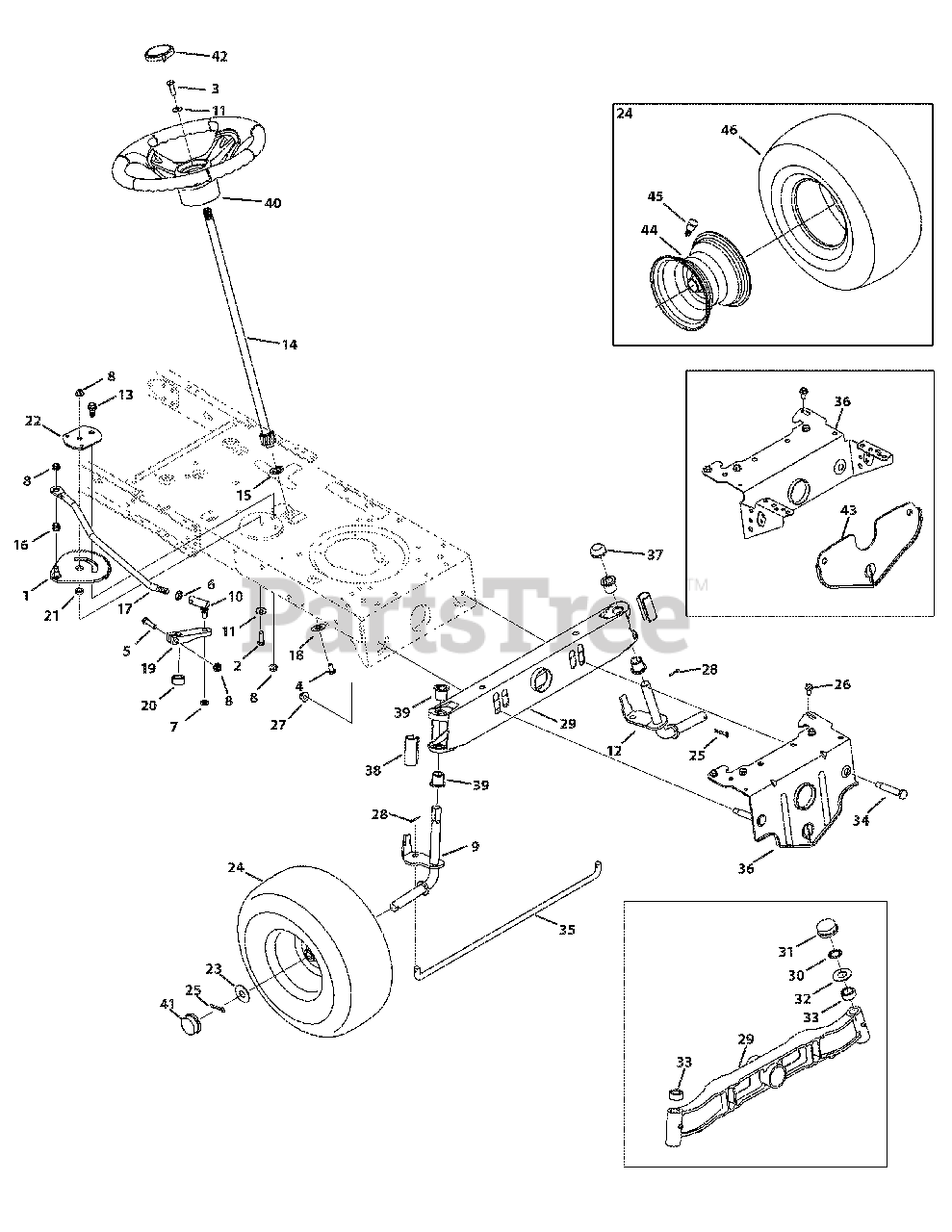

13AX78KS066 - Troy-Bilt Bronco Lawn Tractor (2010) Steering Parts Diagram

Bronco Lawn Tractor

Steering Parts Diagram

  • Title

1

Troy-Bilt 617-04024

Front Steering Gear Assembly
(Superseded to 617-04024A)

$53.99

$

In Stock, Qty 11

0

2

Troy-Bilt 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0643

Hex Screw, 5/16-18 x 1.00, Lock

$6.99

$

In Stock, Qty 5

0

4

Troy-Bilt 710-1309

Machine Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-3180

Hex Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 912-0214

Jamlock Nut, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

8

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 638-04008P

Front RH Axle w/46" deck

$51.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 938-04013

Front RH Axle

$56.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 923-0448A

Ball Joint, 7/16-20

$24.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 938-04007A-0637

Front LH Axle w/46" deck

$46.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 938-04014A-0637

Front LH Axle

$56.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 738-04141

Shoulder Bolt, 5/16-18 x .435 x .350

$5.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 738-0919A

Steering Shaft, 5/8 x 22.08
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 941-04124

Flange Bearing, 5/8
(Superseded to 741-04124)

$5.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 747-04298

Steering Link
(Superseded to 747-05385A)

$20.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 948-0389

Cap, 1.25 x .16

$5.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 748-04065-0637

Steering Block
(Superseded to 748-04278-0637)

$21.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 748-04068

Spacer, .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 750-04418

Spacer, .322 x .625 .21

$6.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 783-04644

Gear Segment Stabilizer Plater
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 736-04228A

Flat Washer, .781 x 1.590
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 634-04086-0911

Wheel Assembly
(Superseded to 634-05067-0911)

Note: 15 X 6 X 6 Sq Shoulder Tire

$185.99

$

In Stock, only 4 left!

0

24

Troy-Bilt 634-04325-0911

Wheel Assembly
(Superseded to 634-05053-0911)

Note: 15 X 6 X 6 Rd Shoulder Tire

$91.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 914-0474

Cotter Pin, .125 x .75
(Superseded to 714-0474)

$

$

Not available

29

Troy-Bilt 719-04177A

Pivot Axle
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 683-0128B-0637

Pivot Axle

$97.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 726-04035

Push Nut, 3/4

$6.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 731-04693

Hub Cap

$4.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 936-0316

Flat Washer, .78 x 1.59 x .060
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 748-04068

Spacer, .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 738-04128

Shoulder Bolt, 3/8-16 x .500 x 2.38

$7.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 747-04299A

Fixed Rod

$30.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 783-05326-0637

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 783-04601C-0637

Pivot Bar Bracket

$56.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-04057A

Standard Axle Cap

$5.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 741-0660A

Flange Bearing, .760 x .941 x 1.0

$3.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 631-04028

Steering Wheel

$69.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 931-0484A

Hub Cap

$6.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 731-04681

Cap, Troy-Bilt

$14.99

$

In Stock, only 4 left!

0

43

Troy-Bilt 783-04568-0637

Front Deck Hanger Bracket

$51.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 934-04081-0662

Deck Rim Asm, 6.0x4.5
(Superseded to 634-05066-0662)

Note: 42/38" Deck only

$105.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 741-0516B

Flange Bearing

Note: Not shown

$6.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 741-0990B

Flange Bearing w/ Grease Fitting

Note: Not shown

$10.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 934-0255

Valve, tubeless Air

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 734-1731-0901

Tire, 15 X 6 X 6 Sq Shoulder

$49.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 734-04240A-0901

Tire, 15 X 6 X 6 Rd Shoulder

$31.99

$

Usually ships in 3-6 days
