13AX78KS066 - Troy-Bilt Bronco Lawn Tractor (2010) Drive & Transmission Parts Diagram

Bronco Lawn Tractor

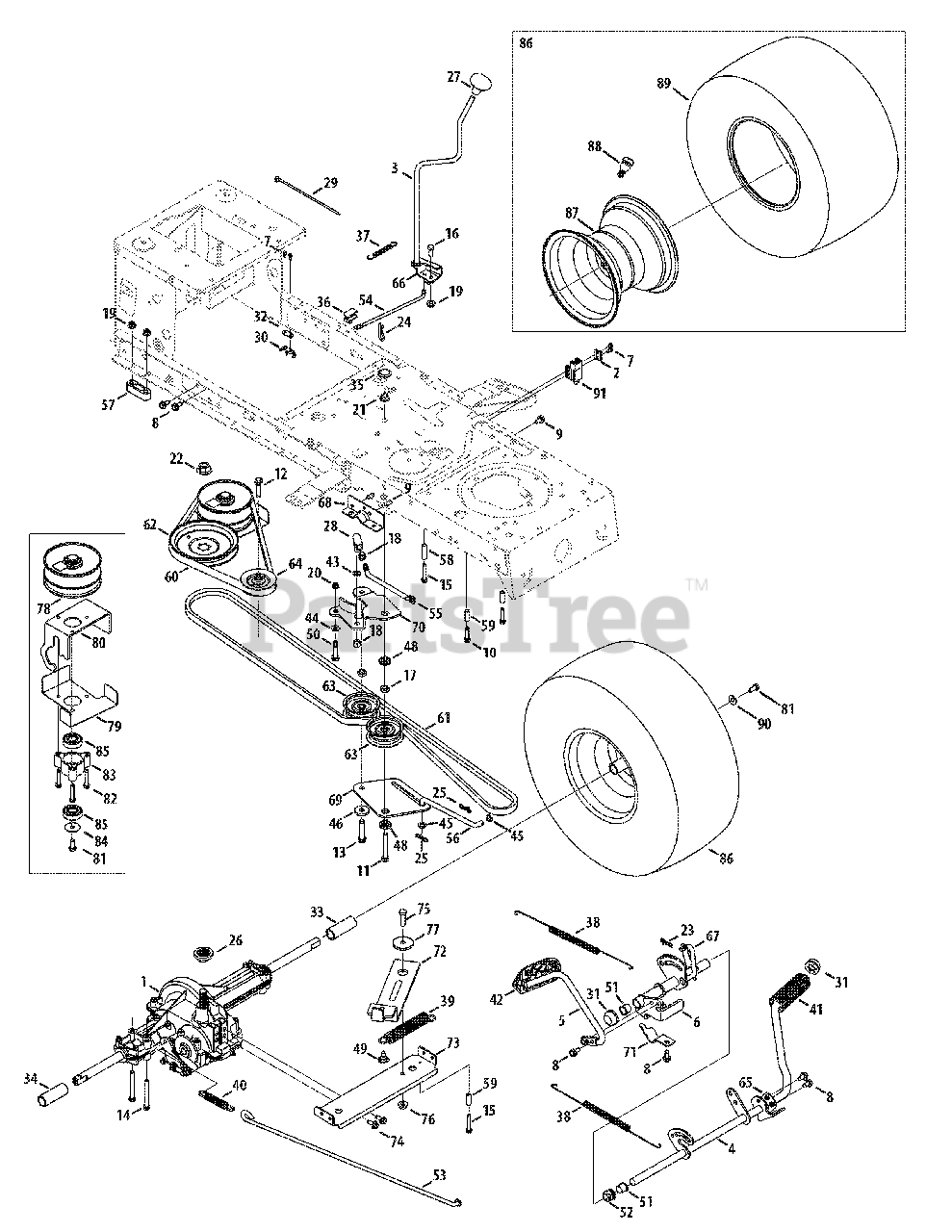

Drive & Transmission Parts Diagram

  • Title

1

Troy-Bilt 918-04566

Drive Assembly, AutoDrive
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 17962

Plate Switch

$4.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 647-04035

Lever Assembly, Shift

$37.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 647-04201-0637

Pedal Assembly, Drive
(Superseded to 947-04201A-0637)

$47.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 647-04203-0637

Pedal Assembly, Control
(Superseded to 647-04203A-0637)

$20.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 683-04607

Bracket Assembly, Pedal

$44.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 710-0227

Screw, ab, #8-18, 0.500, Hxindwsh

$4.49

$

In Stock, Qty 15

0

8

Troy-Bilt 710-04484

Screw, tt, 5/16-18, .750, Hxindwsh

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0604A

Screw, tt, 5/16-18, 0.625, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0809

Screw, tt, 1/4-20, 1.250, Hxindwsh

$6.99

$

In Stock, Qty 19

0

11

Troy-Bilt 710-0859

Hhcs, 3/8-16, 2.50, Gr5, Std

$6.99

$

In Stock, Qty 16

0

12

Troy-Bilt 710-1007

Screw, ttsems, 3/8-16, 1.500, Hxlwsh

$6.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 710-1008

Screw, ttsems, 3/8-16, 1.875, Hxlwsh

$5.49

$

In Stock, Qty 9

0

14

Troy-Bilt 710-1266

Hhcs, 5/16-18, 3.50, Gr5, Std

$9.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-1325

Screw, tt, 1/4-20, 1.625, Hxindwsh

$4.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-3008

Hhcs, 5/16-18, .75, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 912-0240

Nut, jam, 7/16-20, Gr2

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-0241

Nut, hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

19

Troy-Bilt 712-04063

Nut, flglk, 5/16-18, Grf, nylon

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-04064

Nut, flglk, 1/4-20, Grf, nylon

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 912-0431

Nut, flglk, 3/8-16, Grf, top Lk

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-0700

Nut, flg, 9/16-18, Gr2

$10.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 914-0111

Pin, cot, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

24

Troy-Bilt 914-0209

Pin, cotter Int- .125 Dia

$3.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 714-04040

Pin, cotter, bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 718-04407

Hub, Pulley, 5/8 Spline

$12.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 720-04028

Knob, Shift

$10.99

$

In Stock, only 4 left!

0

28

Troy-Bilt 923-3018

Ball, joint

$16.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 725-0157

Cable, tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 725-1644

Switch, Springing, Short

$9.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 726-0214

Cap, push 5/8

$10.99

$

In Stock, only 3 left!

0

32

Troy-Bilt 926-0320

Plate, Insulator Nut

$6.99

$

In Stock, Qty 9

0

33

Troy-Bilt 731-04602

Sleeve, .758 X .821 X 3.3125

$6.49

$

In Stock, only 1 left!

0

34

Troy-Bilt 731-04604

Sleeve, .758 X .821 X 2.4375

$6.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 731-06330

Plug, deck Hole, 7/8

$4.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 731-06894

Bearing, Shift Rod

$6.49

$

In Stock, only 1 left!

0

37

Troy-Bilt 732-04488

Spring, extension, .38 Od X 3.25 Lg

$6.49

$

In Stock, only 3 left!

0

38

Troy-Bilt 732-04612

Spring, extension, .70 Dia X 12.00 Lg

$16.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 732-04616

Spring, extension, .97 Od X 6.18 Lg
(Superseded to 732-04616B)

$14.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 732-0716D

Spring, extension, .59 Od X 4.00 Lg

$13.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 735-0239

Pad, foot, 4.0 Long
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 735-0662

Pad, Control

$11.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 936-0169

Washer, lock, 3/8, Regular Duty
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 736-0173

Washer, flat, .28 X .74 X .063

$4.49

$

In Stock, only 4 left!

0

45

Troy-Bilt 936-0185

Washer, flat, .375 X .738 X .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 3 left!

0

46

Troy-Bilt 736-0322

Washer, flat, .450x1.250x.164, Ht

$9.49

$

In Stock, Qty 8

0

48

Troy-Bilt 738-0372B

Spacer, Drive, 1.00 X .38 X .38

$9.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 738-04091A

Screw, Drive, .43x.29, Tt, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 938-0572

Screw, shld, .374 Dia. X 1.16 Lg.
(Superseded to 738-0572)

$

$

Not available

51

Troy-Bilt 741-0495

Bearing, flg, .630 Idx .695 Od X .60

$4.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 741-3065B

Bearing, hex Flg, .628 Id, split

$8.49

$

In Stock, Qty 11

0

53

Troy-Bilt 747-05188

Rod, brake,Trans

$12.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 747-05243

Rod, shift, 46"

$11.99

$

In Stock, only 3 left!

0

55

Troy-Bilt 747-05251A

Rod, adj, Idler, 3/8

$

$

Not available

56

Troy-Bilt 747-05307

Rod, trans, footPedalal Bypass

$

$

Not available

57

Troy-Bilt 948-0334

Spacer, T-Axle .68

$10.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 750-04456

Spacer, .260 X .372 X 1.420 Lg

$7.49

$

In Stock, only 4 left!

0

59

Troy-Bilt 750-0566A

Spacer, .260 X .375 X 1.030 Lg

$9.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 954-04208

Belt, v Typ, 5l X 40.9 Lg Poly
(Superseded to 954-04208A)

$45.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 954-0467

Belt, v Typ, 5l, 90.80, Poly
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 956-04002

Pulley, v Typ, 7.25 Dia Spun

$27.99

$

In Stock, Qty 14

0

63

Troy-Bilt 756-04224

Pulley, Idler, flat 2.75 Od

$26.99

$

In Stock, Qty 20+

0

64

Troy-Bilt 756-04325

Pulley, Idler, v-Type X 3.06

$24.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 783-04536B-0637

Bracket, Pedal, support

$6.49

$

Usually ships in 3-6 days

0

66

Troy-Bilt 783-04595A

Bracket, Shift, adj

$10.99

$

In Stock, only 4 left!

0

67

Troy-Bilt 783-06278

Plate, Bracket, reinforcement

$7.49

$

Usually ships in 3-6 days

0

68

Troy-Bilt 783-06562-0637

Bracket, Pedal, frame Rh
(Superseded to 783-06562A-0637)

$4.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 783-06570

Bracket, Idler, center Dbl

$

$

Not available

70

Troy-Bilt 783-06592

Bracket, Idler, dbl AutoDriveive Lt-5
(Superseded to 783-06592B)

$16.99

$

In Stock, only 1 left!

0

71

Troy-Bilt 783-06641

Bracket, supt, Pedalal Stap
(Superseded to 783-06641A)

$8.49

$

Usually ships in 3-6 days

0

72

Troy-Bilt 683-04521

Bracket Assembly, Idler
(Superseded to 753-06662)

$22.99

$

In Stock, only 4 left!

0

73

Troy-Bilt 683-04606

Bracket Assembly, AutoDrive
(Superseded to 783-06568A)

$23.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 710-1260A

Screw, tt, 5/16-18, 0.750, Hxindwsh

$3.99

$

In Stock, Qty 20+

0

75

Troy-Bilt 710-3005

Hhcs, 3/8-16, 1.25, Gr5, Std

$3.99

$

In Stock, Qty 12

0

76

Troy-Bilt 712-04065

Nut, flglk, 3/8-16, Grf, nylon

$3.99

$

In Stock, Qty 20+

0

77

Troy-Bilt 738-04162A

Spacer, Drive, .8840 X .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

78

Troy-Bilt 956-04015A

Pulley Assembly, var Spd, 4.75 Od
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

79

Troy-Bilt 683-04522

Keepr Assembly, belt
(Superseded to 783-06227A)

$16.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 683-04612-0637

Bracket Assembly, vari Painted
(Superseded to 783-06587A)

$34.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 710-0627

Hhcs, 5/16-24, .750, Gr5, Lock

$4.49

$

In Stock, Qty 20+

0

82

Troy-Bilt 710-0778

Screw, tt, 1/4-20, 1.500, Hxindwsh

$4.49

$

In Stock, only 3 left!

0

83

Troy-Bilt 718-04261

Cup, Bearing

$20.99

$

In Stock, only 2 left!

0

84

Troy-Bilt 736-0362

Washer, flat, .330 X 1.25 X .06, Ht

$4.49

$

In Stock, Qty 9

0

85

Troy-Bilt 941-0600

Bearing, ball, 17x40x12, 6203, Ds

$25.99

$

In Stock, Qty 20+

0

86

Troy-Bilt 634-0104-0911

Wheel, 20 x 8 x 8, 42"

$144.99

$

Usually ships in 3-6 days

0

87

Troy-Bilt 634-04369-0662

Rim Assembly:8.0 X 7.0 X .750 Id

$165.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 934-0255

Valve, tubeless Air

$4.49

$

In Stock, Qty 20+

0

89

Troy-Bilt 734-1730-0901

Tire, 20 X 8 X 8 Sq Sh

$99.99

$

In Stock, only 1 left!

0

90

Troy-Bilt 736-0242

Bell Washerer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

91

Troy-Bilt 725-04363

Switch Interlock

$15.99

$

In Stock, Qty 20+

0
