13AX771T004 - MTD Gold Lawn Tractor (2011) Hood Style 1 Parts Diagram

Gold Lawn Tractor

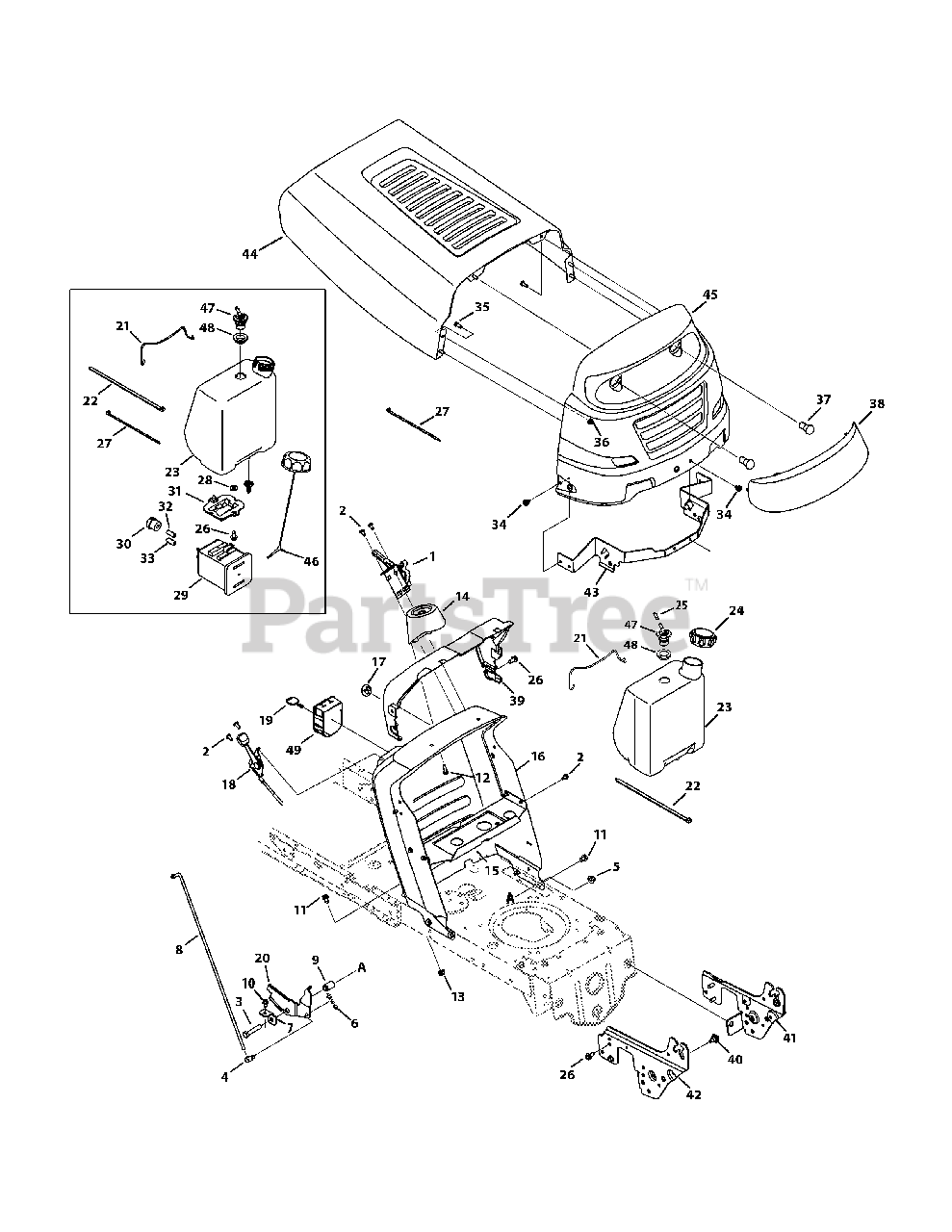

Hood Style 1 Parts Diagram

  • Title

1

MTD 983-04216

7-Speed Control Assembly

$21.99

$

In Stock, only 2 left!

0

2

MTD 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

3

MTD 710-3144

Hex Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 7

0

4

MTD 711-0736

Ferrule, 1/4-20 x 1.00

$13.99

$

In Stock, only 2 left!

0

5

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

7

MTD 783-06823

Speed Latch Tab

$17.99

$

In Stock, only 2 left!

0

8

MTD 747-04430

Speed Selector

$21.99

$

Usually ships in 3-6 days

0

9

MTD 750-04465B

Flange Spacer, .390 x .671 x 1.095

$4.49

$

In Stock, only 2 left!

0

10

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-05108

Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

15

MTD 783-04584B-0637

Gas Tank Support Bracket

$19.99

$

Usually ships in 3-6 days

0

16

MTD 783-04873B-0637

Dash, No RMC - Powder Black

Note: RMC® (Reverse Mowing Control)

$214.99

$

Usually ships in 3-6 days

0

16

MTD 783-04873B-0691

Dash, No RMC - Black Jack
(Superseded to 783-04873B-0637)

Note: RMC® (Reverse Mowing Control)

$214.99

$

Usually ships in 3-6 days

0

17

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

18

MTD 746-04364

Throttle/Choke Cable Assembly

$48.99

$

In Stock, only 2 left!

0

19

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

20

MTD 783-04903A

Speed Latch - No RMC
(Superseded to 783-04903)

Note: RMC® (Reverse Mowing Control)

$8.99

$

Usually ships in 3-6 days

0

21

MTD 683-04448-0637

Battery Assembly Rod

$10.99

$

In Stock, only 1 left!

0

22

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

23

MTD 751-0555B

1.5 Gallon Fuel Tank
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

23

MTD 951-04304

1.36 Gallon Fuel Tank
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

24

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

25

MTD 751-12089-28

Hose Vent, 3/16

$8.99

$

In Stock, only 1 left!

0

26

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

27

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

28

MTD 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

29

MTD 951-10589

5 Gallon Carbon Canister

$72.99

$

Usually ships in 3-6 days

0

30

MTD 951-10590

Vent Filter Canister

$15.99

$

Usually ships in 3-6 days

0

31

MTD 951-10610

Canister Adapter

$23.99

$

Usually ships in 3-6 days

0

32

MTD 751-10749-30

Fuel Hose, White

$36.99

$

Usually ships in 3-6 days

0

33

MTD 751-10750-28

Fuel Hose, Yellow

$

$

Not available

34

MTD 710-04593

Screw, 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

35

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

37

MTD 925-0963

Miniature Lamp 12V Socket

$7.49

$

In Stock, only 4 left!

0

38

MTD 731-04949A

Lens Grill

$26.99

$

In Stock, only 1 left!

0

39

MTD 731-05078C

Dash Collar

$18.99

$

In Stock, only 2 left!

0

40

MTD 738-04091A

Shoulder Screw, 5/16-18 x .43 x .29

$3.99

$

Usually ships in 3-6 days

0

41

MTD 783-05327B-0637

Left Support Pivot Bracket

$40.99

$

Usually ships in 3-6 days

0

42

MTD 783-05328A-0637

Right Support Pivot Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

43

MTD 783-05454-0637

Hood Pivot Bracket

$31.99

$

Usually ships in 3-6 days

0

44

MTD 783-05684-0638

Hood - Red

$

$

Not available

44

MTD 783-05684-0662

Hood - Gray

$180.99

$

Usually ships in 3-6 days

0

45

MTD 783-05685-0638

Grille - Red
(Superseded to 783-05685A-0638)

$140.99

$

Usually ships in 3-6 days

0

45

MTD 783-05685-0662

Grille - Gray
(Superseded to 783-05685A-0662)

$140.99

$

Usually ships in 3-6 days

0

46

MTD 951-10947

Fuel Cap, 2.25"
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

47

MTD 751-10441

Rollover Valve
(Superseded to 751-12118)

$35.99

$

In Stock, only 1 left!

0

48

MTD 735-04081

Rubber Grommet, 23 x 3.55

$4.99

$

In Stock, Qty 20+

0

49

MTD 925-04659

Key Switch

$44.99

$

In Stock, Qty 20+

0

MTD 925-04082

Harness
(Superseded to 925-04567K)

Note: Not shown

$133.99

$

In Stock, only 2 left!

0
