13AX694G401 - Yard-Man Lawn Tractor (1998) Deck Assembly Parts Diagram

Lawn Tractor

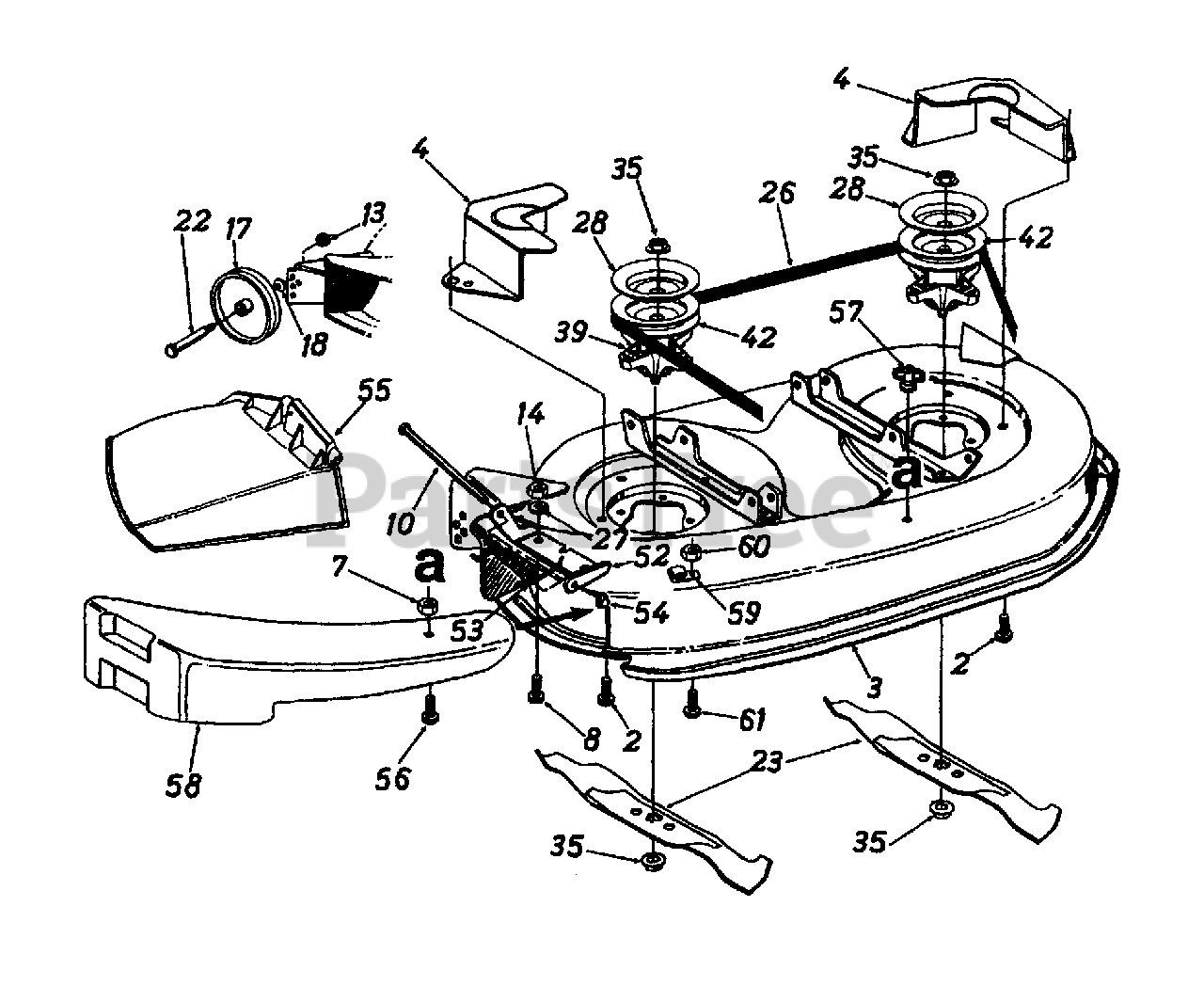

Deck Assembly Parts Diagram

  • Title

2

Cub Cadet 710-1260

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 683-0141

42" Deck Ass'y.
(Superseded to 983-0141B)

Variations

Cub Cadet 683-0141-0483

USE 983-0141B-0637 DECK ASM- - CHARCOAL GRAY (0483)

$808.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0141-0637

USE 983-0141B-0637 DECK ASM- - POWDER BLACK (0637)

$808.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0141-0638

USE 983-0141B-0637 DECK ASM- - MTD/TROY-BILT RED (0638)

$808.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0141-0648

USE 983-0141B-0637 DECK ASM- - TECH GRAY (0648)

$808.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0141-0665

USE 983-0141B-0637 DECK ASM- - YARDMAN GREEN (0665)

$808.99

$

Usually ships in 3-6 days

0

$752.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-0698

42" Deck Ass'y. Comp.

Note: (For Service Only)

Variations

Cub Cadet 753-0698-0483

42" DECK KIT - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 753-0698-0629

42" DECK KIT - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 753-0698-0638

42" DECK KIT - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 753-0698-0648

42" DECK KIT - TECH GRAY (0648)

$

$

Not available

Cub Cadet 753-0698-0650

42" DECK KIT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 753-0698-0662

42" DECK KIT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 753-0698-0665

42" DECK KIT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 753-0698-0667

42" DECK KIT - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

4

Cub Cadet 783-0149

Belt Guard Deck
(Superseded to 783-0149B)

Variations

Cub Cadet 783-0149-0637

Belt Guard, G-Deck Black - POWDER BLACK (0637)

$40.99

$

In Stock, only 4 left!

0

Cub Cadet 783-0149-0638

Belt Guard, G-Deck Black - MTD/TROY-BILT RED (0638)

$40.99

$

In Stock, only 4 left!

0

Cub Cadet 783-0149-0648

Belt Guard, G-Deck Black - TECH GRAY (0648)

$40.99

$

In Stock, only 4 left!

0

Cub Cadet 783-0149-0665

Belt Guard, G-Deck Black - YARDMAN GREEN (0665)

$40.99

$

In Stock, only 4 left!

0

$40.99

$

In Stock, only 4 left!

0

7

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

Note: Optional

$4.49

$

In Stock, Qty 8

0

8

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

Cub Cadet 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 19

0

17

Cub Cadet 734-0973

Deck Wheel - 5"

$12.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

23

Cub Cadet 742-0616

3 in 1 Blade
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

26

Cub Cadet 754-0371A

V-Belt
(Superseded to 954-0371A)

$103.99

$

In Stock, only 2 left!

0

27

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 783-0342

Brake Disc
(Superseded to 783-0342A)

$

$

Not available

?33

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

35

Cub Cadet 712-0417A

Hex Flange Nut 5/8-18 Thd.

$6.99

$

In Stock, Qty 20+

0

?37

Cub Cadet 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

39

Cub Cadet 618-0142

Blade Spindle Ass'y. Comp.
(Superseded to 918-0142C)

Note: (lncl. Ref. 28, 35, 42)

$134.99

$

In Stock, Qty 5

0

42

Cub Cadet 756-0980

5.75" Dia. Pulleys

$

$

Not available

52

Cub Cadet 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

Cub Cadet 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

Cub Cadet 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: (Incl. Ref.10, 52, 53, 54, 55)

$81.99

$

In Stock, Qty 6

0

56

Cub Cadet 710-0597

Hex Bolt 1/4-20 x 1" Lg.

Note: (Optional)

$3.99

$

In Stock, Qty 14

0

57

Cub Cadet 712-3087

Wing Nut 1/4-20 Thd

Note: (Optional)

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 731-1643A

Mulching Plugs
(Superseded to OEM-190-116)

Note: (Code N); (Optional)

$101.99

$

In Stock, only 2 left!

0

59

Cub Cadet 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

60

Cub Cadet 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0
