13AX61RH748 (LX 465) - Toro Lawn Tractor (SN: 1A117H10393 & Above) (2007) STEERING SHAFT AND FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

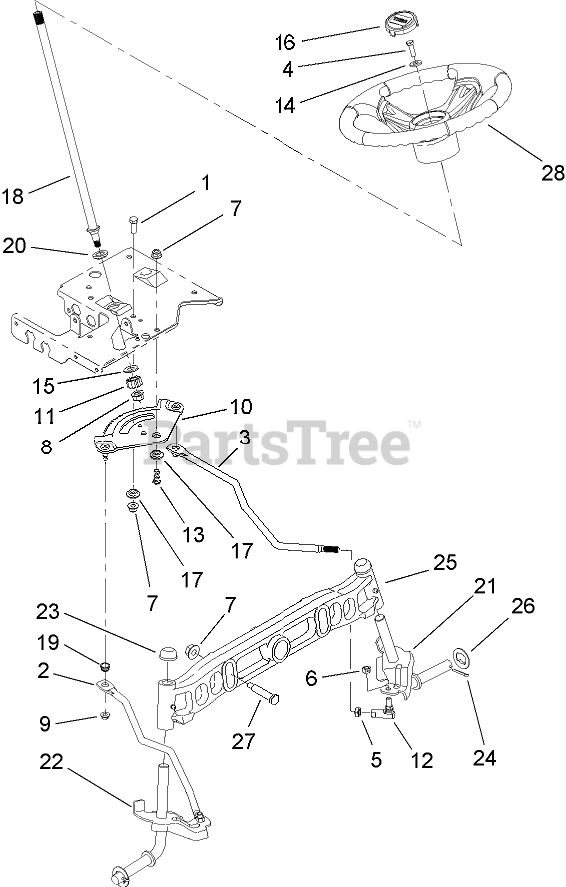

STEERING SHAFT AND FRONT AXLE ASSEMBLY Parts Diagram

1

Toro 112-0492

SCREW-HH

$7.49

$

In Stock, only 2 left!

0

2

Toro 112-0355

LINK-DRAG, RH

$

$

Not available

3

Toro 112-0346

LINK-DRAG, LH

$

$

Not available

4

Toro 112-0473

SCREW-HH

$

$

Not available

5

Toro 112-0493

NUT-JAM

$7.99

$

In Stock, only 4 left!

0

6

Toro 112-0483

NUT-HEX, LOCK

$

$

Not available

7

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 9

0

8

Toro 112-0859

NUT-LOCK, FLANGE

$7.99

$

In Stock, Qty 14

0

9

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

10

Toro 112-0862

GEAR-STEERING
(Superseded to 119-3976)

$157.99

$

In Stock, Qty 6

0

11

Toro 112-0863

GEAR-PINION, STEERING

$21.99

$

In Stock, Qty 20+

0

12

Toro 112-0917

BALL JOINT ASM

$42.99

$

In Stock, Qty 14

0

13

Toro 112-0631

SCREW-HH

$7.99

$

In Stock, Qty 7

0

14

Toro 112-0924

WASHER-FLAT

$7.99

$

In Stock, only 2 left!

0

15

Toro 112-0925

WASHER-FLAT

$7.99

$

In Stock, Qty 13

0

16

Toro 112-3734

CAP-WHEEL, STEERING

$6.99

$

Usually ships in 3-6 days

0

17

Toro 112-0881

SPACER-SHOULDER

$10.99

$

In Stock, Qty 20+

0

18

Toro 112-5804

SHAFT-STEERING

$133.99

$

In Stock, only 2 left!

0

19

Toro 112-0929

BUSHING

$7.99

$

In Stock, Qty 20+

0

20

Toro 112-0930

BEARING-FLANGE, HEX

$11.99

$

In Stock, Qty 20+

0

21

Toro 112-6015

RH AXLE ASM

$137.99

$

Usually ships in 3-6 days

0

22

Toro 112-6016

LH AXLE ASM

$137.99

$

Usually ships in 3-6 days

0

23

Toro 112-0323

CAP

$7.99

$

In Stock, only 2 left!

0

24

Toro 112-0519

PIN-COTTER

$8.49

$

In Stock, only 1 left!

0

25

Toro 112-5971

AXLE-PIVOT, FRONT
(Superseded to 112-0416)

$

$

Not available

26

Toro 112-5972

WASHER-FLAT

$

$

Not available

27

Toro 112-0486

BOLT-SHOULDER

$14.99

$

Usually ships in 3-6 days

0

28

Toro 112-5973

WHEEL-STEERING, SOFTGRIP
(Superseded to 112-0438)

$

$

Not available
