13AX61RH744 (LX 465) - Toro Lawn Tractor (SN: 1A117H10393 & Above) (2007) DECK LIFT ARM ASSEMBLY Parts Diagram

Lawn Tractor

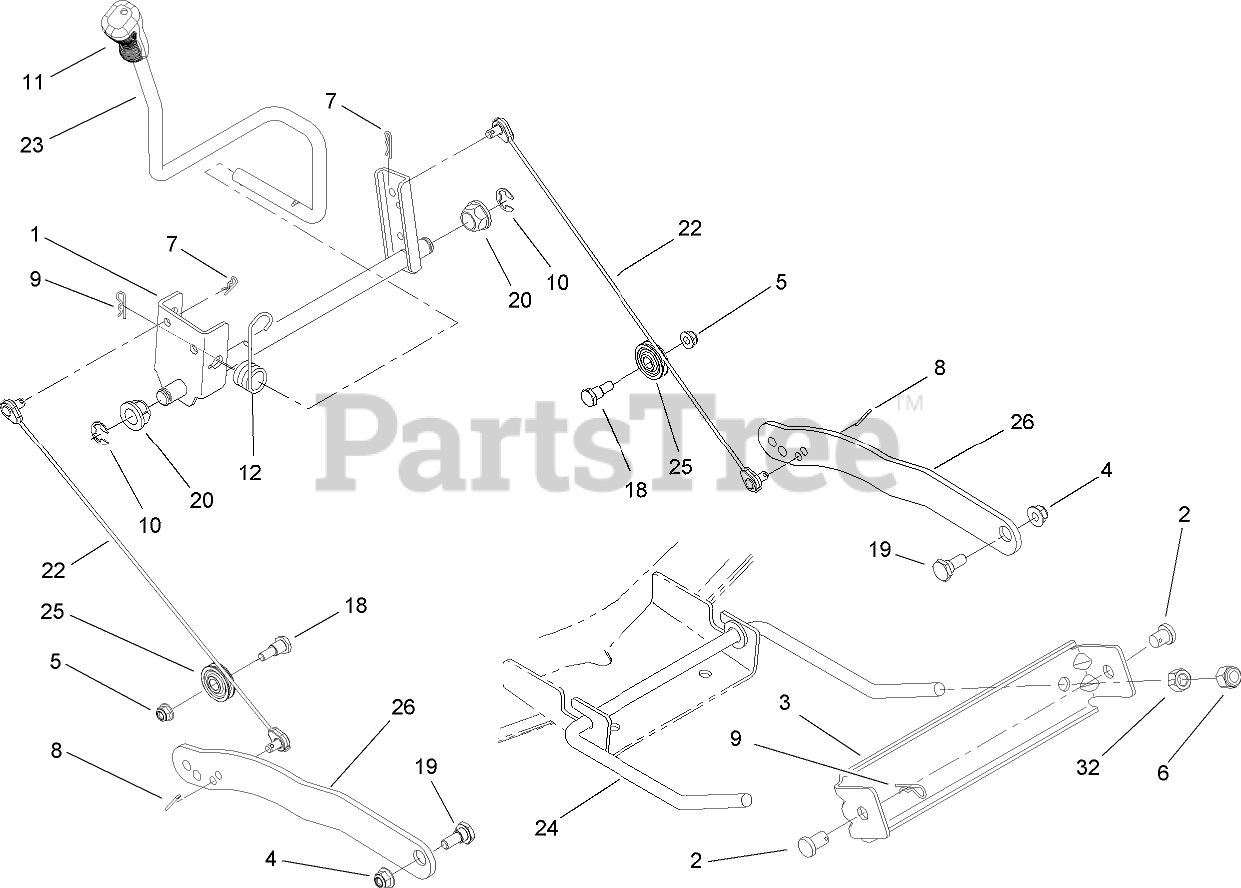

DECK LIFT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 112-5969

LIFT SHAFT ASM

$78.99

$

Usually ships in 3-6 days

0

2

Toro 112-0376

PIN-BRACKET, LIFT

$28.99

$

Usually ships in 3-6 days

0

3

Toro 112-0707

BRACKET-STABILIZER

$

$

Not available

4

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

5

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

6

Toro 112-0476

NUT-LOCK, HEX (NYLON)

$7.49

$

In Stock, only 2 left!

0

7

Toro 112-0459

PIN-COTTER

$

$

Not available

8

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

9

Toro 112-0394

PIN-HAIR

$

$

Not available

10

Toro 112-0586

RING-E

$7.99

$

Usually ships in 3-6 days

0

11

Toro 112-0585

GRIP-HANDLE

$

$

Not available

12

Toro 112-0477

SPRING-TORSION

$

$

Not available

18

Toro 112-0443

BOLT-SHOULDER

$

$

Not available

19

Toro 112-0565

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

20

Toro 112-0347

BEARING-FLANGE

$16.99

$

Usually ships in 3-6 days

0

22

Toro 112-0374

CABLE-LIFT

$41.99

$

In Stock, only 1 left!

0

23

Toro 112-5970

HANDLE-LIFT

$

$

Not available

24

Toro 112-0456

ROD-FRONT, ADJUST

$69.99

$

In Stock, only 1 left!

0

25

Toro 112-0502

PULLEY-ROLLER

$12.99

$

Usually ships in 3-6 days

0

26

Toro 112-0724

LINK-LIFT

$

$

Not available

32

Toro 112-0458

NUT-HEX

$

$

Not available
