13AX61RH544 (LX 465) - Toro Lawn Tractor (SN: 1A117H10393 & Above) (2007) PTO ENGAGE ASSEMBLY Parts Diagram

Lawn Tractor

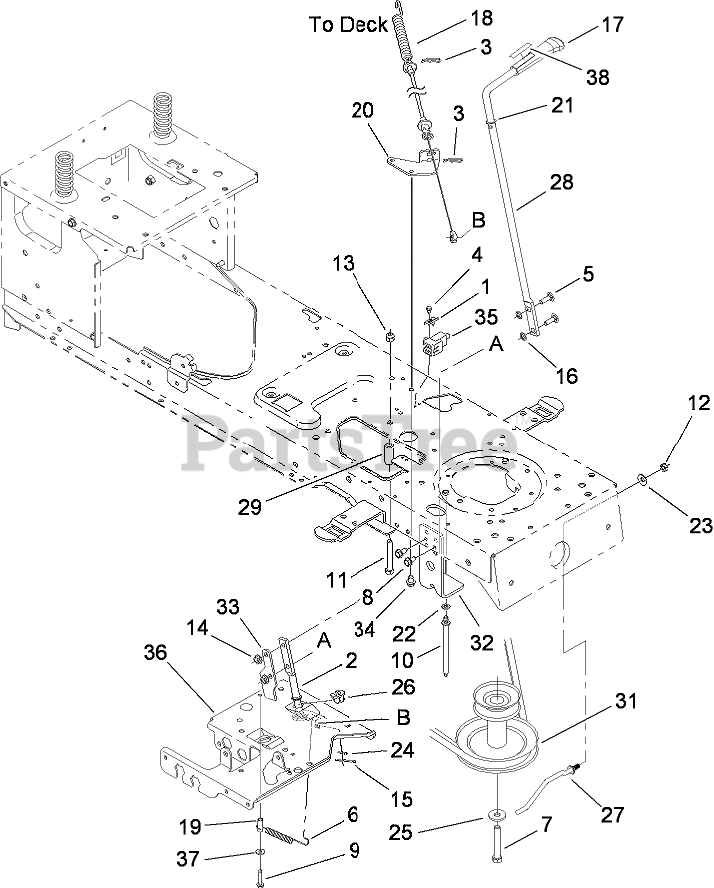

PTO ENGAGE ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0671

PLATE-SWITCH

$

$

Not available

2

Toro 112-6007

LEVER-ENGAGE, PTO

$62.99

$

Usually ships in 3-6 days

0

3

Toro 112-0398

PIN-CLICK

$27.99

$

In Stock, only 4 left!

0

4

Toro 112-0651

SCREW-TAP

$

$

Not available

5

Toro 112-0598

BOLT-CARR

$

$

Not available

6

Toro 112-0567

SPRING-EXTENSION

$16.99

$

In Stock, only 1 left!

0

7

Toro 112-6008

SCREW-HH

$

$

Not available

8

Toro 112-0472

SCREW-HH, TAP

$7.49

$

In Stock, only 1 left!

0

9

Toro 112-0843

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

10

Toro 112-0318

PIN-GUARD, BELT

$12.99

$

Usually ships in 3-6 days

0

11

Toro 112-6009

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

12

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

13

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

14

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

15

Toro 112-6010

PIN-COTTER

$9.49

$

Usually ships in 3-6 days

0

16

Toro 112-0645

NUT-PUSH

$7.49

$

Usually ships in 3-6 days

0

17

Toro 112-6011

KNOB-PTO

$

$

Not available

18

Toro 112-0504

CABLE-ENGAGE, DECK

$82.99

$

In Stock, only 3 left!

0

19

Toro 112-0644

SPACER

$

$

Not available

20

Toro 112-0649

BRACKET-CABLE

$

$

Not available

21

Toro 112-0498

WASHER-FLAT

$5.99

$

Usually ships in 3-6 days

0

22

Toro 112-0366

WASHER-LOCK

$

$

Not available

23

Toro 112-0435

WASHER-BELL

$

$

Not available

24

Toro 112-0601

WASHER-FLAT

$

$

Not available

25

Toro 112-0380

WASHER-FLAT

$16.99

$

Usually ships in 3-6 days

0

26

Toro 112-0384

BEARING-FLANGE, HEX (SPLIT)

$6.99

$

Usually ships in 3-6 days

0

27

Toro 112-5820

ROD-KEEPER, BELT

$

$

Not available

28

Toro 112-0393

HANDLE-ENGAGE, DECK

$60.99

$

Usually ships in 3-6 days

0

29

Toro 112-0433

SPACER

$

$

Not available

31

Toro 112-6017

PULLEY-ENGINE

$124.99

$

Usually ships in 3-6 days

0

32

Toro 112-0689

BRACKET-DECK, UP STOP

$

$

Not available

33

Toro 112-0516

BRACKET-STOP

$

$

Not available

34

Toro 112-0676

SCREW-TAP

$

$

Not available

35

Toro 112-0455

SWITCH-INTERLOCK

$45.99

$

Usually ships in 3-6 days

0

36

Toro 112-0681

BRACKET-SUPPORT, STEERING

$89.99

$

In Stock, only 3 left!

0

37

Toro 112-3695

WASHER-FLAT
(Superseded to 112-5989)

$7.49

$

Usually ships in 3-6 days

0

38

Toro 112-3704

DECAL-HANDLE, PTO

$

$

Not available
