13AX61RG848 (LX 427) - Toro Lawn Tractor (SN: 1A019H10001 - 1A309H19999) (2009 & Before) STEERING AND FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

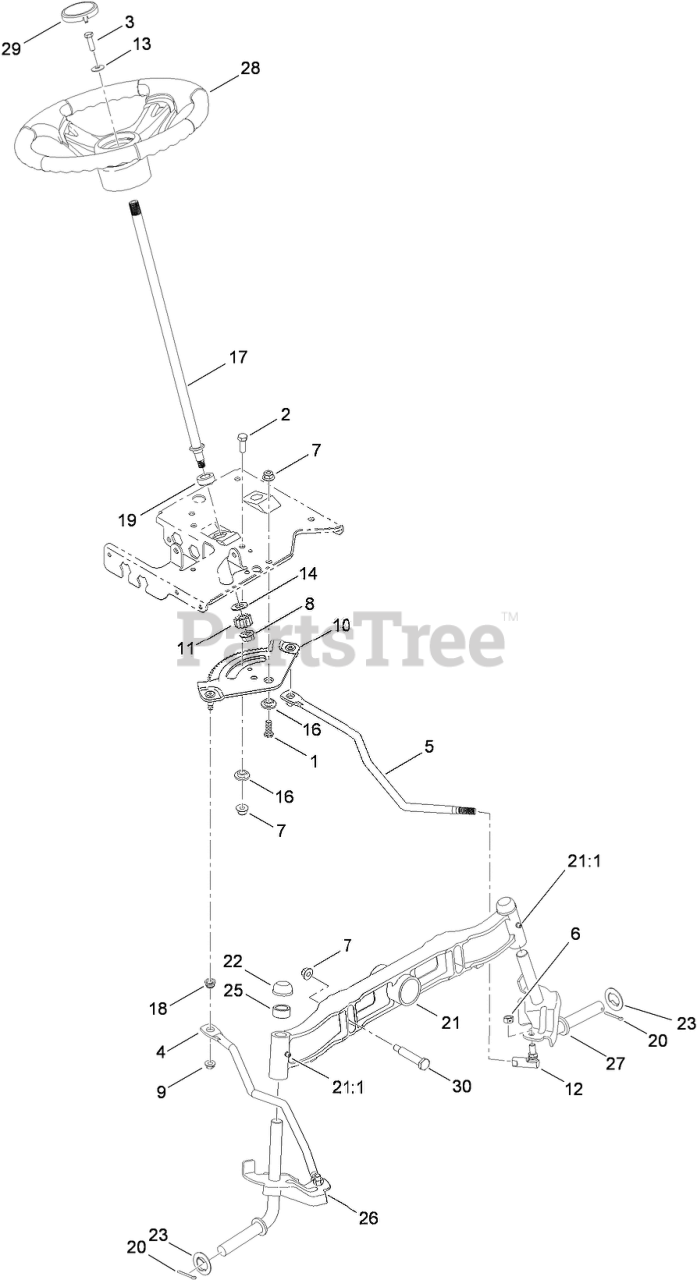

STEERING AND FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0631

SCREW-HH

$7.49

$

In Stock, Qty 7

0

2

Toro 112-0492

SCREW-HH

$7.49

$

In Stock, only 2 left!

0

3

Toro 112-0473

SCREW-HH

$

$

Not available

4

Toro 112-0355

LINK-DRAG, RH

$

$

Not available

5

Toro 112-0346

LINK-DRAG, LH

$

$

Not available

6

Toro 112-0483

NUT-HEX, LOCK

$

$

Not available

7

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

8

Toro 112-0859

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 2 left!

0

9

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

10

Toro 112-0862

GEAR-STEERING
(Superseded to 119-3976)

$148.99

$

In Stock, only 3 left!

0

11

Toro 112-0863

GEAR-PINION, STEERING

$20.99

$

In Stock, Qty 5

0

12

Toro 112-0917

BALL JOINT ASM

$40.99

$

In Stock, Qty 7

0

13

Toro 112-0924

WASHER-FLAT

$7.49

$

In Stock, only 2 left!

0

14

Toro 112-0925

WASHER-FLAT

$7.49

$

In Stock, Qty 13

0

16

Toro 112-0881

SPACER-SHOULDER

$9.99

$

In Stock, Qty 20+

0

17

Toro 112-6097

SHAFT-STEERING

$125.99

$

In Stock, only 2 left!

0

18

Toro 112-0929

BUSHING

$7.49

$

In Stock, Qty 20+

0

19

Toro 112-6257

BEARING-FLANGE, HEX

$12.99

$

In Stock, only 2 left!

0

20

Toro 112-0860

PIN-COTTER

$6.99

$

In Stock, Qty 7

0

21

Toro 112-6099

PIVOT-AXLE, CAST IRON

$

$

Not available

21:1

Toro 112-0926

FITTING-GREASE

$7.99

$

In Stock, Qty 5

0

22

$7.49

$

In Stock, only 2 left!

0

23

Toro 112-6258

WASHER-FLAT

$

$

Not available

25

Toro 112-6136

SPACER

$6.49

$

Usually ships in 3-6 days

0

26

Toro 112-6015

RH AXLE ASM

$129.99

$

Usually ships in 3-6 days

0

27

Toro 112-6016

LH AXLE ASM

$129.99

$

Usually ships in 3-6 days

0

28

Toro 112-6100

3 SPOKE WHEEL STEERING ASM

$104.99

$

In Stock, only 2 left!

0

29

Toro 112-3734

CAP-WHEEL, STEERING

$6.49

$

Usually ships in 3-6 days

0

30

Toro 112-0699

BOLT-SHOULDER

$

$

Not available
