13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2009) Mowing Deck 42 Inch Parts Diagram

Range Rider Lawn Tractor

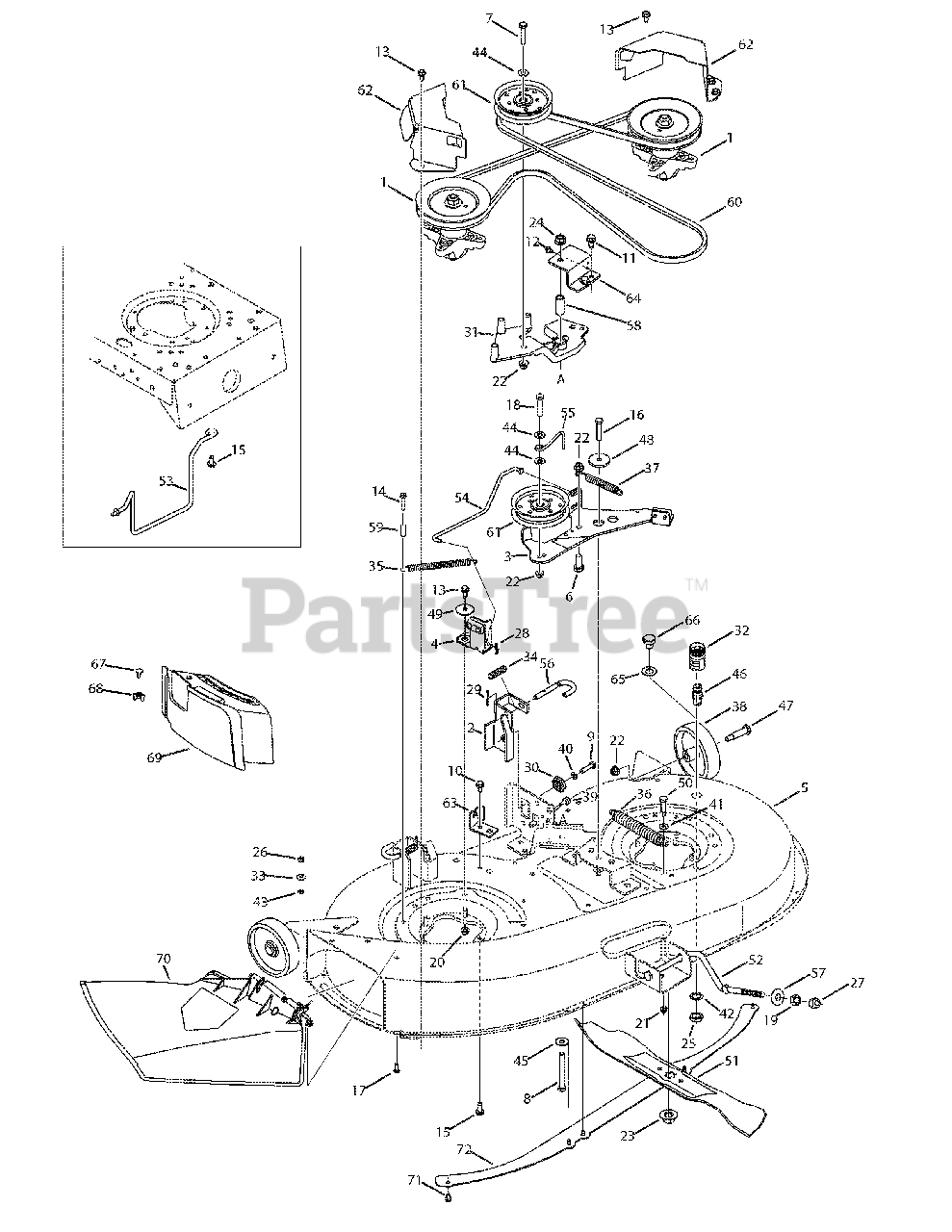

Mowing Deck 42 Inch Parts Diagram

  • Title

1

Troy-Bilt 918-04456

Spindle Assembly Pulley 6.3 Dia
(Superseded to 918-04456B)

$128.99

$

In Stock, Qty 6

0

1

Troy-Bilt 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 938-04241

Spindle Shaft :5.50 LG

Note: Not shown

$34.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 750-04739

Spacer:.820x 1.150 x .480

Note: Not shown

$13.99

$

In Stock, only 4 left!

0

1

Troy-Bilt 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

1

Troy-Bilt 956-1227

Deck Pulley:6.3 Dia

Note: Not shown

$26.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 683-0254B-0637

Deck Hanger Bracket Assy. LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 683-04138B-0637

Brake Assembly, 42" Deck
(Superseded to 683P04138C)

$117.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 983-04167

Brake Assembly, 42" Deck

$47.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 983-04261-0637

Deck Assembly 42" W/Whl Brkt.

$667.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0216

Screw, 3/8-16 x .75 GR5 STD

$4.49

$

In Stock, Qty 16

0

7

Troy-Bilt 710-0347

Screw, 3/8-16 x 1.75 GR5 STD

$5.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0510

Screw, 7/16-20 x 3.00 GR5 STD

$11.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-0528

Screw, 5/16-18 x 1.25 GR5 STD

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-04484

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0623

Screw, 3/8-16 x 0.750

$4.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 710-0653

Screw, 1/4-20 x 0.375

$4.49

$

In Stock, Qty 13

0

13

Troy-Bilt 710-3008

Screw, 5/16-18 x 0.750

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0778

Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 3 left!

0

15

Troy-Bilt 710-1260A

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-3005

Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 12

0

17

Troy-Bilt 710-3015

Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-3144

Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 7

0

19

Troy-Bilt 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 912-0641

Hex Nut, M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

26

Troy-Bilt 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

27

Troy-Bilt 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 914-0104

Cotter Pin, .072 Dia. x 1.13 Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 917-04074

Deck Gear Adjustment

$13.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 719-04233-0637

Idler Bracket, Cast 42" DECK

$71.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 726-0233

Push Nut, .25 ID x .50 OD

$4.49

$

In Stock, only 3 left!

0

34

Troy-Bilt 932-0306A

Compression Spring .531 x 1.75

$8.49

$

In Stock, only 4 left!

0

35

Troy-Bilt 732-04287

Extension Spring, .500 x 6.375

$15.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 732-0459C

Extension Spring, .94 x 6.74

$18.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 932-0470A

Extension Spring, .53 x 4.75

$9.99

$

In Stock, Qty 7

0

38

Troy-Bilt 734-0973

Deck Wheel, 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 735-0271A

Bumper, .62 Dia. x .3

$8.99

$

In Stock, only 4 left!

0

40

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

42

Troy-Bilt 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

43

Troy-Bilt 736-0270

Bell Washer, .265 x.75 x .062

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 736-0322

Flat Washer, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 8

0

46

Troy-Bilt 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

47

Troy-Bilt 938-0373

Shoulder Bolt, .496 x 1.525

$9.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 738-04166

Shoulder Spacer, .5000 X .1475

$6.49

$

In Stock, Qty 8

0

50

Troy-Bilt 738-04272

Shoulder Screw, .374 x 1.16

$

$

Not available

51

Troy-Bilt 942-0616A

3 in 1 Star Blade 21.23"LG

$31.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 747-04269A

Adjustible Front Deck Rod,

$27.99

$

In Stock, only 4 left!

0

53

Troy-Bilt 747-04857

Belt-Keeper Rod, 42"

$22.99

$

In Stock, Qty 13

0

54

Troy-Bilt 747-04501

Brake Control Ride, 42"

$

$

Not available

55

Troy-Bilt 747-04530

Belt Keeper Rod, 42" IDLER

$7.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 747-1116

Deck Release Handle Rod

$12.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 17

0

58

Troy-Bilt 750-04637B

Spacer, .455 X .697 X 1.585

$

$

Not available

59

Troy-Bilt 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 954-04045

V-Belt

$56.99

$

In Stock, Qty 13

0

61

Troy-Bilt 756-04129B

Idler Pulley, 4.25"DIA
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 783-04327B-0637

Belt Covers, 6.00 DIA

$24.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 783-04740-0637

Cable Deck Engage Bracket

$10.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 783-05490-0637

Support Bracket

$

$

Not available

65

Troy-Bilt 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 738-04146

Bolt Plug, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

67

Troy-Bilt 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

68

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

69

Troy-Bilt 731-2363

Mulch Plug

$29.99

$

In Stock, only 4 left!

0

70

Troy-Bilt 931-1032B

Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

71

Troy-Bilt 710-0599

Screw, Hex, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

72

Troy-Bilt 783-1146A

Deck Skirt, 42"
(Superseded to 753-0884)

Variations

Troy-Bilt 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

In Stock, only 1 left!

0

$82.99

$

In Stock, only 1 left!

0
