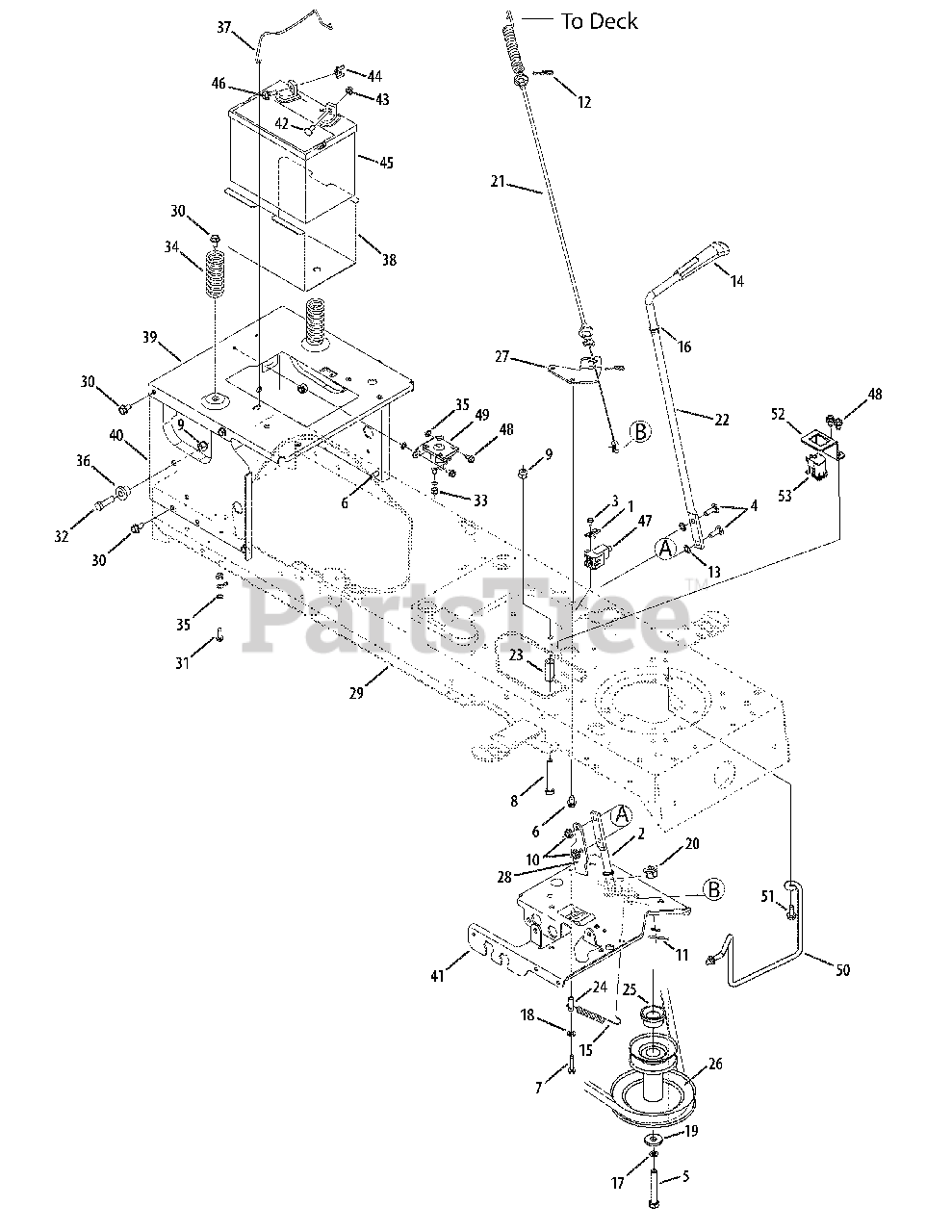

13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2009) Frame & Manual PTO Parts Diagram

Range Rider Lawn Tractor

Frame & Manual PTO Parts Diagram

  • Title

1

Troy-Bilt 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 947-04036A

Lever Assembly, Engagement

$43.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 910-0224

Screw, #10-16, 0.500

$3.99

$

In Stock, Qty 17

0

4

Troy-Bilt 710-0276

Screw, Carriage, 5/16-18, 1.00

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04608

Screw, 7/16-20, 3.25 42" Deck

$6.99

$

In Stock, Qty 8

0

6

Troy-Bilt 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 8

0

7

Troy-Bilt 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-3011

Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 16

0

9

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 914-0115

Pin, Cotter, 1/8 x 1.00
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 914-0145

Click Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 726-0201

Nut, Speed, .3125 ID

$6.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 731-2111B

Knob, PTO

$

$

Not available

15

Troy-Bilt 732-04248

Extension Spring, .38 OD x 3.9 Lg

$10.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 936-0108

Washer, Flat, .510 x .750 x .033

$6.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 936-0171

Washer, Lock, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0322

Washer, Flat, .450 x1.250 x.164

$9.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 741-0708

Bearing, Flange, Hex Split .500 ID

$4.49

$

In Stock, only 3 left!

0

21

Troy-Bilt 746-04353A

Deck Engagement Cable
(Superseded to 946-04353A)

$51.99

$

In Stock, Qty 7

0

22

Troy-Bilt 747-04470

Engagement Handle, Deck

$

$

Not available

23

Troy-Bilt 748-0415B

Spacer, .385 ID x .635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

24

Troy-Bilt 750-0566A

Spacer, .260 x .372 x 1.030 Lg.

$9.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 750-0956

Spacer, 1.010 x 1.40 x .825

$19.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 956-04067A

Pulley, Engine, 42" Deck
(Superseded to 956-04067B)

$81.99

$

In Stock, Qty 7

0

27

Troy-Bilt 783-05358-0637

Cable Bracket

$39.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 783-0744A-0637

Stop Bracket, Engagement

$44.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 683-04173B-0637

Frame Assembly, Lower

$

$

Not available

30

Troy-Bilt 710-04484

Screw, 5/16-18 x 0.625

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 732-04561

Spring, Compr., 1.71 x 3.735 x .238

$16.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 936-0222

Washer, Lock, 1/4, External
(Superseded to 736-0222)

$

$

Not available

36

Troy-Bilt 738-04058

Spacer, Shoulder, .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

37

Troy-Bilt 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 783-0349-0637

Battery Tray

$

$

Not available

39

Troy-Bilt 783-06089-0637

Seat Bracket, Frame

$57.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 783-04809C-0637

Frame, Upper

$

$

Not available

41

Troy-Bilt 783-04612-0637

Support Bracket, Steering

$89.99

$

In Stock, only 3 left!

0

42

Troy-Bilt 710-04666

Hex Head Flange Screw

$6.99

$

In Stock, only 3 left!

0

43

Troy-Bilt 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

44

Troy-Bilt 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 925-1707D

Battery, 245 CCA

$

$

Not available

46

Troy-Bilt 738-1132

Screw, Shoulder, .250 x .150

$5.49

$

In Stock, only 2 left!

0

47

Troy-Bilt 925-04039

Switch, Interlock

$24.99

$

In Stock, Qty 8

0

48

Troy-Bilt 710-0599

Screw, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 725-04439

Solenoid, 12V, 100 Amp
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 747-04857

Belt Keeper Rod Assembly 42" Deck

$22.99

$

In Stock, Qty 8

0

51

Troy-Bilt 710-1260A

Screw, 5/16-18, .750 42" Deck

$3.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 783-04722-0637

Parking Brake Switch Bracket

$

$

Not available

53

Troy-Bilt 925-3167

Snap Mount Switch

$14.99

$

In Stock, only 2 left!

0
