13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2009) Fender, Deck Lift & Seat Parts Diagram

Range Rider Lawn Tractor

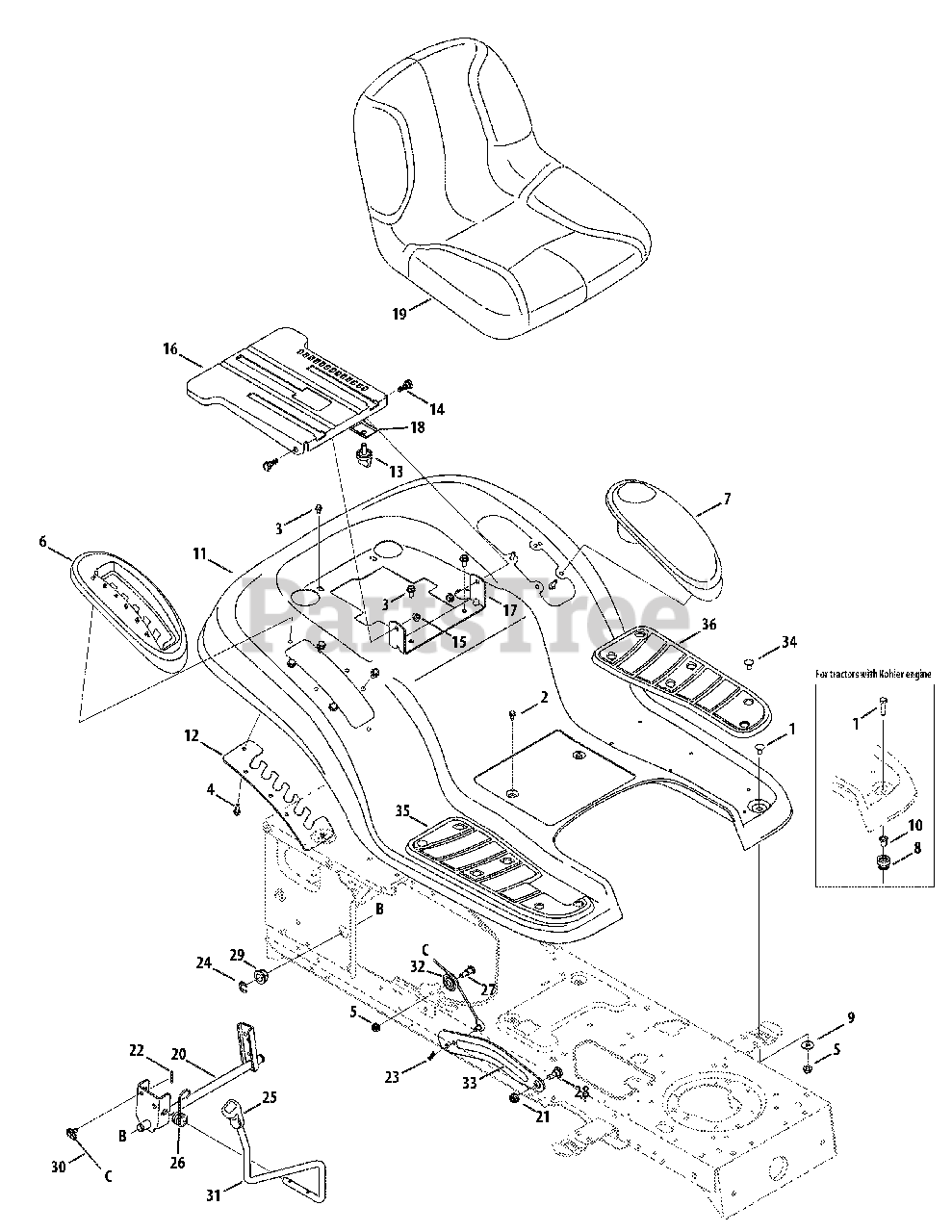

Fender, Deck Lift & Seat Parts Diagram

  • Title

1

Troy-Bilt 710-0528

Hex Screw, 5/16-18 x 1.25 (Sngle. Cyl.)

Note: Range Rider

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 (Twin Cyl. Models)

Note: Horse

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04484

Screw, 5/16-18, 0.750x

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-06795

Deck Lift Lever Cover

$24.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-1993A

Cover with Cup Holder

$25.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 735-0690

Grommet, .4375 x .750 (Sngle. Cyl.)

Note: Range Rider

$11.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 736-3078

Washer, Flat,.344 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 750-3310

Flanged Spacer (Sngle. Cyl. Models only)

Note: Range Rider

$5.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 783-06246-0638

Hydro Fender, 4-style

$

$

Not available

12

Troy-Bilt 783-0677B-0637

Deck Lift Plate

$

$

Not available

13

Troy-Bilt 720-04061

Knob, 3/8-16

$5.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 938-0296

Screw, Shoulder,.437 x.268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 783-06049-0637

Seat Mount Bracket

$68.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 783-06088-0637

Seat Pivot Bracket
(Superseded to 783-06088A-0637)

$21.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 783-06266-0637

Seat Knob Adjust Bracket

$8.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 757-04086

High Back Seat
(Superseded to 757-05232)

$290.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 683-04223-0637

Deck Lift Shaft Assembly

$

$

Not available

21

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 914-0104

Pin, Cotter,.072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

24

Troy-Bilt 716-0106A

Ring, E Type,.625 Dia.

$5.49

$

In Stock, only 2 left!

0

25

Troy-Bilt 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

27

Troy-Bilt 738-0138A

Screw, 5/16-18 x.620 Gr2

$6.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 738-04130

Scr.,Shldr, .625 x.165,(42" Deck)
(Superseded to 738-04130A)

Note: Range Rider

$9.49

$

In Stock, Qty 10

0

28

Troy-Bilt 938-0380

Scr.,Shldr, .500 x.270, (50" Deck)
(Superseded to 738-0380)

Note: Horse

$7.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 746-0968

Cable, Lift, 16.16

$19.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 747-04447

Handle, Lift

$44.99

$

In Stock, only 3 left!

0

32

Troy-Bilt 756-1154

Pulley, Roller

$7.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 783-04494B-0637

Arm, Lift - RH (42" Deck)
(Superseded to 783-04494C-0637)

Note: Range Rider

$21.99

$

In Stock, Qty 12

0

33

Troy-Bilt 783-04711B-0637

Arm, Lift - LH (42" Deck)
(Superseded to 783-04711C-0637)

Note: Range Rider

$24.99

$

In Stock, Qty 13

0

33

Troy-Bilt 783-05546-0637

Arm, Lift - Universal (50" Deck)
(Superseded to 783-05546A-0637)

Note: Horse

$20.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

35

Troy-Bilt 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0
