13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2009) Engine Accessories Parts Diagram

Range Rider Lawn Tractor

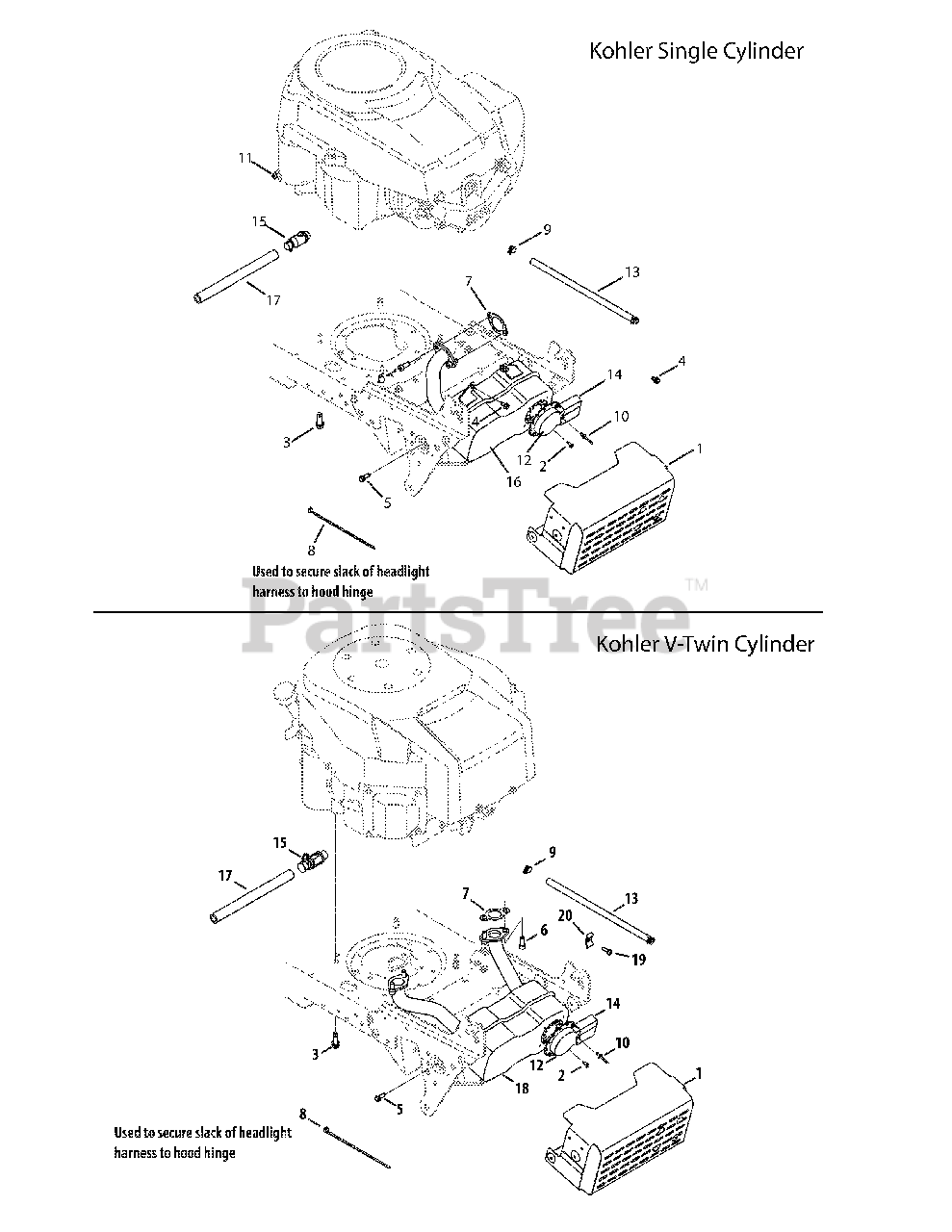

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 683-04549-0637

Shield, Muffler
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04683

Screw, Hex, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

4

Troy-Bilt 710-0599

Screw, Hex, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0642

Screw, Hex, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1314A

Screw, 5/16-18, 0.75

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt KH-20-041-12-S

Exhaust Gasket

$4.99

$

Usually ships in 2-5 days

0

8

Troy-Bilt 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 728-04000

Rivet, Pop, .188 x .325

$6.99

$

In Stock, Qty 7

0

11

Troy-Bilt 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 751-0564B

Deflector, Muffler

$13.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 751-10349

Fuel Line, Low Permeation

$9.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 751-10353

Extension, Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 951-10517A

Drain, Oil

$24.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 751-11022

Muffler, Single Inlet
(Superseded to 951-11022A)

$152.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 751-3141-14

Extension Hose, Oil Drain

$11.99

$

In Stock, Qty 7

0

18

Troy-Bilt 751-10528

Twin Muffler, Kohler
(Superseded to 951-10528B)

$160.99

$

In Stock, only 2 left!

0

19

Troy-Bilt KH-24-086-43-S

Self-Tap Screw, M5 x 0.8 Torx
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 2 left!

0

20

Troy-Bilt KH-47-237-02

Conduit Dual Clamp, Kohler
(Superseded to KH-47-237-02-S)

$10.99

$

Usually ships in 2-5 days

0
