13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2009) Drive System Parts Diagram

Range Rider Lawn Tractor

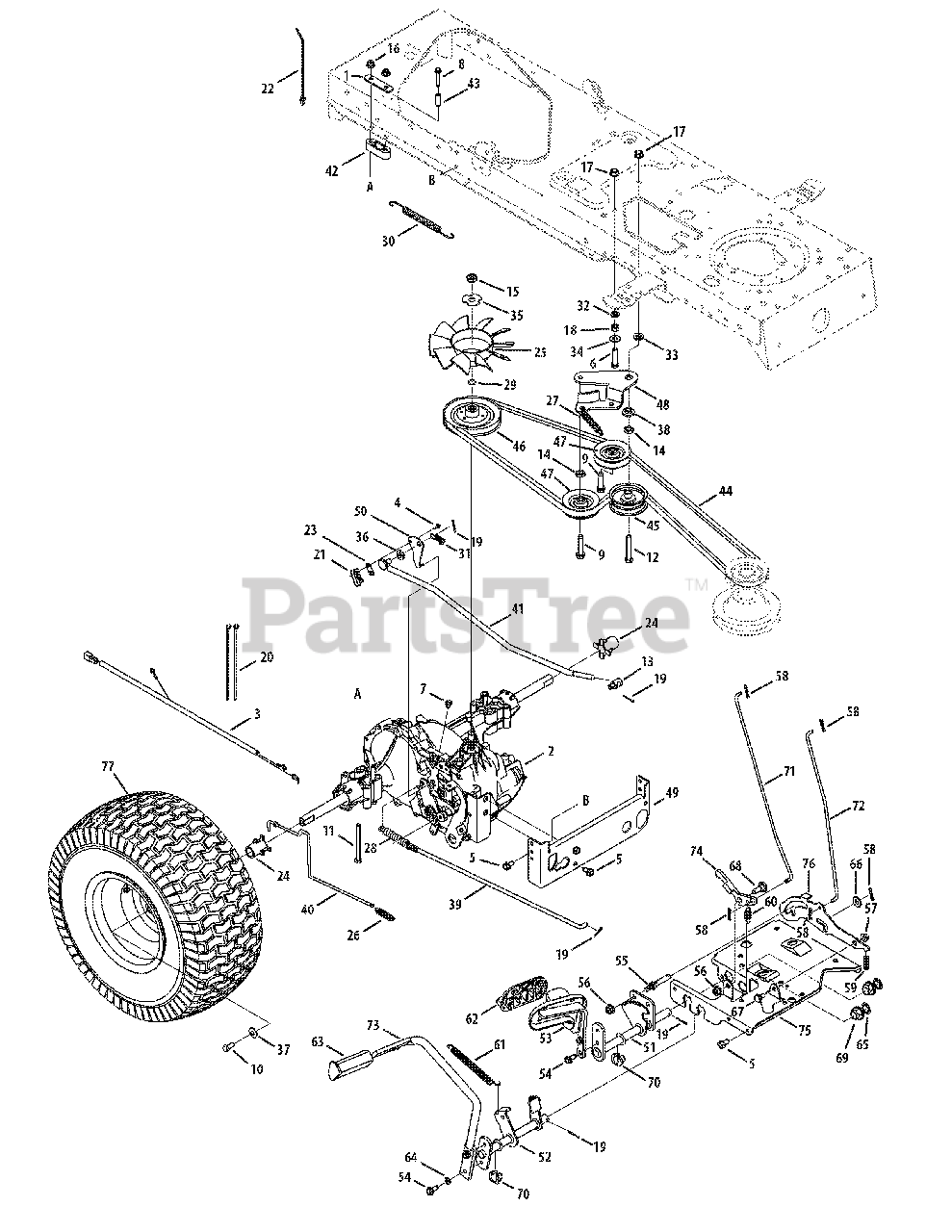

Drive System Parts Diagram

  • Title

1

Troy-Bilt 17840-0637

Transaxle Mounting Bracket

$11.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 918-0319

Hydrostatic Transmission, 0510

$

$

Not available

3

Troy-Bilt 629-0949B

Hydro Ground Harness Assembly

$43.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0227

Screw, #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04484

Self-Tap Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0520

Hex Head Screw, 3/8-16 x 1.50 Gr5

$4.49

$

In Stock, Qty 6

0

7

Troy-Bilt 710-0653

Self-Tap Screw, 1/4-20 x 0.375

$4.49

$

In Stock, Qty 8

0

8

Troy-Bilt 710-0778

Self-Tap Screw, 1/4-20 x 1.500

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-1007

Sems Self-Tap Screw, 3/8-16 x 1.500

$6.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 710-0627

Hex Head Screw, 5/16-24, .750 x Gr5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1266

Hex Head Screw, 5/16-18 x 3.50 Gr5

$9.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 710-3011

Hex Head Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 911-0832

Ferrule, 3/8-24 x .375

$15.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 912-0346

Flange Jam Nut, 1/2-20 Gr5
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

16

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18 Grf

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 912-0431

Flange Lock Nut, 3/8-16 Grf

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 912-3017

Hex Nut, 3/8-16 Gr5
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 914-0111

Cotter Pin, 3/32 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

20

Troy-Bilt 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

22

Troy-Bilt 926-0154

Push Mount Cable Tie, 7.5 Lg

$6.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 926-0320

Insulator Plate Nut

$6.99

$

In Stock, Qty 11

0

24

Troy-Bilt 731-05299

Sleeve, .765 Id X 1.500 Lg
(Superseded to 731-05299A)

$4.49

$

In Stock, only 3 left!

0

25

Troy-Bilt 731-06098

LT Hydro Fan

$19.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 932-0209

Extension Spring, .48 Od X 2.03

$7.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 732-04323B

Extension Spring, .770 X 3.720 Lg

$12.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 732-0716D

Extension Spring, .59 Od X 4.00 Lg

$13.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 732-0994

Extension Spring, .500 Dia X 7.0 Lg

$10.99

$

In Stock, Qty 9

0

31

Troy-Bilt 732-3118

Extension Spring, 3/8 Od X 1.44 Lg

$10.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 936-0169

Lock Washer, 3/8 Regular Duty
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 736-0258

Flat Washer, .385 X 1.0 X .135

$4.49

$

In Stock, only 2 left!

0

34

Troy-Bilt 936-0300

Flat Washer, .406 X .875 X .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 736-04263

Lock Washer, Hydro Trans.

$6.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 736-0242

Belleville Washer, .340 X .872 X .060

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 738-0372B

Shoulder Spacer, 1.00 X .38 X .38

$9.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 747-04139

Hydro Brake Rod

$24.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 747-1149

Hydro Bypass Rod

$24.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 747-1151

Hydro Control Rod

$

$

Not available

42

Troy-Bilt 948-0334

Spacer, T-Axle .68

$10.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 750-0566A

Spacer, .260 X .372 X 1.030 Lg

$9.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 954-04165

V-Belt, 4l X 78 Lg Poly

$53.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 756-04224

Flat Idler Pulley, 2.75 Od

$26.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 756-04308

Input Pulley, 4.13 Dia

$31.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 756-04325

Idler Pulley, V-Type X 3.06

$24.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 783-04442-0637

Center Double Idler Bracket

$35.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 783-0810B-0637

Hydro Torque Trans. Bracket

$

$

Not available

50

Troy-Bilt 783-1019B

Light Switch Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 647-0049A-0637

Hydro Control Assembly

$

$

Not available

52

Troy-Bilt 647-04100-0637

Brake Control Assembly

$

$

Not available

53

Troy-Bilt 683-0267C

Hydro Control Pedal Assembly

$

$

Not available

54

Troy-Bilt 710-1260A

Self-tap Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 711-04159B

Pin, 3/8-16 X 2.68lg

$7.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16 Grf

$3.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18 Gr5

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 914-0104

Cotter Pin, .072 Dia. X 1.13 Lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 732-0335

Compression Spring, .405 X 1.17

$

$

Not available

60

Troy-Bilt 732-0955

Extension Spring, .50 Od X 1.41 Lg

$9.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 732-0963

Extension Spring, .50 Dia X 6.37 Lg

$9.99

$

In Stock, only 4 left!

0

62

Troy-Bilt 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 735-3049A

Brake Control Pad

$12.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 936-0119

Lock Washer, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 736-0187

Flat Washer, .64 X 1.24 X .06

$4.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 736-0262

Flat Washer, .385 X .870 X .092

$3.99

$

In Stock, Qty 20+

0

67

Troy-Bilt 938-0155

Shoulder Bolt, .435 X .160, 5/16-18

$6.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 938-0380

Shoulder Bolt, .500 X .270, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

69

Troy-Bilt 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 741-3065B

Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 747-04093A

Brake Lock-Rod

$

$

Not available

72

Troy-Bilt 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 747-04641A-0637

Brake Pedal

$31.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 748-04039C

Latch, cruise

$

$

Not available

75

Troy-Bilt 783-04612-0637

Steering Support Bracket

$89.99

$

In Stock, only 3 left!

0

76

Troy-Bilt 783-0663E

Hydro Lockout Bracket

$17.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 634-0104-0911

Tire Assembly Complete 20 x 8 x 8

Note: Range Rider

$144.99

$

In Stock, only 1 left!

0

77

Troy-Bilt 734-1730-0901

Tire, 20 x 8 x 8 Sq. Shldr.

Note: Range Rider - Not Shown

$99.99

$

In Stock, only 1 left!

0

77

Troy-Bilt 634-0177-0911

Tire Assembly Complete 20 x 10 x 8

Note: Horse

$473.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 734-1873-0901

Tire, 20 x 10 x 8 Sq. Shldr.

Note: Horse - Not Shown

$106.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 634-04369-0662

Rim-Wheel, Rear

Note: Not Shown

$165.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 934-0255

Valve-Air, Tubeless

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0
