13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2008) Hood & Dash Assembly Parts Diagram

Range Rider Lawn Tractor

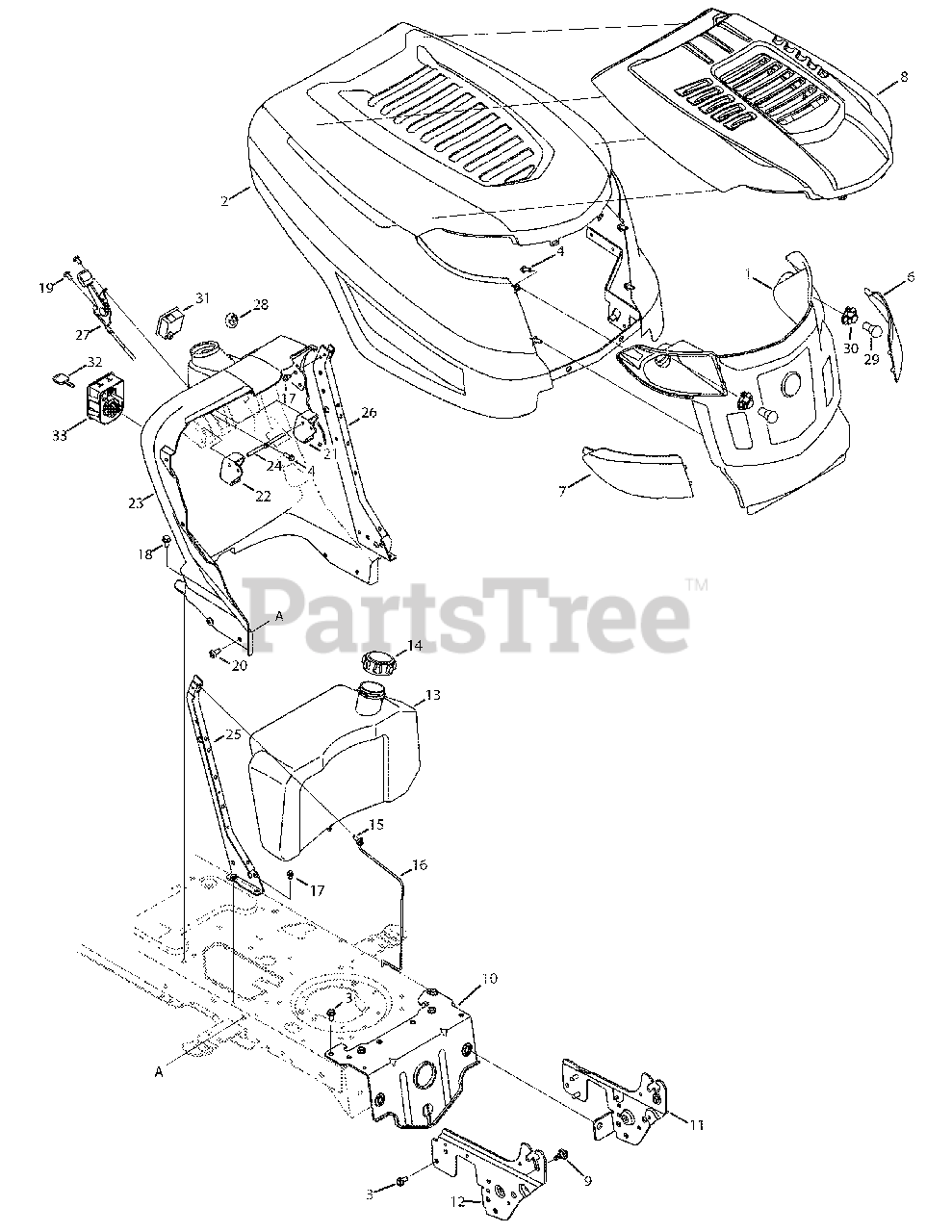

Hood & Dash Assembly Parts Diagram

  • Title

1

Troy-Bilt 631-04272

Grill Assembly

$70.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 683-04441

Hood, K-Style
(Superseded to 683-04441A)

Variations

Troy-Bilt 683-04441-0638

HOOD ASM-K STYLE - MTD/TROY-BILT RED (0638)

$356.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04441-4038

HOOD ASSY-K STYLE - DAY ORANGE (4038)

$332.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04441-0662

HOOD ASSY-K STYLE - OYSTER GRAY (0662)

$332.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04441-4033

HOOD ASM-K STYLE - FLINT MICA (4033)

$332.99

$

Usually ships in 3-6 days

0

$288.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04484

Screw, 5/16-18, 0.625

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, Qty 10

0

5

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-06095

Headlight Lens (LH)

$12.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 731-06096

Headlight Lens (RH)

$12.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 731-06194

TB Hood Scoop
(Superseded to 731-06194B)

$56.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 738-04091A

Shoulder Screw,.43 x.29

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 783-05326

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

Variations

Troy-Bilt 783-05326-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 783-05327B

Pivot Support Bracket, LH (42" Dk.)

Variations

Troy-Bilt 783-05327B-0606

BRACKET-SUPPORT PI - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05327B-0637

BRACKET-SUPPORT PI - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05327B-0638

BRACKET-SUPPORT PI - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05327B-0691

BRACKET-SUPPORT PI - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05327B-0709

SUPPORT BRACKET (LH)(MASTER CRAFT GREEN) - MASTERCRAFT GREEN (0709)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05327B-4033

BRACKET SUPT-PIVOT LH - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05327B-4062

BRACKET SUPT-PIVOT LH - COOL GRAY (4062)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 783-05417

Pivot Support Bracket, LH (50" Dk.)

Note: Not Shown

Variations

Troy-Bilt 783-05417-0637

Hood Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

12

Troy-Bilt 783-05328A

Pivot Support Bracket, RH (42" Dk.)

Variations

Troy-Bilt 783-05328A-0606

BRACKET-SUPT PIVOT - MAJESTIC ORANGE (0606)

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05328A-0637

BRACKET-SUPT PIVOT - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05328A-0638

BRACKET-SUPT PIVOT - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05328A-0691

BRACKET-SUPT PIVOT - BLACK JACK (0691)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05328A-4033

BRACKET SUPT-PIVOT LH - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05328A-4062

BRACKET SUPT-PIVOT RH - COOL GRAY (4062)

$42.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-05418

Pivot Support Bracket, RH (50" Dk.)

Note: Not Shown

Variations

Troy-Bilt 783-05418-0637

Hood Pivot Bracket, RH - POWDER BLACK (0637)

$

$

Not available

$

$

13

Troy-Bilt 751-10609

Fuel Tank, 2.5 gal.

$96.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 747-04161

Gas Tank Support Rod

$

$

Not available

17

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-0607

Screw, 5/16-18 x 0.500

$6.99

$

In Stock, Qty 9

0

19

Troy-Bilt 710-1017

Screw, 1/4-14 x.625

$8.49

$

In Stock, Qty 9

0

20

Troy-Bilt 710-1611B

Screw, 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 731-04728

Parking Brake Button

$

$

Not available

22

Troy-Bilt 731-04729

Cruise Control Button

$

$

Not available

23

Troy-Bilt 731-06166

Dash Panel w/ Manual PTO

$

$

Not available

23

Troy-Bilt 731-06168

Dash Panel w/ Electric PTO

$126.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 783-04285F

RH Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

Troy-Bilt 783-04285F-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

26

Troy-Bilt 783-04323F

LH Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

Troy-Bilt 783-04323F-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 746-04364

Throttle/Choke Cntrl. Cable

Note: (Single)

$48.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 746-04417

Throttle Cable
(Superseded to 946-04417)

Note: (Twin Cyl.)

$54.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

30

Troy-Bilt 725-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 725-04156

Systems Ind. Monitor w/ Amtr.
(Superseded to 925-04156)

$29.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 725-04036C

Service Reminder / Hour Indicator
(Superseded to 925-06170B)

Note: Not Shown

$70.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 725-1745A

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 725-1744A

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

Note: Not Shown

$17.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 725-04227B

Module, Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

Troy-Bilt 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

Note: Not Shown

$70.99

$

In Stock, only 2 left!

0

Troy-Bilt 746-1085A

Choke Control Cable
(Superseded to 946-1085A)

Note: (Twin Cyl.)Not Shown

$30.99

$

In Stock, only 1 left!

0

Troy-Bilt 629-04083B

Headlight Wire Harness
(Superseded to 929-04083B)

Note: Not Shown

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 725-04411A

Wire Harness

Note: (Manual PTO)Not Shown

$

$

Not available

Troy-Bilt 725-04404A

Wire Harness
(Superseded to 925-04404A)

Note: (Electric PTO)Not Shown

$240.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777X43039

Headlight Lens Reflector RH

Note: Not Shown

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777X43038

Headlight Lens Reflector LH

Note: Not Shown

$30.99

$

Usually ships in 3-6 days

0
