13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2008) Drive System Parts Diagram

Range Rider Lawn Tractor

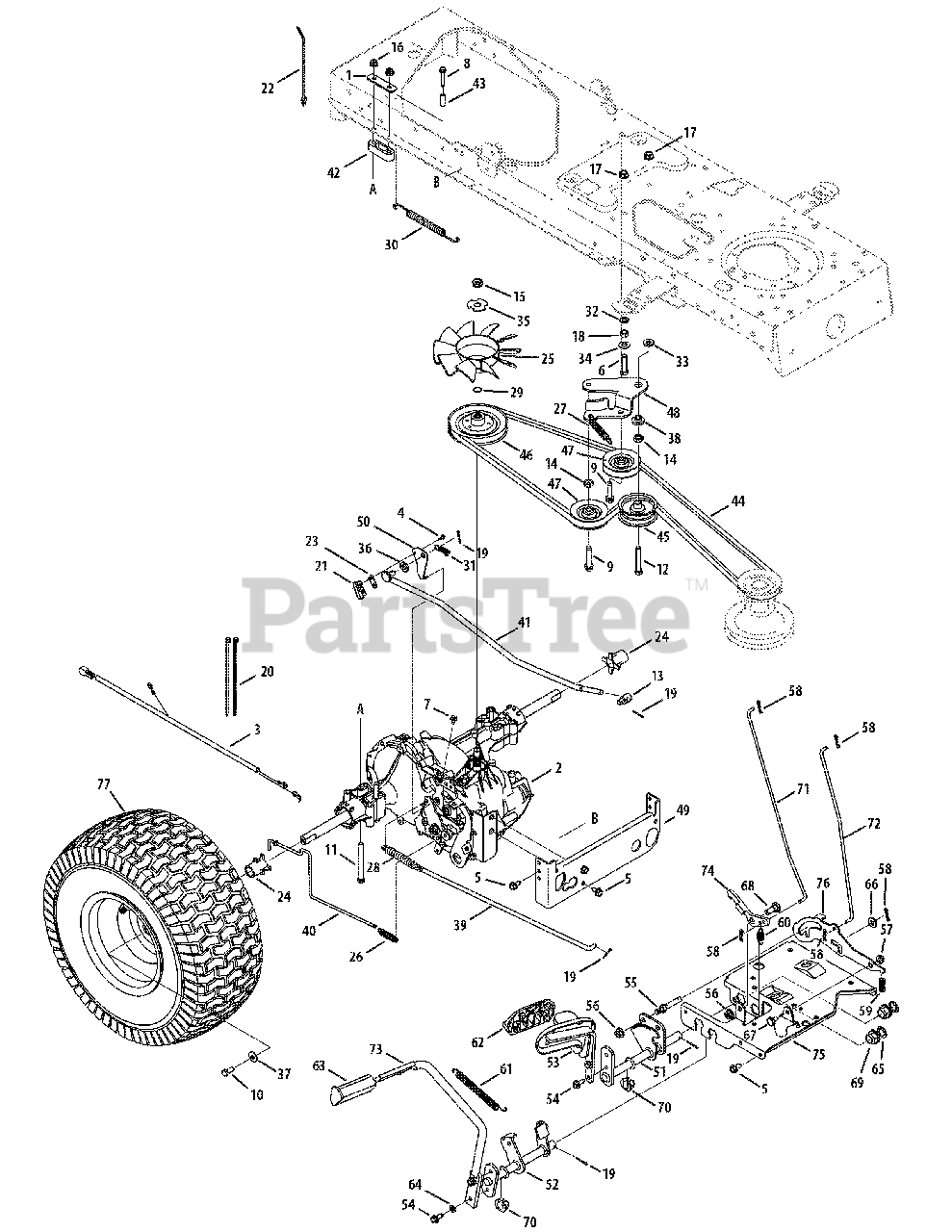

Drive System Parts Diagram

  • Title

1

Troy-Bilt 17840

Transaxle Mounting Bracket
(Superseded to 17840-0637)

Variations

Troy-Bilt 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 618-0319

Hydrostatic Transmission, 0510
(Superseded to 918-0319)

$

$

Not available

3

Troy-Bilt 629-0949B

Hydro Ground Harness Assembly

$43.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0227

Screw, #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04484

Self-Tap Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0520

Hex Head Screw, 3/8-16 x 1.50 Gr5

$4.49

$

In Stock, Qty 6

0

7

Troy-Bilt 710-0653

Self-Tap Screw, 1/4-20 x 0.375

$4.49

$

In Stock, Qty 8

0

8

Troy-Bilt 710-0778

Self-Tap Screw, 1/4-20 x 1.500

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-1007

Sems Self-Tap Screw, 3/8-16 x 1.500

$6.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 710-0627

Hex Head Screw, 5/16-24, .750 x Gr5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1266

Hex Head Screw, 5/16-18 x 3.50 Gr5

$9.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 710-3011

Hex Head Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 711-0832

Ferrule, 3/8-24 x .375
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 712-0240

Jam Nut, 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-0346

Flange Jam Nut, 1/2-20 Gr5

$4.99

$

In Stock, Qty 6

0

16

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18 Grf

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16 Grf
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-3017

Hex Nut, 3/8-16 Gr5

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 714-0111

Cotter Pin, 3/32 1.0

$4.99

$

In Stock, Qty 13

0

20

Troy-Bilt 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

22

Troy-Bilt 726-0154

Push Mount Cable Tie, 7.5 Lg
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 726-0320

Insulator Plate Nut
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

24

Troy-Bilt 731-05299

Sleeve, .765 Id X 1.500 Lg
(Superseded to 731-05299A)

$4.49

$

In Stock, only 3 left!

0

25

Troy-Bilt 731-06098

LT Hydro Fan

$19.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 732-0209

Extension Spring, .48 Od X 2.03
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 732-04323B

Extension Spring, .770 X 3.720 Lg

$12.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 732-0716D

Extension Spring, .59 Od X 4.00 Lg

$13.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 732-0994

Extension Spring, .500 Dia X 7.0 Lg

$10.99

$

In Stock, Qty 9

0

31

Troy-Bilt 732-3118

Extension Spring, 3/8 Od X 1.44 Lg

$10.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 736-0169

Lock Washer, 3/8 Regular Duty

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 736-0258

Flat Washer, .385 X 1.0 X .135

$4.49

$

In Stock, only 2 left!

0

34

Troy-Bilt 736-0300

Flat Washer, .406 X .875 X .059

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 736-04263

Lock Washer, Hydro Trans.

$6.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 736-0242

Belleville Washer, .340 X .872 X .060

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 738-0372B

Shoulder Spacer, 1.00 X .38 X .38

$9.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 747-04139

Hydro Brake Rod

$24.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 747-1149

Hydro Bypass Rod

$24.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 747-1151

Hydro Control Rod

$

$

Not available

42

Troy-Bilt 748-0334

Spacer, T-Axle .68
(Superseded to 948-0334)

$10.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 750-0566A

Spacer, .260 X .372 X 1.030 Lg

$9.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 754-04165

V-Belt, 4l X 78 Lg Poly
(Superseded to 954-04165)

$53.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 756-04224

Flat Idler Pulley, 2.75 Od

$26.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 756-04308

Input Pulley, 4.13 Dia

$31.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 756-04325

Idler Pulley, V-Type X 3.06

$24.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 783-04442

Center Double Idler Bracket

Variations

Troy-Bilt 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 783-0810B

Hydro Torque Trans. Bracket
(Superseded to 783-0810B-0637)

Variations

Troy-Bilt 783-0810B-0637

BRACKET-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

50

Troy-Bilt 783-1019B

Light Switch Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 647-0049A

Hydro Control Assembly
(Superseded to 647-0049A-0637)

Variations

Troy-Bilt 647-0049A-0637

Hydro Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

52

Troy-Bilt 647-04100

Brake Control Assembly
(Superseded to 647-04100-0637)

Variations

Troy-Bilt 647-04100-0637

Brake Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

53

Troy-Bilt 683-0267C

Hydro Control Pedal Assembly

$

$

Not available

54

Troy-Bilt 710-1260A

Self-tap Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 711-04159B

Pin, 3/8-16 X 2.68lg

$7.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16 Grf

$3.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18 Gr5

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 714-0104

Cotter Pin, .072 Dia. X 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 732-0335

Compression Spring, .405 X 1.17

$

$

Not available

60

Troy-Bilt 732-0955

Extension Spring, .50 Od X 1.41 Lg

$9.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 732-0963

Extension Spring, .50 Dia X 6.37 Lg

$9.99

$

In Stock, only 4 left!

0

62

Troy-Bilt 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 735-3049A

Brake Control Pad

$12.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 736-0119

Lock Washer, 5/16, Regular Duty
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 736-0187

Flat Washer, .64 X 1.24 X .06

$4.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 736-0262

Flat Washer, .385 X .870 X .092

$3.99

$

In Stock, Qty 20+

0

67

Troy-Bilt 738-0155

Shoulder Bolt, .435 X .160, 5/16-18
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 738-0380

Shoulder Bolt, .500 X .270, 3/8-16

$7.99

$

In Stock, only 1 left!

0

69

Troy-Bilt 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 741-3065B

Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 747-04093A

Brake Lock-Rod

$

$

Not available

72

Troy-Bilt 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 747-04641A

Brake Pedal
(Superseded to 747-04641A-0637)

Variations

Troy-Bilt 747-04641A-0637

PEDAL-BRAKE - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 748-04039C

Latch, cruise

$

$

Not available

75

Troy-Bilt 783-04612

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Troy-Bilt 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

76

Troy-Bilt 783-0663E

Hydro Lockout Bracket

$17.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 634-0104

Tire Assembly Complete 20 x 8 x 8

Variations

Troy-Bilt 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-0104-0912

WHEEL ASSY 20X8 - Dico Gray (0912)

$144.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-0104-0914

WHEEL ASSY 20X8 - Cheng Gray (0914)

$144.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0942

WHEEL ASSY 20X12 - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-4009

WHEEL ASSY 20X14 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0104-0981

WHEEL ASSEMBLY (20 x 8 x 8) - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 734-1730

Tire, 20 x 8 x 8 Sq. Shldr.

Note: Not Shown

Variations

Troy-Bilt 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

Troy-Bilt 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

Troy-Bilt 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

Troy-Bilt 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

77

Troy-Bilt 634-0177

Tire Assembly Complete 20 x 10 x 8

Note: Not Shown

Variations

Troy-Bilt 634-0177-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$473.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$473.99

$

In Stock, only 1 left!

0

Troy-Bilt 634-0177-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$357.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-0991

WHEEL ASM-COMPLETE - Carlisle White (0991)

$357.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-0994

WHEEL ASM-COMPLETE - Cheng White (0994)

$357.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-4009

WHEEL ASM-COMPLETE - TEE WHITE (4009)

$357.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0177-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$

$

Not available

$384.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 734-1873

Tire, 20 x 10 x 8 Sq. Shldr.

Note: Not Shown

Variations

Troy-Bilt 734-1873-0901

Tire, 20 X 10 X 8 - Carlisle (0901)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1873-0904

Tire, 20 X 10 X 8 - Cheng (0904)

$106.99

$

Usually ships in 3-6 days

0

$246.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 634-04369

Rim-Wheel, Rear

Note: Not Shown

Variations

Troy-Bilt 634-04369-0499

Rim Assembly, 8.0 X 7.0 - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04369-0674

RIM ASM-8.0 X 7.0 - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04369-4042

RIM ASM-8.0 X 7.0 - CRAFTSMAN GRAY (4042)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04369-0662

RIM ASM-8.0 X 7.0 - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04369-4009

RIM ASM-8.0 X 7.0 - TEE WHITE (4009)

$165.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04369-4028

RIM ASM-8.0 X 7.0 - SEARS YELLOW (4028)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 934-0255

Valve-Air, Tubeless

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0
