13AX615H730 - Huskee Lawn Tractor (2007) (Tractor Supply) Drive Assembly Parts Diagram

Lawn Tractor

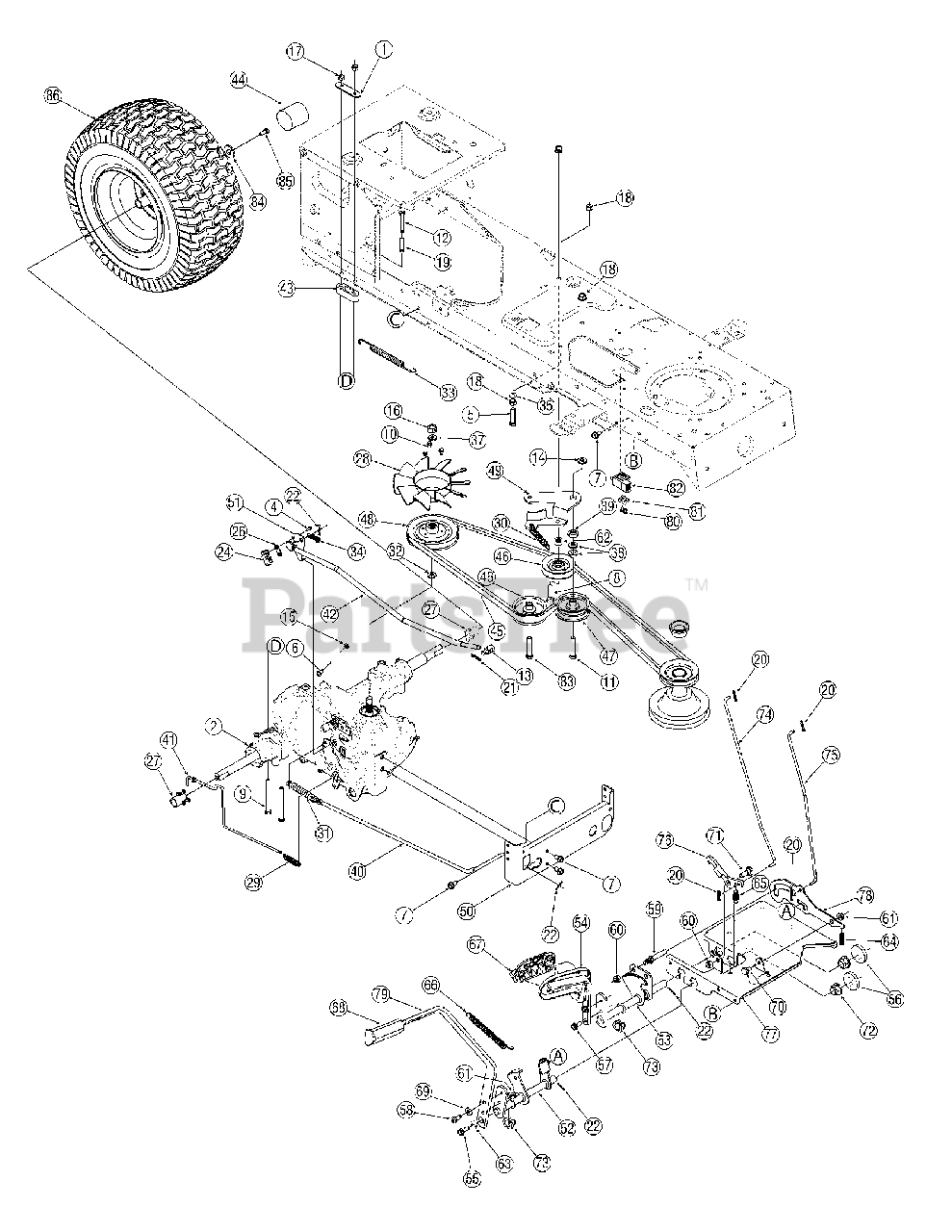

Drive Assembly Parts Diagram

  • Title

1

MTD 17840

Transmission Mounting Bracket
(Superseded to 17840-0637)

Variations

MTD 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

2

MTD 618-0319

Hydrostatic Transmission
(Superseded to 918-0319)

$

$

Not available

3

MTD 629-0949A

Harness Assembly
(Superseded to 629-0949B)

$43.99

$

Usually ships in 3-6 days

0

4

MTD 710-0227

AB Screw #8-18 x 0.375

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0520

Hex Bolt 3/8-16 x 1.5

$4.49

$

In Stock, Qty 6

0

6

MTD 710-0653

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 8

0

7

MTD 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0502A

TT Sems Screw 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

9

MTD 710-1266

Hex Bolt 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

10

MTD 710-3007

Carriage Screw

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3011

Hex Bolt 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

12

MTD 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, only 1 left!

0

13

MTD 711-0832

Ferrule
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

14

MTD 736-0258

Flat Washer,.385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

15

MTD 712-0291

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

16

MTD 712-3066

Hex Nut, 1/2-20
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

17

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

18

MTD 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

MTD 750-0566A

Spacer,.260 x.372 x 1.030 Lg

$9.99

$

In Stock, only 1 left!

0

20

MTD 712-3017

Flanged Lock Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

21

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

22

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

23

MTD 725-0157

Cable Tie

Note: not shown

$3.99

$

In Stock, Qty 20+

0

24

MTD 725-1644

Switch

$9.99

$

In Stock, Qty 11

0

25

MTD 726-0154

Cable Tie
(Superseded to 926-0154)

Note: not shown

$6.49

$

Usually ships in 3-6 days

0

26

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

27

MTD 731-05299

Sleve, 0.765 x 1.5
(Superseded to 731-05299A)

$4.49

$

In Stock, only 3 left!

0

28

MTD 731-1449A

Blade Fan
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 9

0

29

MTD 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

30

MTD 732-04323B

Extension Spring

$12.99

$

In Stock, only 1 left!

0

31

MTD 732-0716

Extension Spring
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

32

MTD 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

33

MTD 732-0994

Extension Spring

$10.99

$

In Stock, Qty 9

0

34

MTD 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

35

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

36

MTD 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0921

Lock Washer

$4.49

$

In Stock, Qty 6

0

38

MTD 736-3010

Flat Washer

$4.99

$

In Stock, only 1 left!

0

39

MTD 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 20+

0

40

MTD 747-04139

Brake Rod

$24.99

$

In Stock, only 1 left!

0

41

MTD 747-1149

Bypass Rod

$24.99

$

In Stock, only 1 left!

0

42

MTD 747-1151

Control Rod

$

$

Not available

43

MTD 748-0334

Transaxle Spacer
(Superseded to 948-0334)

$10.99

$

In Stock, only 1 left!

0

44

MTD 731-05674

Hub Cap

$5.49

$

In Stock, Qty 20+

0

45

MTD 754-0461

V Belt, A x 78" Lg
(Superseded to 954-0461)

$59.99

$

In Stock, Qty 20+

0

46

MTD 756-04209

Idler Pulley

$22.99

$

In Stock, Qty 20+

0

47

MTD 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

48

MTD 756-04111

Input Pulley

$50.99

$

In Stock, only 2 left!

0

49

MTD 783-04442

Idler Bracket

Variations

MTD 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

MTD 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

50

MTD 783-0810B

Torq Bracket
(Superseded to 783-0810B-0637)

Variations

MTD 783-0810B-0637

BRACKET-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 783-1019B

Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

52

MTD 647-04100

Brake Control Assembly
(Superseded to 647-04100-0637)

Variations

MTD 647-04100-0637

Brake Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 647-0049A

Hydrostatic Control Assembly
(Superseded to 647-0049A-0637)

Variations

MTD 647-0049A-0637

Hydro Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 683-0267C

Pedal Assembly

$

$

Not available

55

MTD 710-0650

TT Screw 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

56

MTD 736-0187

Flat Washer,.64 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

57

MTD 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

58

MTD 710-1611B

TT Screw 5/16-18 x 0.75

$6.99

$

In Stock, only 2 left!

0

59

MTD 711-04159B

Pin

$7.99

$

Usually ships in 3-6 days

0

60

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

61

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

62

MTD 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

63

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 732-0335

Compression Spring

$

$

Not available

65

MTD 732-0955

Extension Spring

$9.99

$

In Stock, only 1 left!

0

66

MTD 732-0963

Extension Spring

$9.99

$

In Stock, only 4 left!

0

67

MTD 735-0662

Control Pedal

$11.99

$

Usually ships in 3-6 days

0

68

MTD 735-3049A

Brake Control Pedal

$12.99

$

In Stock, only 1 left!

0

69

MTD 736-3008

Flat Washer
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

70

MTD 738-0155

Shoulder Screw
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

71

MTD 738-0380

Shoulder Screw

$7.99

$

In Stock, only 1 left!

0

72

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

73

MTD 741-3065B

Hex Flange Bearing

$8.49

$

In Stock, Qty 11

0

74

MTD 747-04093A

Brake Lock Control Rod

$

$

Not available

75

MTD 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

76

MTD 748-04039C

Cruise Latch

$

$

Not available

77

MTD 783-04612

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

78

MTD 783-0663E

Hydro Lockout Bracket

$17.99

$

Usually ships in 3-6 days

0

79

MTD 747-04521

Brake Pedal
(Superseded to 753-05606)

Variations

MTD 747-04521-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

MTD 747-04521-0638

Service Kit - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 747-04521-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

MTD 747-04521-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

MTD 747-04521-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

MTD 747-04521-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

MTD 747-04521-4008

PEDAL - WINE RED (4008)

$

$

Not available

$

$

80

MTD 710-0224

Screw, #10-16 x.500
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

81

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

82

MTD 725-04039

Interlock Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

83

MTD 710-1007

Screw, 3/8-16 x 1.50

$6.49

$

In Stock, only 1 left!

0

84

MTD 736-0242

Bell Washer,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

85

MTD 710-0627

Screw, 5/16-24 x.750

$4.49

$

In Stock, Qty 20+

0

86

MTD 634-0104

Wheel Complete, 20 x 8 x 8

Variations

MTD 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0912

WHEEL ASSY 20X8 - Dico Gray (0912)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0914

WHEEL ASSY 20X8 - Cheng Gray (0914)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0942

WHEEL ASSY 20X12 - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4009

WHEEL ASSY 20X14 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

86

MTD 734-1730

Tire Only, 20 x 8 x 8

Note: not shown

Variations

MTD 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

86

MTD 634-0070

Rim Only
(Superseded to 634-04369)

Note: not shown

Variations

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

86

MTD 734-0255

Tubeless Air Valve
(Superseded to 934-0255)

Note: not shown

$4.49

$

In Stock, Qty 20+

0

87

MTD 714-0104

Pin, Cotter

$4.49

$

In Stock, Qty 20+

0
