13AX615G055 - Yard-Man Lawn Tractor (2008) (Walmart) Mowing Deck Parts Diagram

Lawn Tractor

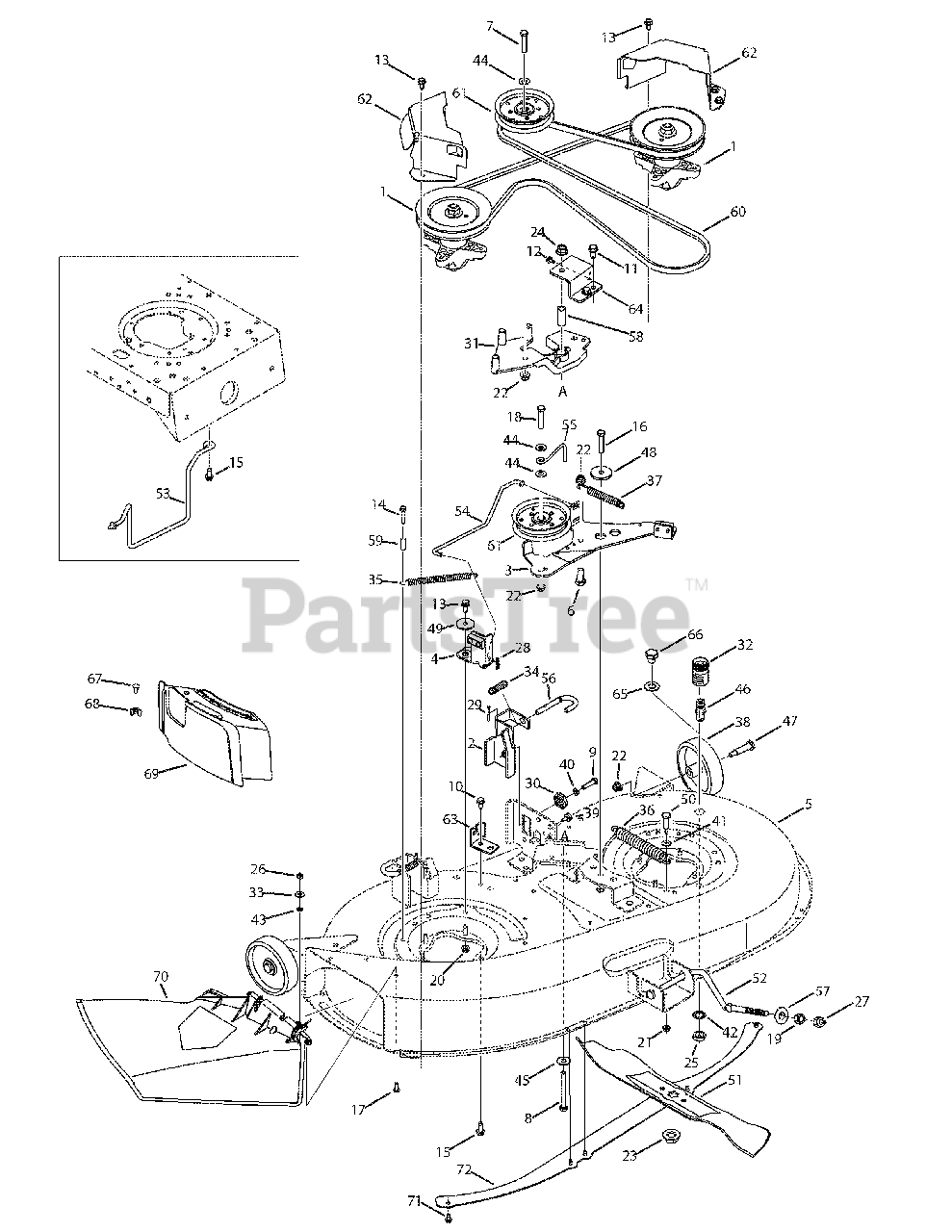

Mowing Deck Parts Diagram

  • Title

1

MTD 918-04456

Spindle Assembly Pulley 6.3 Dia
(Superseded to 918-04456B)

$128.99

$

In Stock, Qty 6

0

1

MTD 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

MTD 938-04241

Spindle Shaft:5.50 LG

Note: Not shown

$34.99

$

In Stock, only 1 left!

0

1

MTD 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

1

MTD 750-04739

Spacer: .820x 1.150 x .480

Note: Not shown

$13.99

$

In Stock, Qty 6

0

1

MTD 750-1000

Spacer: .80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

1

MTD 956-1227

Pulley:6.3 Dia

Note: Not shown

$26.99

$

In Stock, only 4 left!

0

2

MTD 683-0254B

Deck Hanger Bracket Assy. LH

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

3

MTD 683-04138B

Brake Assembly, 42" Deck
(Superseded to 683P04138C)

Variations

MTD 683-04138B-0637

Brake Assembly, 42" Deck - POWDER BLACK (0637)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-0606

Brake Assembly, 42" Deck - MAJESTIC ORANGE (0606)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-0691

Brake Assembly, 42" Deck - BLACK JACK (0691)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-4008

Brake Assembly, 42" Deck - WINE RED (4008)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-0650

Brake Assembly, 42" Deck - RED METALLIC (0650)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-0665

Brake Assembly, 42" Deck - YARDMAN GREEN (0665)

$117.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

4

MTD 683-04167

Brake Assembly, 42" Deck
(Superseded to 983-04167)

Variations

MTD 683-04167-0637

Deck Brake Assembly, 42" - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

MTD 683-04167-0665

Deck Brake Assembly, 42" - YARDMAN GREEN (0665)

$47.99

$

In Stock, only 2 left!

0

$47.99

$

In Stock, only 2 left!

0

5

MTD 683-04261

Deck Assembly 42" W/Whl Brkt.
(Superseded to 983-04261)

Variations

MTD 683-04261-0606

DECK ASM:42" W/WHEEL BRKTS - MAJESTIC ORANGE (0606)

$667.99

$

Usually ships in 3-6 days

0

MTD 683-04261-0637

DECK ASM:42" W/WHEEL BRKTS - POWDER BLACK (0637)

$667.99

$

Usually ships in 3-6 days

0

MTD 683-04261-0638

DECK ASM:42" W/WHEEL BRKTS - MTD/TROY-BILT RED (0638)

$667.99

$

Usually ships in 3-6 days

0

MTD 683-04261-0665

DECK ASM:42" W/WHEEL BRKTS - YARDMAN GREEN (0665)

$667.99

$

Usually ships in 3-6 days

0

MTD 683-04261-0668

DECK ASM:42" W/WHEEL BRKTS - MOSS GREEN (0668)

$667.99

$

Usually ships in 3-6 days

0

MTD 683-04261-4008

DECK ASM:42" W/WHEEL BRKTS - WINE RED (4008)

$667.99

$

Usually ships in 3-6 days

0

MTD 683-04261-0650

DECK ASM:42" W/WHEEL BRKTS - RED METALLIC (0650)

$667.99

$

Usually ships in 3-6 days

0

MTD 683-04261-0691

DECK ASM:42" W/WHEEL BRKTS - BLACK JACK (0691)

$667.99

$

Usually ships in 3-6 days

0

MTD 683-04261-0709

DECK ASM:42" W/WHEEL BRKTS - MASTERCRAFT GREEN (0709)

$667.99

$

Usually ships in 3-6 days

0

$540.99

$

Usually ships in 3-6 days

0

6

MTD 710-0216

Screw, 3/8-16 x .75 GR5 STD

$4.49

$

In Stock, Qty 15

0

7

MTD 710-0347

Screw, 3/8-16 x 1.75 GR5 STD

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-0510

Screw, 7/16-20 x 3.00 GR5 STD

$11.99

$

In Stock, only 1 left!

0

9

MTD 710-0528

Screw, 5/16-18 x 1.25 GR5 STD

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-04484

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0623

Screw, 3/8-16 x 0.750

$4.49

$

In Stock, only 2 left!

0

12

MTD 710-0653

Screw, 1/4-20 x 0.375

$4.49

$

In Stock, Qty 8

0

13

MTD 710-3008

Screw, 5/16-18 x 0.750

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0778

Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 1 left!

0

15

MTD 710-1260A

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-3005

Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

17

MTD 710-3015

Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-3144

Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

21

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

24

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

25

MTD 712-0641

Hex Nut, M16-1.5 DIN 936

$6.49

$

In Stock, Qty 7

0

26

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

27

MTD 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

28

MTD 714-0104

Cotter Pin, .072 Dia. x 1.13 Lg.

$4.49

$

In Stock, Qty 20+

0

29

MTD 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

30

MTD 717-04074

Deck Gear Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

31

MTD 719-04233

Idler Bracket, Cast 42" DECK
(Superseded to 719-04233-0637)

Variations

MTD 719-04233-0637

Idler Bracket, 42" - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

32

MTD 721-04041

Water Nozzle Adapter
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

33

MTD 726-0233

Push Nut, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

34

MTD 732-0306A

Compression Spring .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

35

MTD 732-04287

Extension Spring, .500 x 6.375

$15.99

$

In Stock, only 1 left!

0

36

MTD 732-0459C

Extension Spring, .94 x 6.74

$18.99

$

In Stock, only 3 left!

0

37

MTD 732-0470A

Extension Spring, .53 x 4.75
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 5

0

38

MTD 734-0973

Deck Wheel, 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

39

MTD 735-0271A

Bumper, .62 Dia. x .3

$8.99

$

In Stock, only 2 left!

0

40

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

43

MTD 736-0270

Bell Washer, .265 x.75 x .062

$3.99

$

In Stock, Qty 20+

0

44

MTD 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0322

Flat Washer, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 8

0

46

MTD 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

47

MTD 738-0373

Shoulder Bolt, .496 x 1.525
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

48

MTD 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

49

MTD 738-04166

Shoulder Spacer, .5000 X .1475

$6.49

$

In Stock, Qty 8

0

50

MTD 738-04272

Shoulder Screw, .374 x 1.16

$

$

Not available

51

MTD 742-0616A

3 in 1 Star Blade 21.23"LG
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

52

MTD 747-04269A

Adjustible Front Deck Rod,

$27.99

$

In Stock, only 4 left!

0

53

MTD 683-04443

Belt-Keeper Rod, 42"
(Superseded to 747-04857)

Variations

MTD 683-04443-0637

Belt Keeper Rod, 42" - POWDER BLACK (0637)

$22.99

$

In Stock, Qty 11

0

$22.99

$

In Stock, Qty 11

0

54

MTD 747-04501

Brake Control Ride, 42"

$

$

Not available

55

MTD 747-04530

Belt Keeper Rod, 42" IDLER

$7.49

$

In Stock, Qty 20+

0

56

MTD 747-1116

Deck Release Handle Rod

$12.99

$

In Stock, Qty 6

0

57

MTD 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

58

MTD 750-04637B

Spacer, .455 X .697 X 1.585

$

$

Not available

59

MTD 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

60

MTD 754-04045

V-Belt
(Superseded to 954-04045)

$56.99

$

In Stock, Qty 10

0

61

MTD 756-04129

Idler Pulley, 4.25"DIA
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

62

MTD 783-04327B

Belt Covers, 6.00 DIA

Variations

MTD 783-04327B-0637

Belt Cover, Black 6.00 Dia - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 20+

0

MTD 783-04327B-0606

Belt Cover, Orange 6.00 Dia - MAJESTIC ORANGE (0606)

$24.99

$

In Stock, Qty 20+

0

MTD 783-04327B-0638

Belt Cover, Red 6.00 Dia - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, Qty 20+

0

MTD 783-04327B-0650

Belt Cover, 6.00 Dia - RED METALLIC (0650)

$24.99

$

In Stock, Qty 20+

0

MTD 783-04327B-0665

COVER-BELT:6.00 DI - YARDMAN GREEN (0665)

$24.99

$

Usually ships in 3-6 days

0

MTD 783-04327B-0691

Belt Cover, Black 6.00 Dia - BLACK JACK (0691)

$24.99

$

In Stock, Qty 20+

0

MTD 783-04327B-0709

Belt Cover, 6.00 Dia - MASTERCRAFT GREEN (0709)

$24.99

$

In Stock, Qty 20+

0

MTD 783-04327B-4008

Belt Cover, 6.00 Dia - WINE RED (4008)

$24.99

$

In Stock, Qty 20+

0

MTD 783-04327B-4021

Belt Cover, 6.00 Dia - CUB YELLOW 2 (4021)

$24.99

$

In Stock, Qty 20+

0

MTD 783-04327B-0716

Belt Cover, 6.00 Dia - CUB YELLOW-99 (0716)

$

$

Not available

$23.99

$

Usually ships in 3-6 days

0

63

MTD 783-04740

Cable Deck Engage Bracket

Variations

MTD 783-04740-0637

Deck Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 2 left!

0

MTD 783-04740-0606

Deck Cable Bracket - MAJESTIC ORANGE (0606)

$10.99

$

Usually ships in 3-6 days

0

MTD 783-04740-0638

BRACKET:CABLE:DECK - MTD/TROY-BILT RED (0638)

$10.99

$

Usually ships in 3-6 days

0

MTD 783-04740-0665

BRACKET:CABLE:DECK - YARDMAN GREEN (0665)

$9.99

$

Usually ships in 3-6 days

0

MTD 783-04740-4008

BRACKET:CABLE:DECK - WINE RED (4008)

$9.99

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

64

MTD 783-05490

Support Bracket

Variations

MTD 783-05490-0637

BRACKET-SUPPORT:42 - POWDER BLACK (0637)

$

$

Not available

MTD 783-05490-4008

BRACKET-SUPPORT:42 - WINE RED (4008)

$

$

Not available

$

$

65

MTD 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

66

MTD 738-04146

Bolt Plug, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

67

MTD 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

68

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

69

MTD 731-2363

Mulch Plug

$29.99

$

In Stock, only 4 left!

0

70

MTD 731-1032B

Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

71

MTD 710-0599

Screw, Hex, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

72

MTD 783-1146A

Deck Skirt, 42"
(Superseded to 753-0884)

Variations

MTD 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0
